INSTALLATION

m
CAUTION
The appliance must only be installed by the Sime Ltd
Technical Service or by qualified professionals who
suitable protective safety equipment.
MUST wear

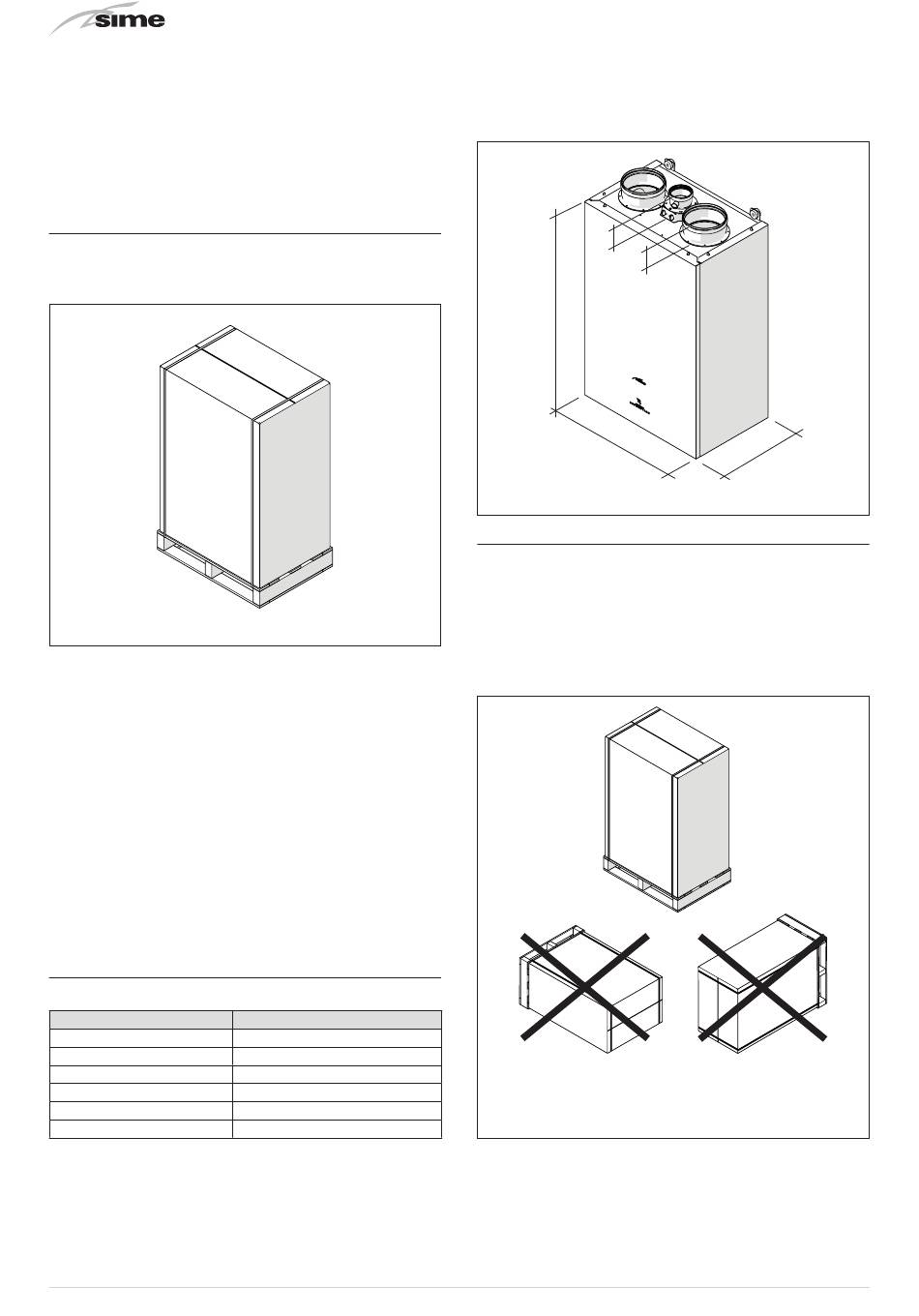

5.1

Receiving the product

is delivered in a single unit protected by
Murelle Revolution 30
cardboard packaging.
The plastic bag found inside the packaging contains the follow-
ing:
- Installation, use and maintenance manual
- Certificate of warranty
- Hydrostatic test certificate
- Hanging Bracket
- External sensor
- Main control panel (remote)
- Connection pack
- Boiler and heat pump energy labels
- Anti-vibration and spacer panels
- Paper template for boiler installation.
d
DO NOT
Do not leave packaging material around or near chil-
dren since it could be dangerous. Dispose of it as pre-
scribed by legislation in force.
5.2

Dimensions and weight

Description
W (mm)
D (mm)
H (mm)
H1 (mm)
H2 (mm)
Weight (kg)
36
Fig. 48
Murelle Revolution 30
600
391
900
82,5
71
103
H1
H2
H
L
5.3

Handling

During transportation, the boiler must be kept in a vertical po-
sition, and knocks against walls or hard surfaces should be
avoided.
d
DO NOT
Position the appliance horizontally or on its side.
YES
NO
P
Fig. 49
NO
Fig. 50
