4.2.2 Secure iPASOLINK EX/A to Antenna Attachment

1. Using four M6 Screws, secure the iPASOLINK EX/A to the Antenna

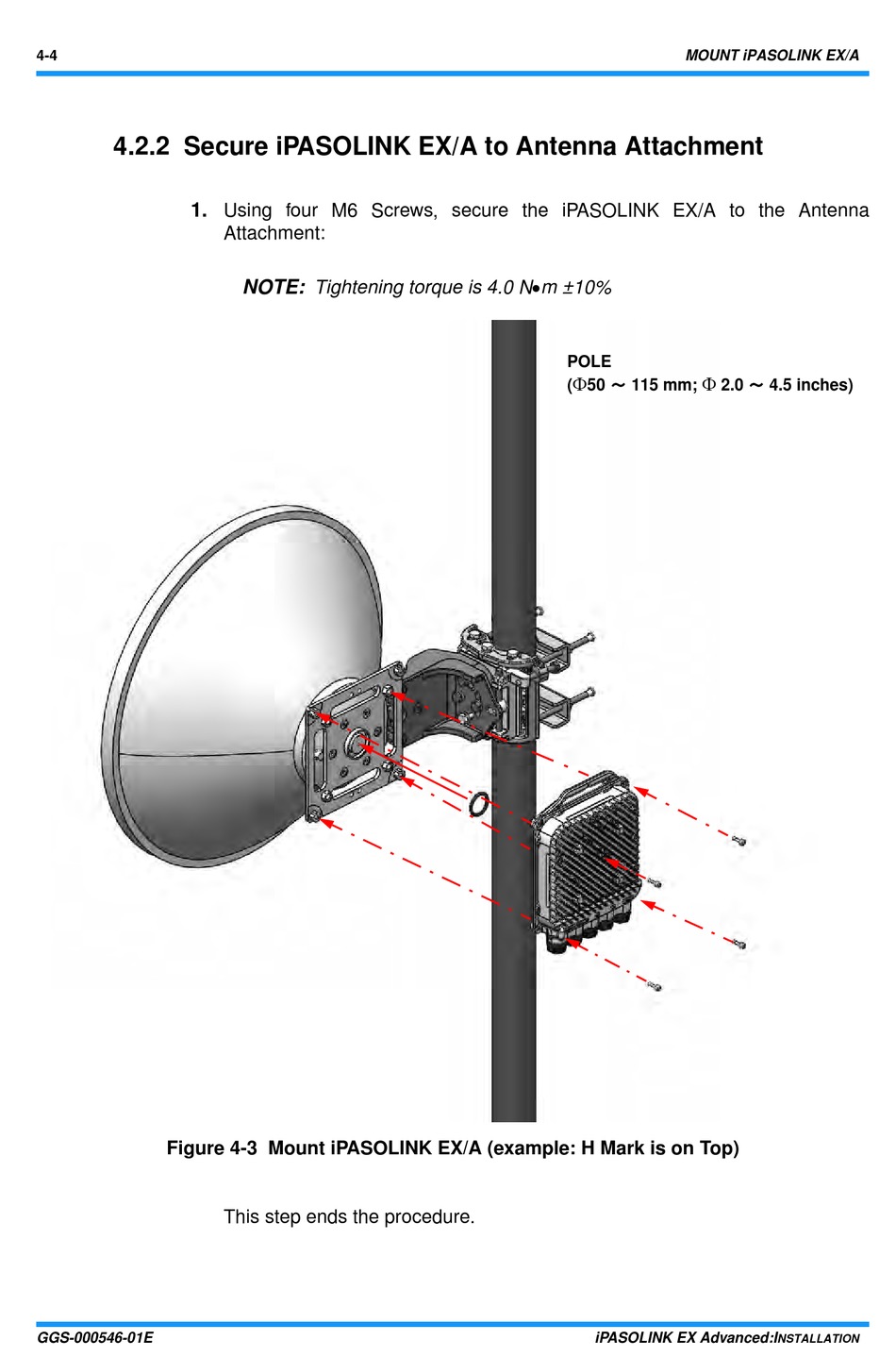

Figure 4-3 Mount iPASOLINK EX/A (example: H Mark is on Top)
GGS-000546-01E
Attachment:
NOTE: Tightening torque is 4.0 Nm ±10%
This step ends the procedure.
MOUNT iPASOLINK EX/A
POLE
 
50 ～ 115 mm; 2.0 ～ 4.5 inches)
(
iPASOLINK EX Advanced:I
NSTALLATION
