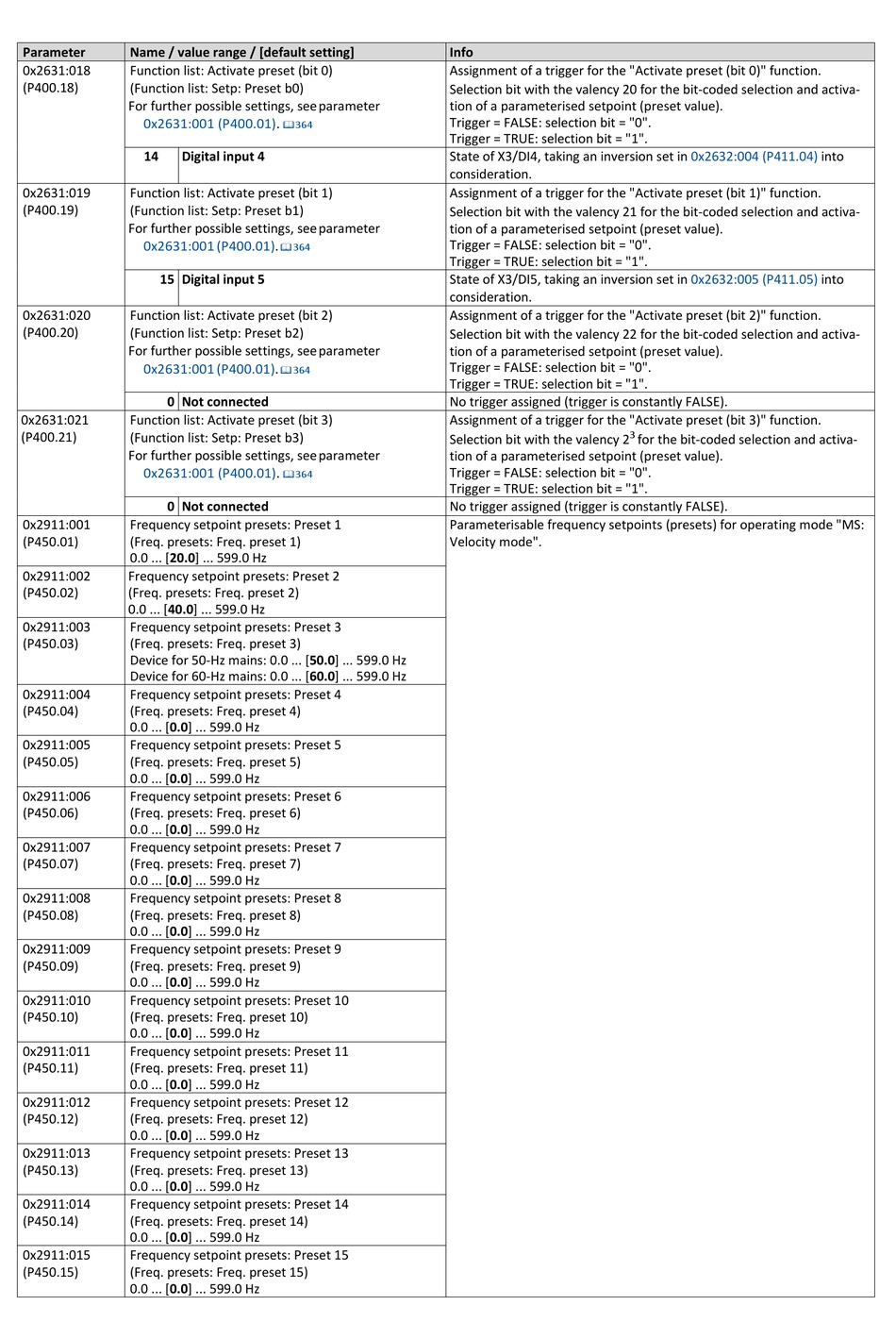

Emotron VS10 Operation Instructions Manual page 405

Parameter Name / value range / [default setting]
0x2631:018 Function list: Activate preset (bit 0)
(P400.18) (Function list: Setp: Preset b0)
For further possible settings, see parameter
0x2631:001
14 Digital input 4
0x2631:019 Function list: Activate preset (bit 1)
(P400.19) (Function list: Setp: Preset b1)
For further possible settings, see parameter
0x2631:001
15 Digital input 5
0x2631:020 Function list: Activate preset (bit 2)
(P400.20)
(Function list: Setp: Preset b2)
For further possible settings, see parameter
0x2631:001
0 Not connected
0x2631:021 Function list: Activate preset (bit 3)
(P400.21)
(Function list: Setp: Preset b3)
For further possible settings, see parameter
0x2631:001
0 Not connected
0x2911:001 Frequency setpoint presets: Preset 1
(P450.01) (Freq. presets: Freq. preset 1)
0.0 ... [20.0] ... 599.0 Hz
0x2911:002 Frequency setpoint presets: Preset 2
(P450.02) (Freq. presets: Freq. preset 2)
0.0 ... [40.0] ... 599.0 Hz
0x2911:003 Frequency setpoint presets: Preset 3
(P450.03) (Freq. presets: Freq. preset 3)
Device for 50-Hz mains: 0.0 ... [50.0] ... 599.0 Hz
Device for 60-Hz mains: 0.0 ... [60.0] ... 599.0 Hz
0x2911:004 Frequency setpoint presets: Preset 4
(P450.04) (Freq. presets: Freq. preset 4)
0.0 ... [0.0] ... 599.0 Hz
0x2911:005 Frequency setpoint presets: Preset 5
(P450.05) (Freq. presets: Freq. preset 5)
0.0 ... [0.0] ... 599.0 Hz
0x2911:006 Frequency setpoint presets: Preset 6
(P450.06) (Freq. presets: Freq. preset 6)
0.0 ... [0.0] ... 599.0 Hz
0x2911:007 Frequency setpoint presets: Preset 7
(P450.07) (Freq. presets: Freq. preset 7)
0.0 ... [0.0] ... 599.0 Hz
0x2911:008 Frequency setpoint presets: Preset 8
(P450.08) (Freq. presets: Freq. preset 8)
0.0 ... [0.0] ... 599.0 Hz
0x2911:009 Frequency setpoint presets: Preset 9
(P450.09) (Freq. presets: Freq. preset 9)
0.0 ... [0.0] ... 599.0 Hz
0x2911:010 Frequency setpoint presets: Preset 10
(P450.10) (Freq. presets: Freq. preset 10)
0.0 ... [0.0] ... 599.0 Hz
0x2911:011 Frequency setpoint presets: Preset 11
(P450.11) (Freq. presets: Freq. preset 11)
0.0 ... [0.0] ... 599.0 Hz
0x2911:012 Frequency setpoint presets: Preset 12
(P450.12) (Freq. presets: Freq. preset 12)
0.0 ... [0.0] ... 599.0 Hz
0x2911:013 Frequency setpoint presets: Preset 13
(P450.13) (Freq. presets: Freq. preset 13)
0.0 ... [0.0] ... 599.0 Hz
0x2911:014 Frequency setpoint presets: Preset 14
(P450.14) (Freq. presets: Freq. preset 14)
0.0 ... [0.0] ... 599.0 Hz
0x2911:015 Frequency setpoint presets: Preset 15
(P450.15) (Freq. presets: Freq. preset 15)
0.0 ... [0.0] ... 599.0 Hz
(P400.01).
 364
(P400.01).
 364
(P400.01).
 364
(P400.01).
 364
Info
Assignment of a trigger for the "Activate preset (bit 0)" function.
Selection bit with the valency 20 for the bit-coded selection and activa-
tion of a parameterised setpoint (preset value).
Trigger = FALSE: selection bit = "0".
Trigger = TRUE: selection bit = "1".
State of X3/DI4, taking an inversion set in
consideration.
Assignment of a trigger for the "Activate preset (bit 1)" function.
Selection bit with the valency 21 for the bit-coded selection and activa-
tion of a parameterised setpoint (preset value).
Trigger = FALSE: selection bit = "0".
Trigger = TRUE: selection bit = "1".
State of X3/DI5, taking an inversion set in
consideration.
Assignment of a trigger for the "Activate preset (bit 2)" function.
Selection bit with the valency 22 for the bit-coded selection and activa-
tion of a parameterised setpoint (preset value).
Trigger = FALSE: selection bit = "0".
Trigger = TRUE: selection bit = "1".
No trigger assigned (trigger is constantly FALSE).
Assignment of a trigger for the "Activate preset (bit 3)" function.
Selection bit with the valency 2
tion of a parameterised setpoint (preset value).
Trigger = FALSE: selection bit = "0".
Trigger = TRUE: selection bit = "1".
No trigger assigned (trigger is constantly FALSE).
Parameterisable frequency setpoints (presets) for operating mode "MS:
Velocity mode".
0x2632:004 (P411.04)
0x2632:005 (P411.05)
3
for the bit-coded selection and activa-
into
into
