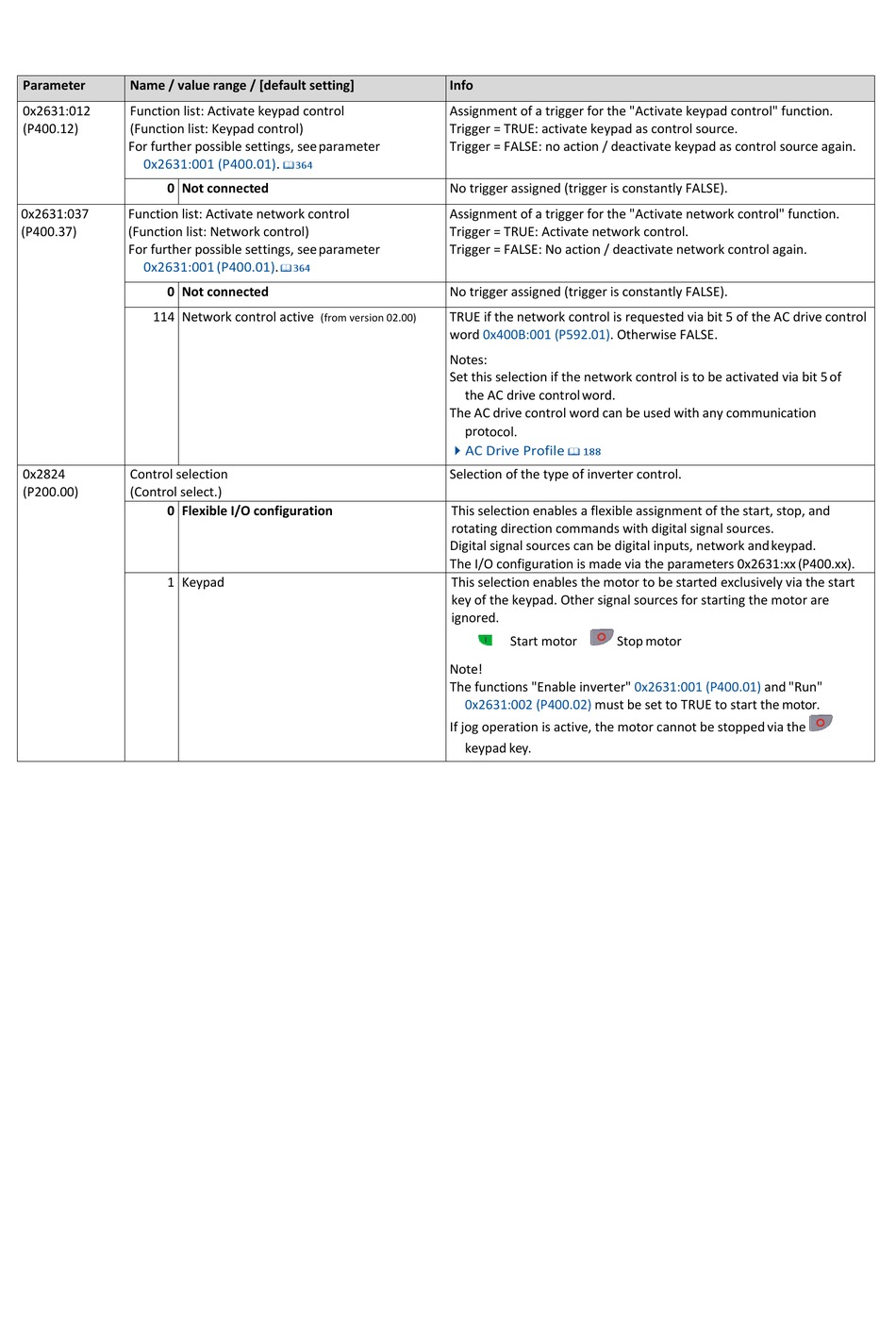

Emotron VS10 Operation Instructions Manual page 377

Parameter Name / value range / [default setting]
0x2631:012 Function list: Activate keypad control
(P400.12) (Function list: Keypad control)
For further possible settings, see parameter
0x2631:001
0 Not connected
0x2631:037 Function list: Activate network control
(P400.37) (Function list: Network control)
For further possible settings, see parameter
0x2631:001
0 Not connected
114 Network control active
0x2824 Control selection
(P200.00) (Control select.)
0 Flexible I/O configuration
1 Keypad
(P400.01).
 364
(P400.01).
 364
(from version 02.00)
Info
Assignment of a trigger for the "Activate keypad control" function.
Trigger = TRUE: activate keypad as control source.
Trigger = FALSE: no action / deactivate keypad as control source again.
No trigger assigned (trigger is constantly FALSE).
Assignment of a trigger for the "Activate network control" function.
Trigger = TRUE: Activate network control.
Trigger = FALSE: No action / deactivate network control again.
No trigger assigned (trigger is constantly FALSE).
TRUE if the network control is requested via bit 5 of the AC drive control
word 0x400B:001 (P592.01). Otherwise FALSE.
Notes:
Set this selection if the network control is to be activated via bit 5 of
the AC drive control word.
The AC drive control word can be used with any communication
pro tocol.
AC Drive Profile
 188
Selection of the type of inverter control.
This selection enables a flexible assignment of the start, stop, and
rotating direction commands with digital signal sources.
Digital signal sources can be digital inputs, network and keypad.
The I/O configuration is made via the parameters 0x2631:xx (P400.xx).
This selection enables the motor to be started exclusively via the start
key of the keypad. Other signal sources for starting the motor are
ignored.
Start motor Stop motor
Note!
The functions "Enable inverter"
0x2631:002 (P400.02) must be set to TRUE to start the motor.
If jog operation is active, the motor cannot be stopped via the
keypad key.
0x2631:001 (P400.01) and "Run"
