Settings required for the "parameter change-over" function

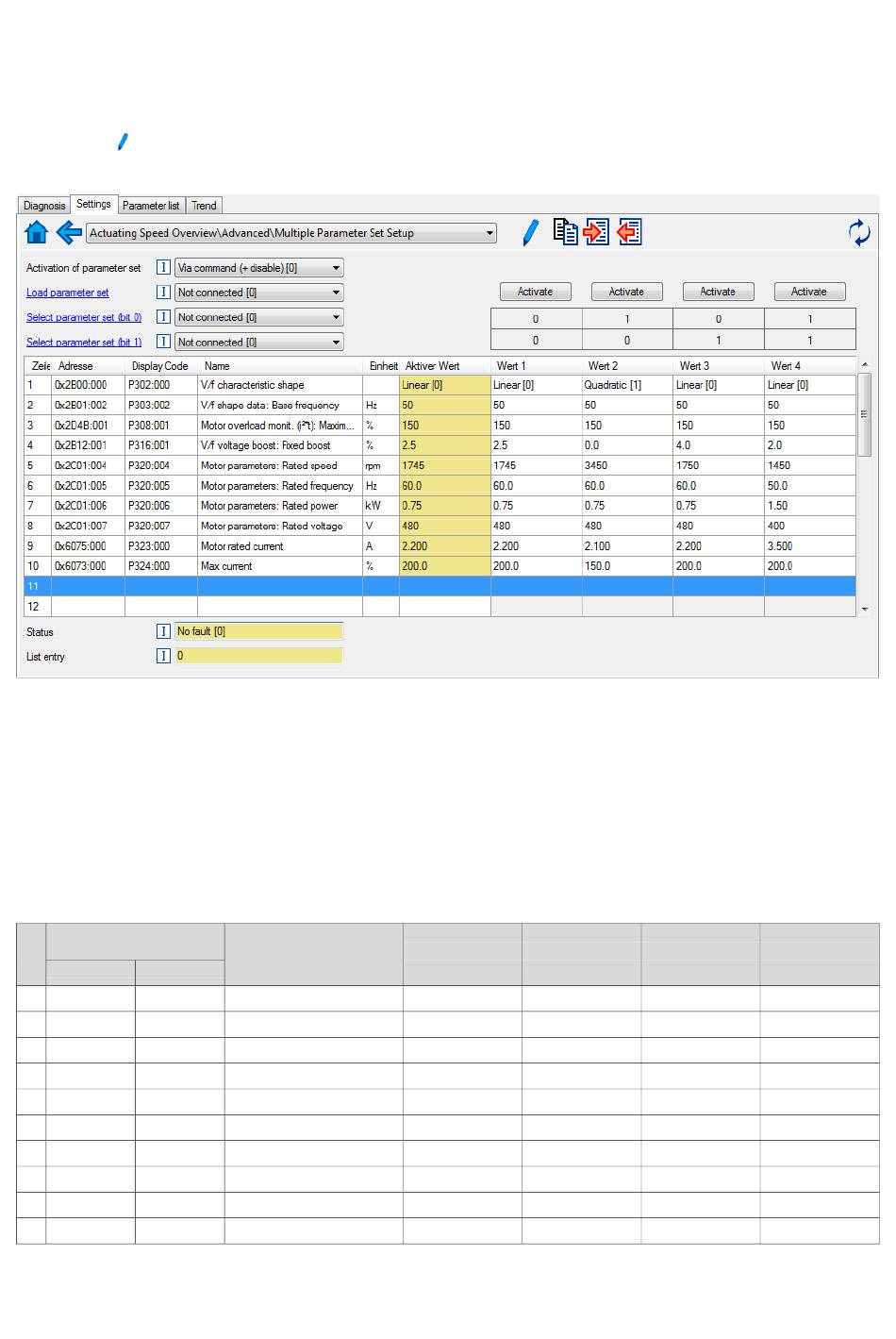

The easiest way to make the required settings is via the parameterisation dialog in the
»Emotron Easy starter«:
1. Click the button to first select the 10 relevant parameters.
2. Set values for motor M1 ... M4 in the corresponding fields:
In case of a direct setting in the parameters of the "parameter change-over" function:
• The addresses must be set with the following format: 0xiiiiss00 (iiii = index
hexadecimal, ss
= subindex hexadecimal). The keypad serves to select the desired parameter from a
list.
• The values for the motors must be set as integer values. The integer value results from
the multiplication of the actual setting value by the factor of the respective parameter.
In the , the factor for each parameter must be given.
The following table shows the required settings:
# Address
0x4041:x (PAR 750/x)
hex decimal
1 0x2B000000 721420288
2 0x2B010200 721486336
3 0x2D4B0100 759890176
4 0x2B120100 722600192
5 0x2C010400 738264064
6 0x2C010500 738264320
7 0x2C010600 738264576
8 0x2C010700 738264832
9 0x60750000 1618280448
10 0x60730000 1618149376
314
Name
V/f characteristic shape
Base frequency
Maximum utilisation [60 s]
Fixed boost
Rated speed
Rated frequency
Rated power
Rated voltage
Motor rated current
Max current
Value 1 Value 2
0x4042:x 0x4043:x
(PAR 752/x) (PAR 753/x)
0 1
60 60
150 120
25 0
1745 3450
600 600
75 75
480 480
2200 2100
2000 1500
01-6203-01R3, CG Drives & Automation
Value 3 Value 4
0x4044:x 0x4045:x
(PAR 754/x) (PAR 755/x)
0 0
60 50
150 150
40 20
1750 1450
600 500
75 150
480 400
2200 3500
2000 2000
