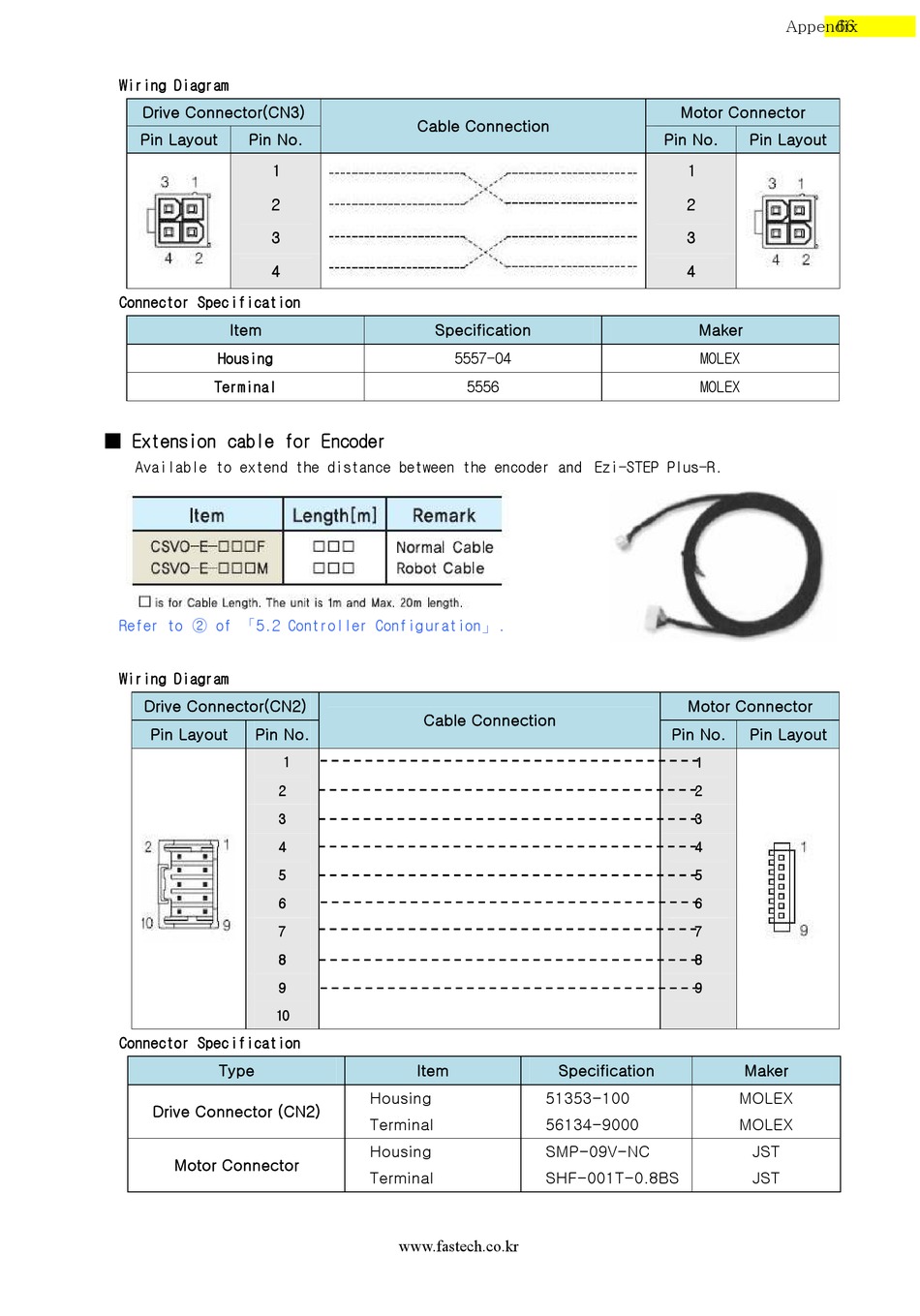

Fastech Ezi-Step Plus-R User Manual page 66

Wiring Diagram
Drive Connector(CN3)
Pin Layout Pin No.
1
2
3
4
Connector Specification
Item
Housing
Terminal
■ Extension cable for Encoder
Available to extend the distance between the encoder and Ezi-STEP Plus-R.
Refer to ② of 「5.2 Controller Config uration」.
Wiring Diagram
Drive Connector(CN2)
Pin Layout Pin No.
10
Connector Specification
Type
Drive Connector (CN2)
Motor Connector
Cable Connection
Specification
Cable Connection
1
2
3
4
5
6
7
8
9
Item
Housing
Terminal
Housing
Terminal
www.fastech.co.kr
5557-04
5556
Specification
51353-100
56134-9000
SMP-09V-NC
SHF-001T-0.8BS
Appendix 66
Motor Connector
Pin No. Pin Layout
1
2
3
4
Maker
MOLEX
MOLEX
Motor Connector
Pin No. Pin Layout
1
2
3
4
5
6
7
8
9
Maker
MOLEX
MOLEX
JST
JST
