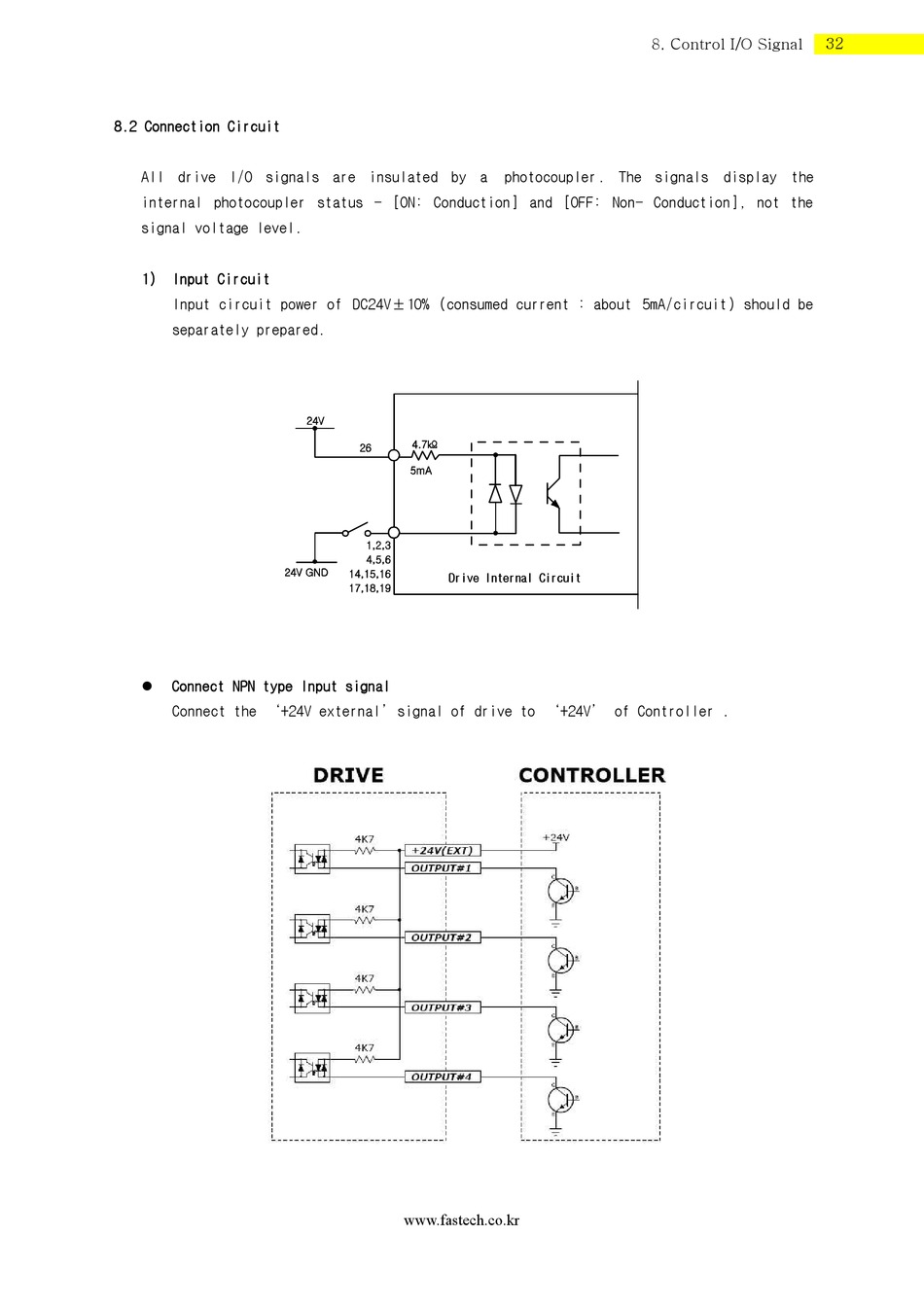

8.2 Connection Circuit
All drive I/O signals are insulated by a
internal photocoupler status - [ON: Conduction] and [OFF: Non- Conduction], not the
signal voltage level.
1) Input Circuit
Input circuit power of DC24V±10% (consumed current : about 5mA/circuit) should be
separately prepared.
Connect NPN type Input signal
l
Connect the '+24V external'signal of drive to '+24V' of Controller .
photocoupler. The signals display the
Drive Internal Circuit
www.fastech.co.kr
32
8. Control I/O Signal
