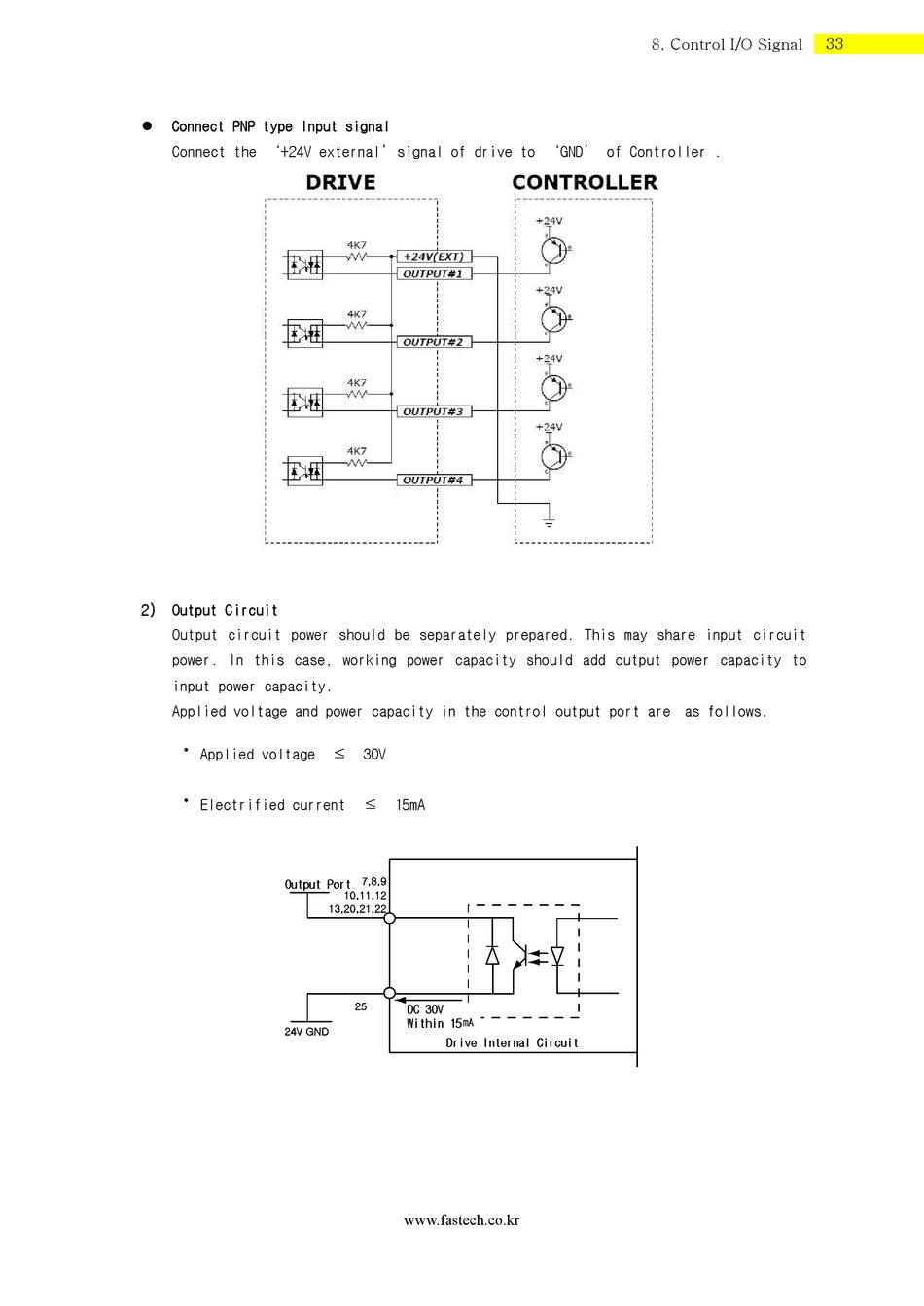

Connect PNP type Input signal
l
Connect the '+24V external'signal of drive to 'GND' of Controller .
2) Output Circuit
Output circuit power should be separately prepared. This may share input circuit
power. In this case, working power capacity should add output power capacity to
input power capacity.
Applied voltage and power capacity in the control output port are as follows.
·
Applied voltage
·
Electrified current
Output Port
≤ 30V
≤ 15mA
DC 30V
Within 15㎃
Drive Internal Circuit
www.fastech.co.kr
33
8. Control I/O Signal
