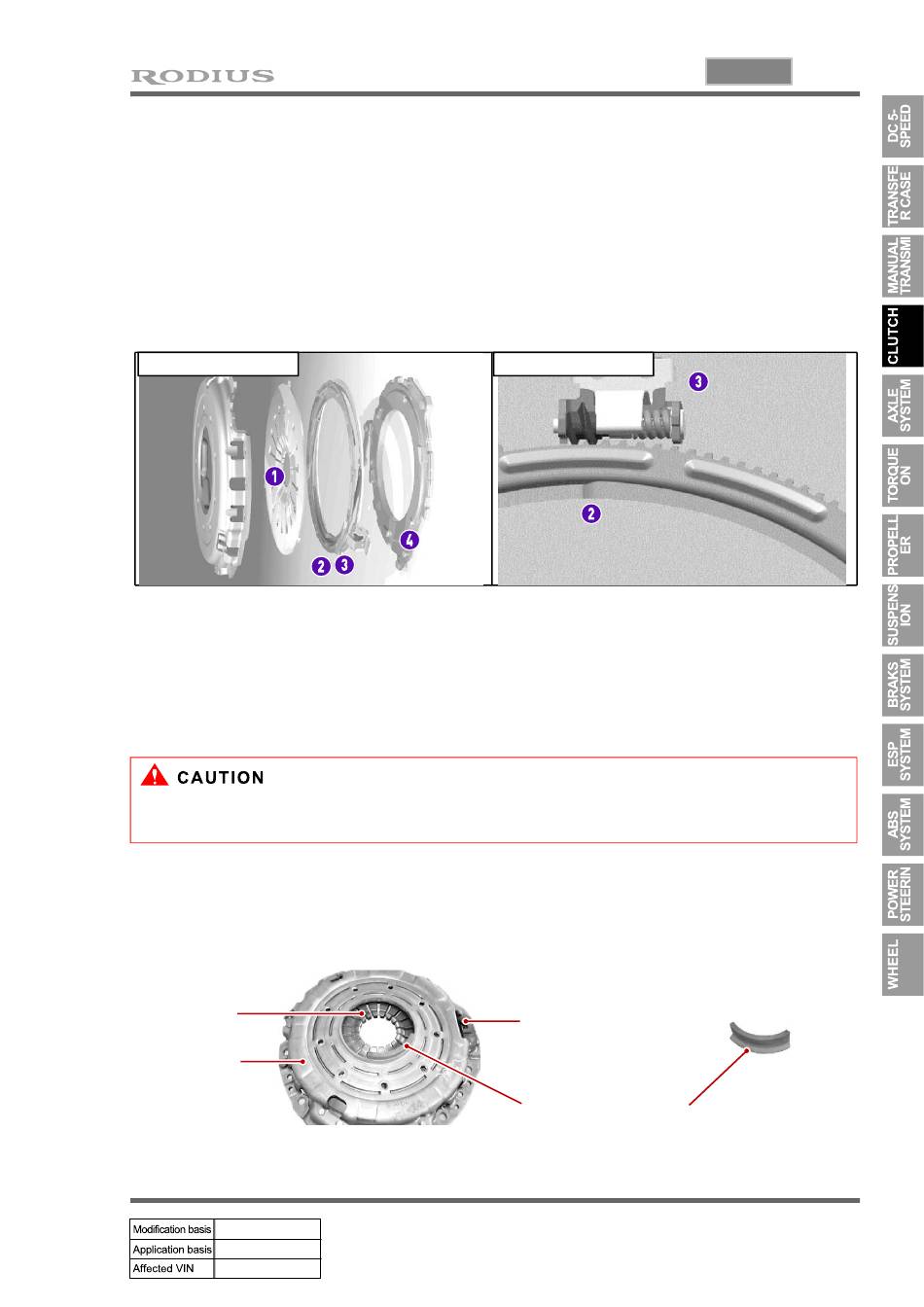

4) SAT (Self Adjusting Technology)
SAT is new clutch which adjusts the clutch free play according to the wearness of clutch disc.
▶ Operation description
Diaphram spring rotates the adjusting equipment as clutch disc is wearing and so,
pressure plate is pushed to clutch disc side at the amount of wearness.
*
Disc wear (Free play) → Diaphram spring (1) → Adjusting equipment (2, 3)
→ Pressure plate (4)
Clutch assembly
▶ Disassembly of clutch disc & cover
1) When clutch disc is replaced (Disc change)
- Replace the clutch disc and clutch cover assembly together
2) When clutch disc is not replaced (Engine disassembly, Flywheel related job, Checking
the clutch assy)
- Apply the zig set (SST) on the clutch cover set for re-usage
- When reinstall the clutch assembly without the special zig, Disc can be slip and worn
easily.
▶ Installation of special zig
1) Identify the SAT clutch with adjusting equipment around the clutch cover.
2) Adapt the zig set(4 pieces) between the clutch cover and diaphram spring around (Refer to
the picture).
Diaphram
Cover
Adjusting
equipment
Adjusting
equipmen
t
Zig for clutch removal
and installation
