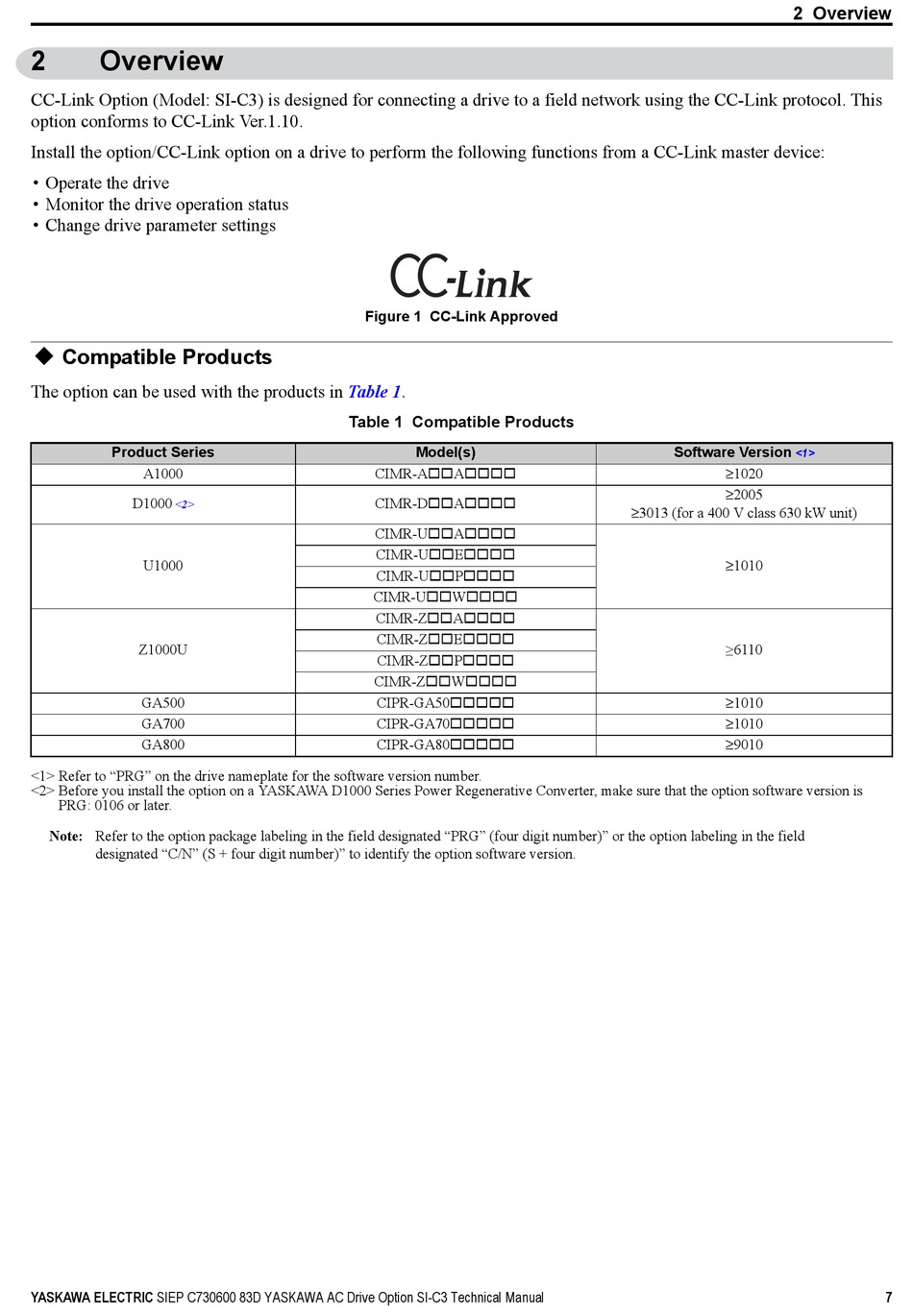

Overview

CC-Link Option (Model: SI-C3) is designed for connecting a drive to a field network using the CC-Link protocol. This
option conforms to CC-Link Ver.1.10.
Install the option/CC-Link option on a drive to perform the following functions from a CC-Link master device:
• Operate the drive
• Monitor the drive operation status
• Change drive parameter settings
Figure 1

Compatible Products
The option can be used with the products in
Product Series
A1000
D1000
<2>
U1000
Z1000U
GA500
GA700
GA800
<1> Refer to "PRG" on the drive nameplate for the software version number.
<2> Before you install the option on a YASKAWA D1000 Series Power Regenerative Converter, make sure that the option software version is
PRG: 0106 or later.
Note: Refer to the option package labeling in the field designated "PRG" (four digit number)" or the option labeling in the field
designated "C/N" (S + four digit number)" to identify the option software version.
YASKAWA ELECTRIC SIEP C730600 83D YASKAWA AC Drive Option SI-C3 Technical Manual
Figure 1 CC-Link Approved
Table 1.
Table 1 Compatible Products
Model(s)
CIMR-AA
CIMR-DA
CIMR-UA
CIMR-UE
CIMR-UP
CIMR-UW
CIMR-ZA
CIMR-ZE
CIMR-ZP
CIMR-ZW
CIPR-GA50
CIPR-GA70
CIPR-GA80
2 Overview
Software Version
<1>
≥1020
≥2005
≥3013 (for a 400 V class 630 kW unit)
≥1010
≥6110
≥1010
≥1010
≥9010
