5 Installation Procedure


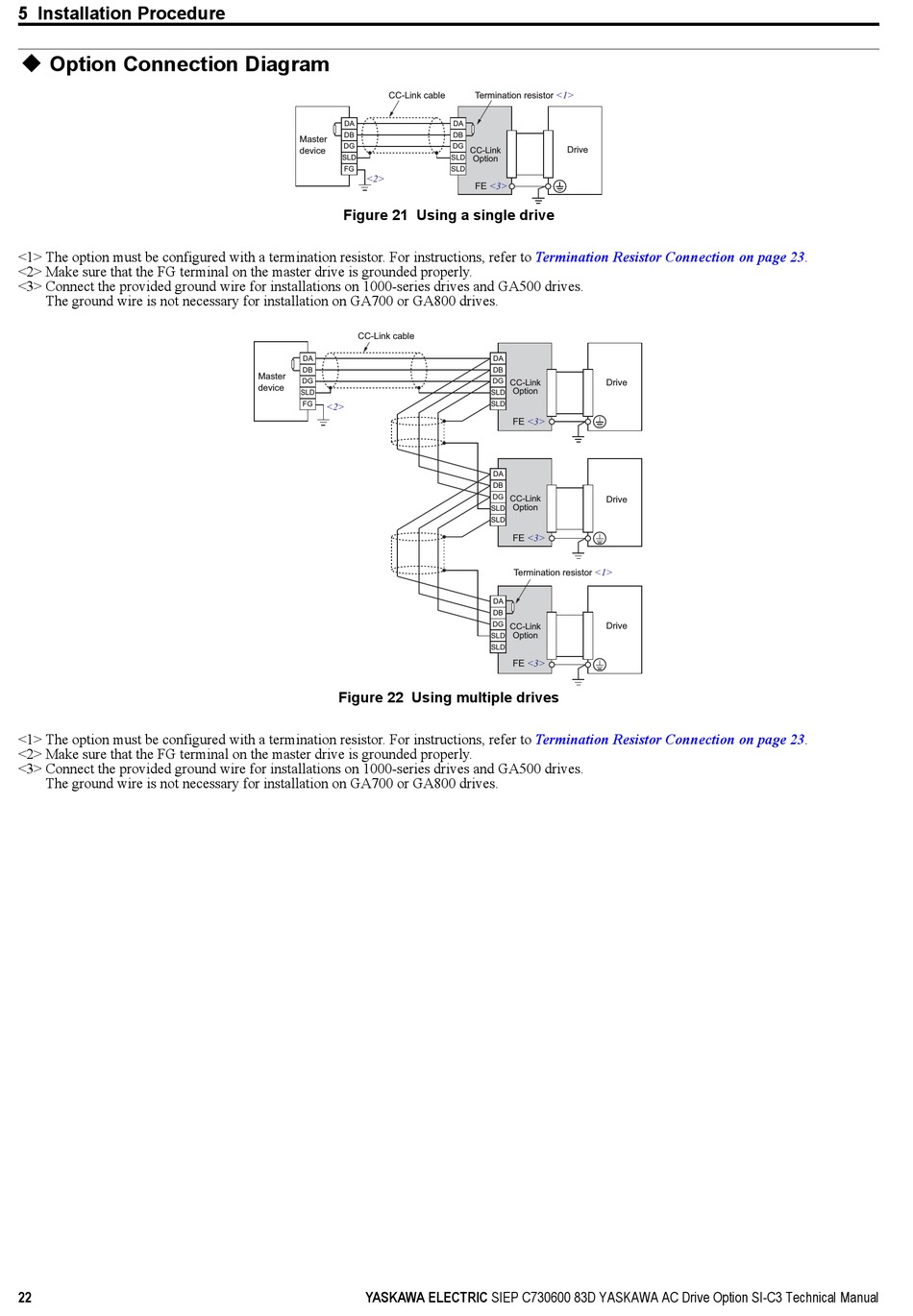

Option Connection Diagram
Figure 21
<1> The option must be configured with a termination resistor. For instructions, refer to
<2> Make sure that the FG terminal on the master drive is grounded properly.
<3> Connect the provided ground wire for installations on 1000-series drives and GA500 drives.
The ground wire is not necessary for installation on GA700 or GA800 drives.
Figure 22
<1> The option must be configured with a termination resistor. For instructions, refer to
<2> Make sure that the FG terminal on the master drive is grounded properly.
<3> Connect the provided ground wire for installations on 1000-series drives and GA500 drives.
The ground wire is not necessary for installation on GA700 or GA800 drives.
22
CC-Link cable
DA
DB
Master
DG
device
SLD
FG
<2>
Figure 21 Using a single drive
CC-Link cable
DA
DB
Master
DG
device
SLD
<2>
FG
Figure 22 Using multiple drives
YASKAWA ELECTRIC SIEP C730600 83D YASKAWA AC Drive Option SI-C3 Technical Manual
<1>
Termination resistor
DA
DB
DG
Drive
CC-Link
SLD
Option
SLD
<3>
FE
Termination Resistor Connection on page
DA
DB
DG Drive
CC-Link
Option
SLD
SLD
<3>
FE
DA
DB
DG
CC-Link Drive
Option
SLD
SLD
<3>
FE
<1>
Termination resistor
DA
DB
DG
Drive
CC-Link
Option
SLD
SLD
<3>
FE
Termination Resistor Connection on page
23.
