5 Installation Procedure

Procedure A
This section shows the procedure to install and wire the option on a 1000-series drive.
Prepare the Drive for the Option
Before you install the option on a YASKAWA D1000 Series Power Regenerative Converter, make sure that the option
software version is PRG: 0106 or later.
1. Correctly wire the drive as specified by the manual packaged with the drive.
2. Make sure that the drive functions correctly.

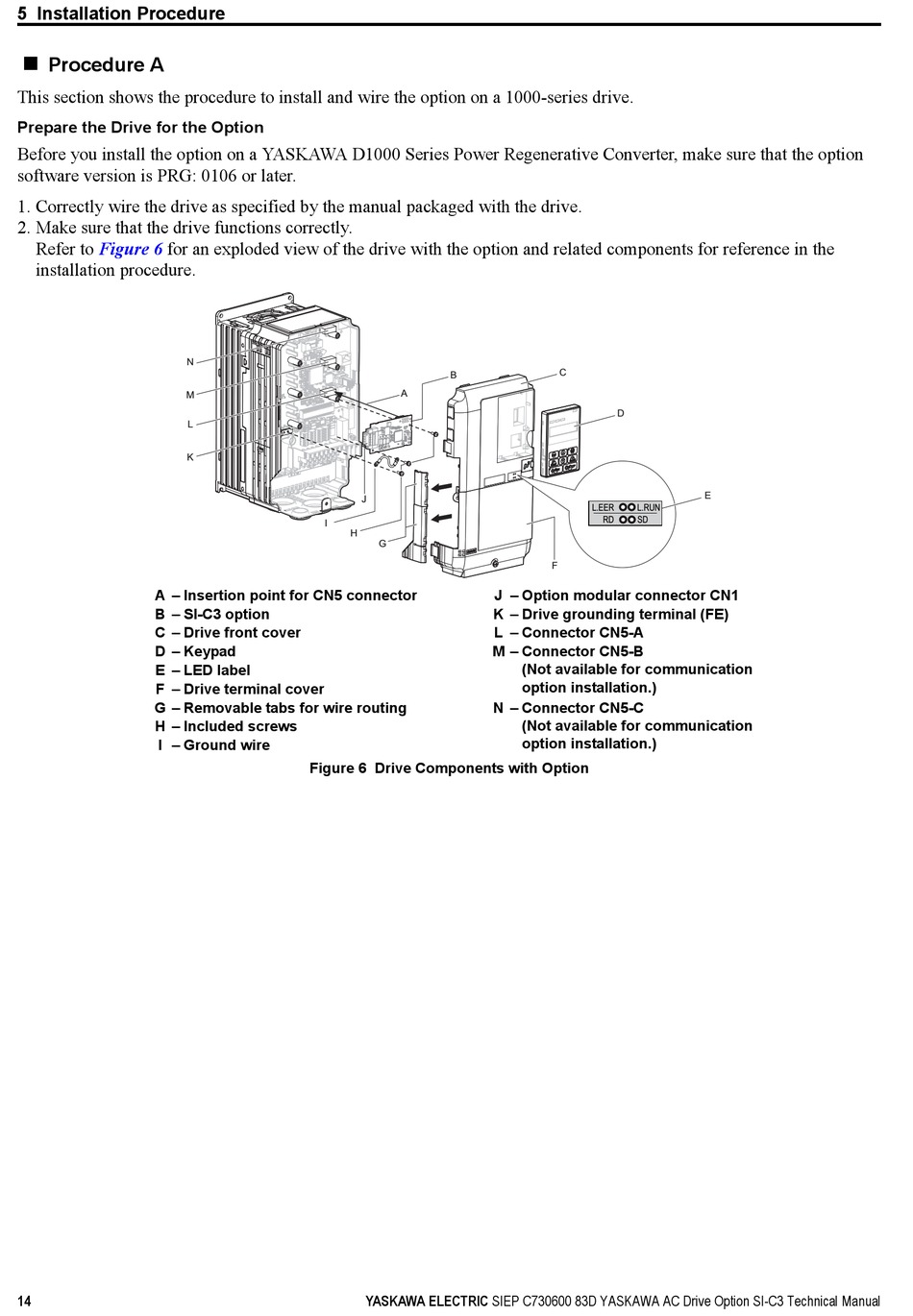

Refer to Figure 6 for an exploded view of the drive with the option and related components for reference in the
installation procedure.
Figure 6
N
M
L
K
A – Insertion point for CN5 connector
B – SI-C3 option
C – Drive front cover
D – Keypad
E – LED label
F – Drive terminal cover
G – Removable tabs for wire routing
H – Included screws
I – Ground wire
14
B
A
J
I
H
G
Figure 6 Drive Components with Option
YASKAWA ELECTRIC SIEP C730600 83D YASKAWA AC Drive Option SI-C3 Technical Manual
C
D
L.EER L.RUN
RD SD
F
J – Option modular connector CN1
K – Drive grounding terminal (FE)
L – Connector CN5-A
M – Connector CN5-B
(Not available for communication
option installation.)
N – Connector CN5-C
(Not available for communication
option installation.)
E
