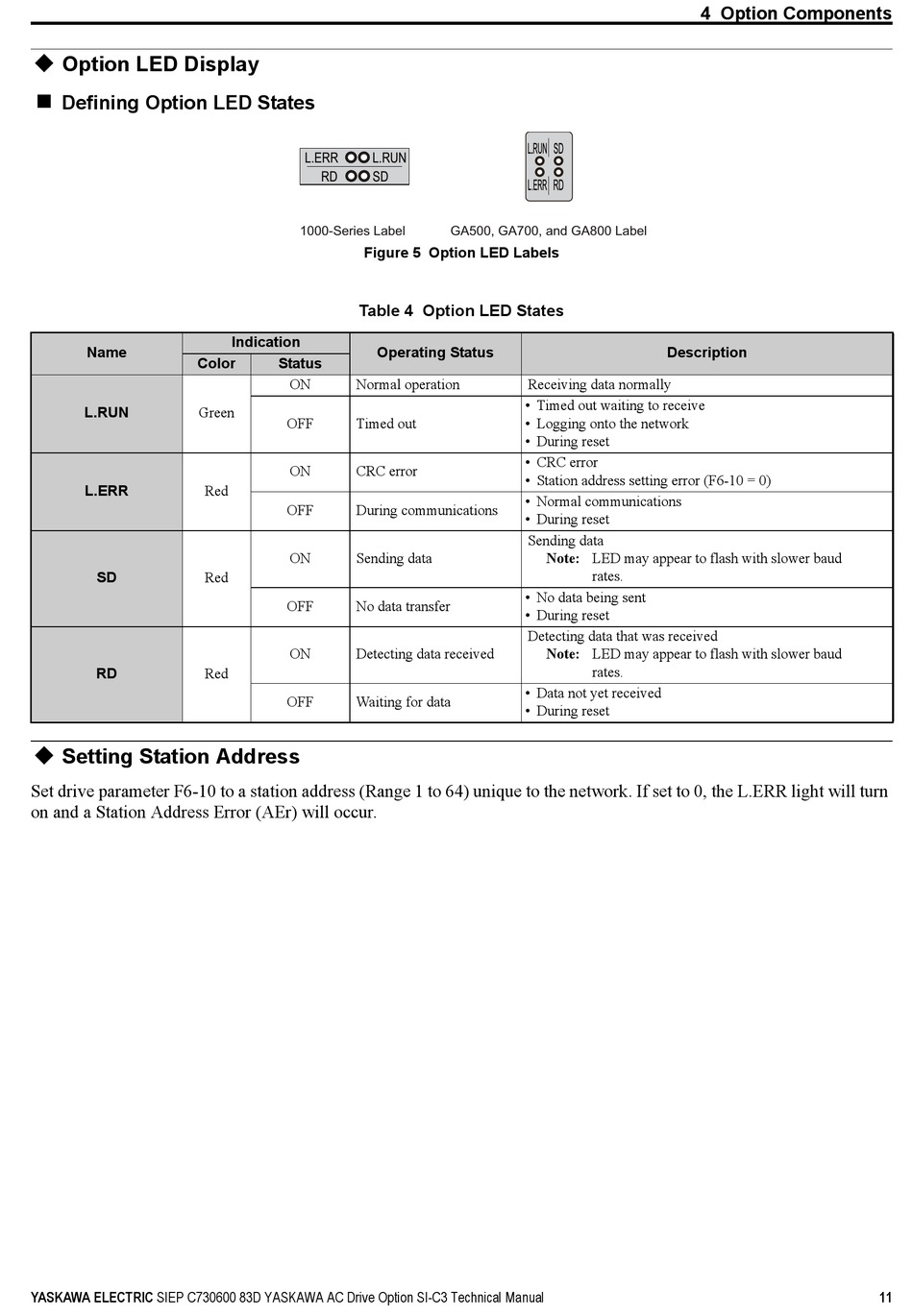

Option LED Display
Defining Option LED States
Figure 5
Name
Color
L.RUN
Green
L.ERR
SD
RD
Setting Station Address
Set drive parameter F6-10 to a station address (Range 1 to 64) unique to the network. If set to 0, the L.ERR light will turn
on and a Station Address Error (AEr) will occur.
YASKAWA ELECTRIC SIEP C730600 83D YASKAWA AC Drive Option SI-C3 Technical Manual
L.ERR
L.RUN
RD
SD
1000-Series Label
Figure 5 Option LED Labels
Table 4 Option LED States
Indication
Status
ON
Normal operation
OFF
Timed out
ON
CRC error
Red
OFF
During communications
ON
Sending data
Red
OFF
No data transfer
ON
Detecting data received
Red
OFF
Waiting for data
GA500, GA700, and GA800 Label
Operating Status
Receiving data normally
• Timed out waiting to receive
• Logging onto the network
• During reset
• CRC error
• Station address setting error (F6-10 = 0)
• Normal communications
• During reset
Sending data
Note: LED may appear to flash with slower baud
• No data being sent
• During reset
Detecting data that was received
Note: LED may appear to flash with slower baud
• Data not yet received
• During reset
4 Option Components
Description
rates.
rates.
11
