Sensor resistance charts
11
Sensor resistance charts
0.1
Fig. 67

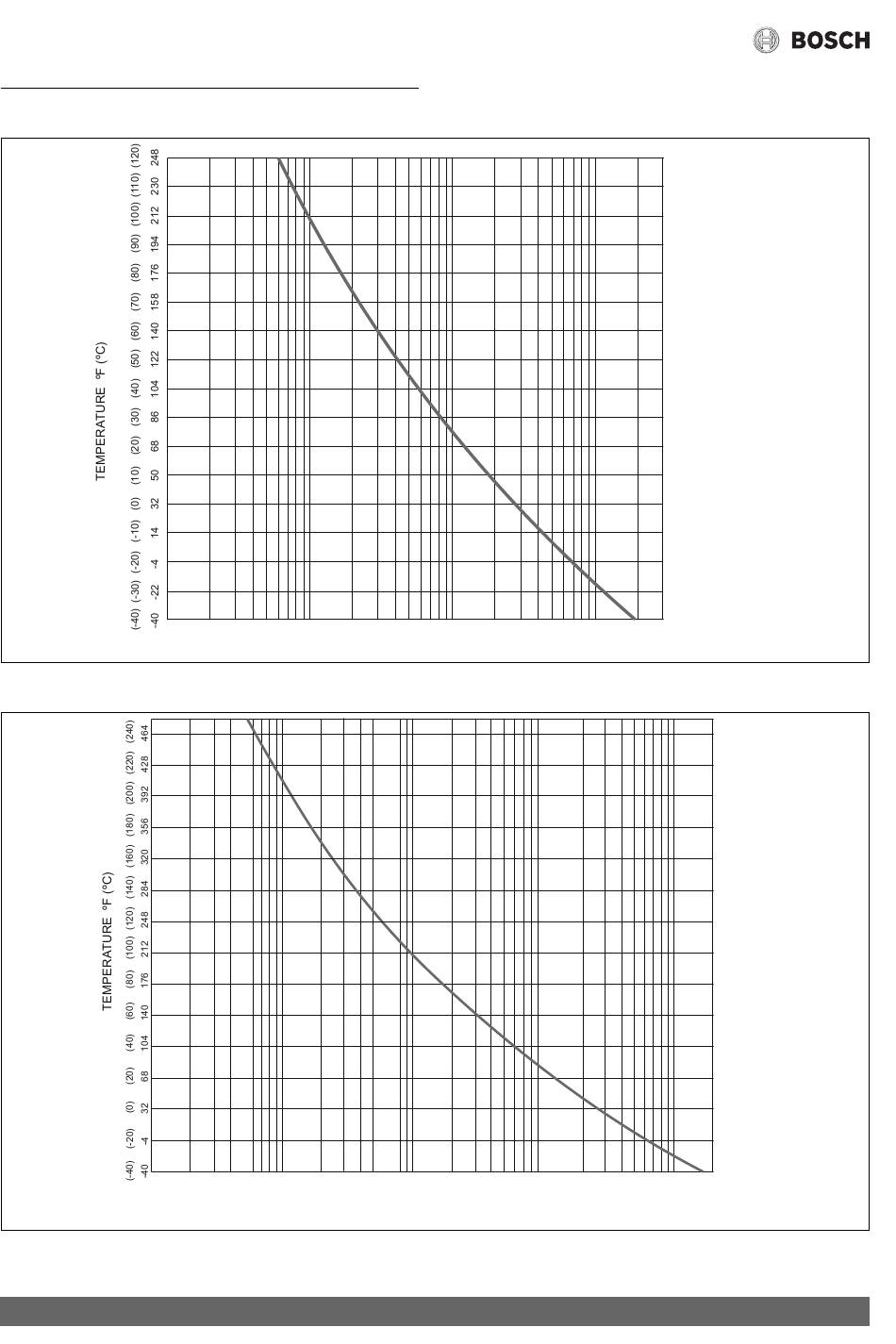

Inlet, outlet and heat exchanger water temperature sensors characteristics
0.01
Fig. 68
Flue gases and condensing unit flue gases temperature sensors characteristics
74
1
RESISTANCE (KOHM)
0.1
1
RESISTANCE (KOHM)
10
100
10
Greentherm T9900 SE/i – 6 720 813 635 (2019/03)
6720816948-40.1V
100
6720816948-41.1V
