Installation instructions

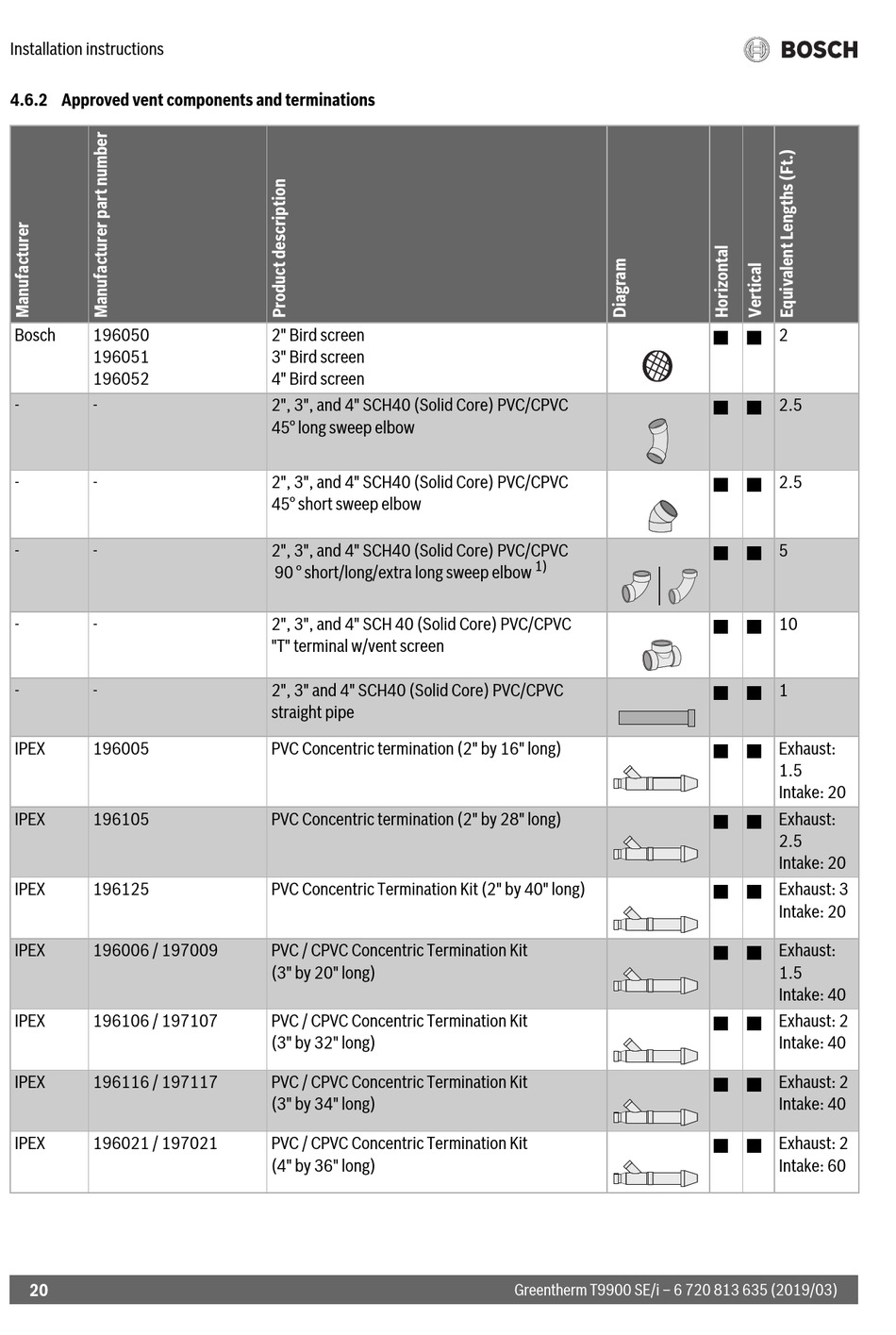

4.6.2 Approved vent components and terminations
Bosch
196050
196051
196052
-
-
-
-
-
-
-
-
-
-
IPEX
196005
IPEX
196105
IPEX
196125
IPEX
196006 / 197009
IPEX
196106 / 197107
IPEX
196116 / 197117
IPEX
196021 / 197021
20
2" Bird screen
3" Bird screen
4" Bird screen
2", 3", and 4" SCH40 (Solid Core) PVC/CPVC
45° long sweep elbow
2", 3", and 4" SCH40 (Solid Core) PVC/CPVC
45° short sweep elbow
2", 3", and 4" SCH40 (Solid Core) PVC/CPVC
90 ° short/long/extra long sweep elbow
2", 3", and 4" SCH 40 (Solid Core) PVC/CPVC
"T" terminal w/vent screen
2", 3" and 4" SCH40 (Solid Core) PVC/CPVC
straight pipe
PVC Concentric termination (2" by 16" long)
PVC Concentric termination (2" by 28" long)
PVC Concentric Termination Kit (2" by 40" long)
PVC / CPVC Concentric Termination Kit
(3" by 20" long)
PVC / CPVC Concentric Termination Kit
(3" by 32" long)
PVC / CPVC Concentric Termination Kit
(3" by 34" long)
PVC / CPVC Concentric Termination Kit
(4" by 36" long)
1)
Greentherm T9900 SE/i – 6 720 813 635 (2019/03)
h
h 2
h
h 2.5
h
h 2.5
h
h 5
h
h 10
h
h 1
h
h Exhaust:
1.5
Intake: 20
h
h Exhaust:
2.5
Intake: 20
h
h Exhaust: 3
Intake: 20
h
h Exhaust:
1.5
Intake: 40
h
h Exhaust: 2
Intake: 40
h
h Exhaust: 2
Intake: 40
h
h Exhaust: 2
Intake: 60
