Installation instructions
Duravent 810009692
M&G 810009720
810009693
810009721
Centro- ISLPT0202
therm ISLPT0303
Centro- ICRT2439
therm
Centro- ICRT3539
therm
Centro- ICTCR24
therm
Centro- ICCT3503
therm
Centro- ICWT242
therm
Centro- ICWT352
therm
Ecco 190288
Manu-
facturing
Ecco 190388
Manu-
facturing
Ecco 190295
Manufact
uring
Ecco 190395
Manufact
uring

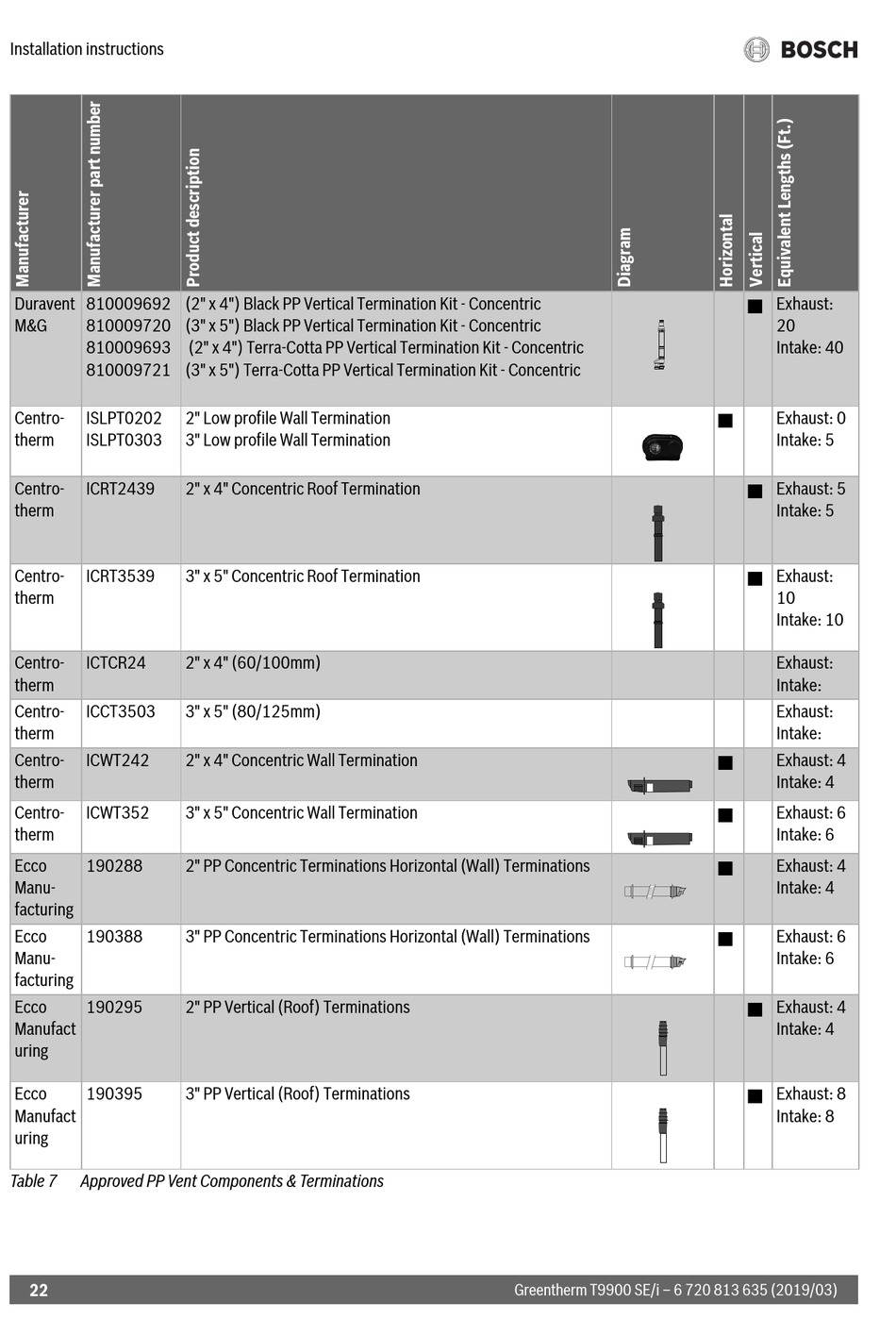

Table 7 Approved PP Vent Components & Terminations
22
(2" x 4") Black PP Vertical Termination Kit - Concentric
(3" x 5") Black PP Vertical Termination Kit - Concentric
(2" x 4") Terra-Cotta PP Vertical Termination Kit - Concentric
(3" x 5") Terra-Cotta PP Vertical Termination Kit - Concentric
2" Low profile Wall Termination
3" Low profile Wall Termination
2" x 4" Concentric Roof Termination
3" x 5" Concentric Roof Termination
2" x 4" (60/100mm)
3" x 5" (80/125mm)
2" x 4" Concentric Wall Termination
3" x 5" Concentric Wall Termination
2" PP Concentric Terminations Horizontal (Wall) Terminations
3" PP Concentric Terminations Horizontal (Wall) Terminations
2" PP Vertical (Roof) Terminations
3" PP Vertical (Roof) Terminations
