C. Connecting Vent Pipe
Reference instructions in the termination kit.
• Install the 3-inch fl exible vent pipe(s) down through the
chimney.
• Secure the exhaust fl exible vent pipe to the 3 foot section
stainless steel flexible vent pipe using the factory-
installed 3-inch collar in the stainless steel section of
pipe (see Figure 8.1).
• Secure the stainless fl exible vent pipe to the exhaust
starting collar on top of the appliance with three screws.
• Use 3 screws to attach the section of inlet air vent to
the inlet collar on the collar slide plate. See Figure 8.1.
NOTE: The collar slide plate may be removed from
appliance to aid installation.

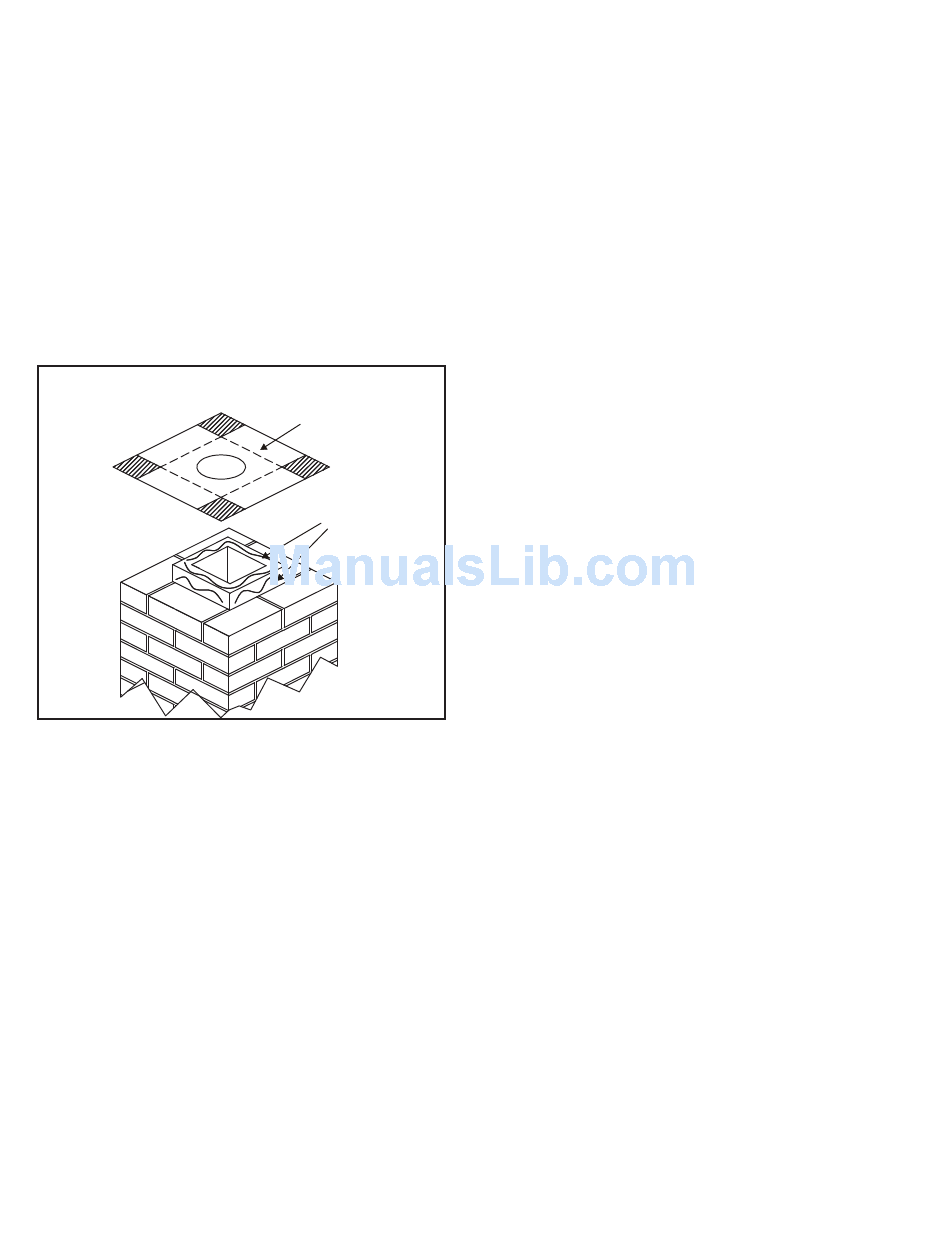

Figure 8.2
• Trim chimney top plate to minimize excess overhang or
bend over fl ue tile (see Figure 8.2).
• Place 3/8 inch bead of silicone (300ºF minimum
continuous exposure rating) on fl ue tile top.
24
CUT AND BEND
FLASHING AS NEEDED
TO FIT CHIMNEY
SEALANT
ADHESIVE
Quadra-Fire • QFI30FB-C, QFI35FB-C • 2221-901 Rev. S • 2/15
