Description of the device
Features
The LED Sphere Direct Control 100 is designed for the more demanding user:
• Power 50W
•
3 DMX Channels (Red, Green, Blue)
•
Controllable by DMX or built-in programs.
• 1170 LEDs (440x Red, 490x Green, 240x Blue)
•
Built-in Microphone
• LCD Display
• Only use Indoor
• RGB colourmixing
• Standalone Built-in Programs 1-9, Music control, Manual Control, Master-slave, DMX control
•
Fuse 2A 250V
•
DMX IN and DMX OUT.

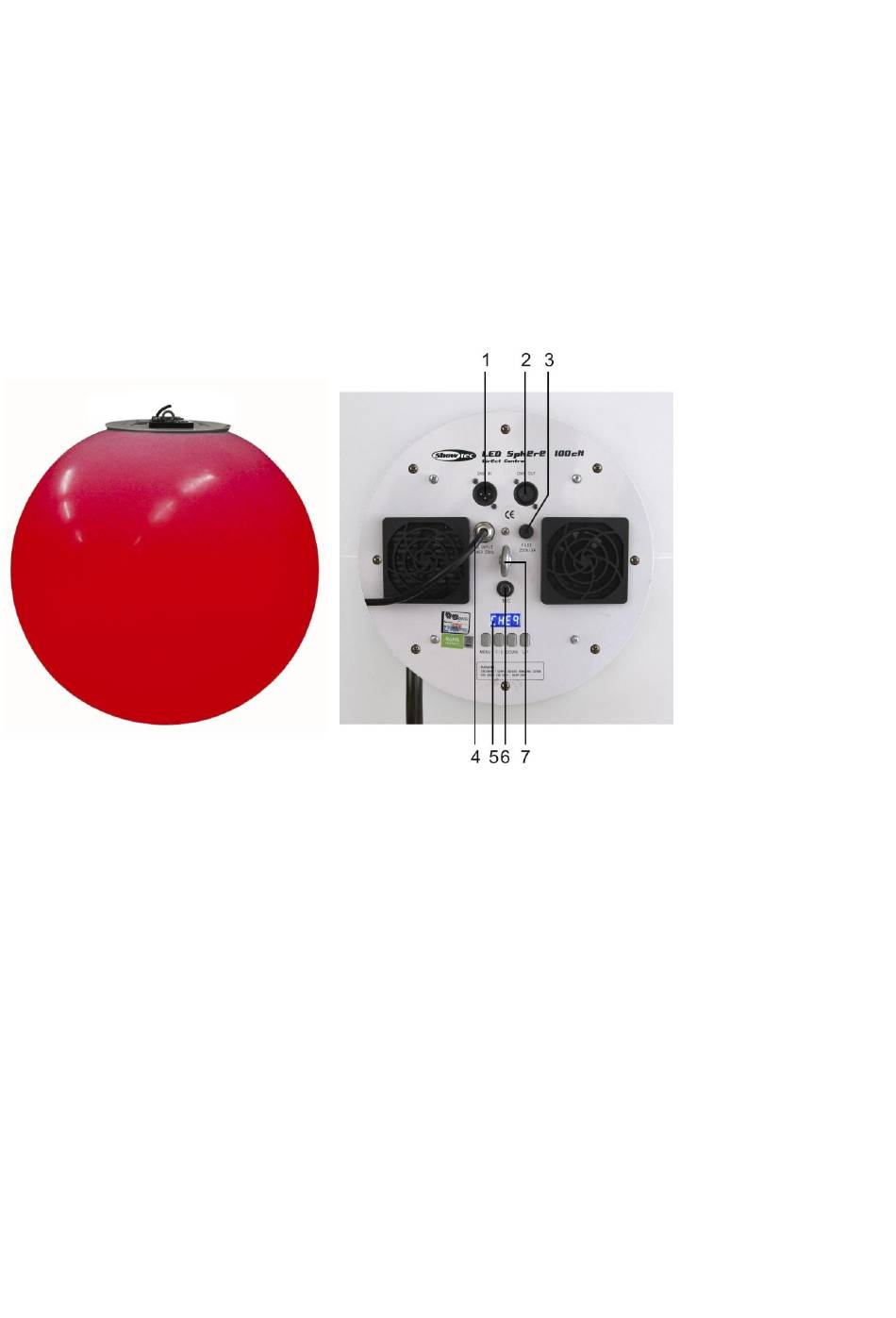

Overview
1)
DMX signal connector (IN)
2)
DMX signal connector (OUT)
3) Fuse 2A 250V
4) Power cable
5) Menu Buttons + Display
6) Microphone
7) Safety Eye
Installation
Remove all packing materials from the LED Sphere Direct Control 100. Check that all foam and plastic
padding is removed. Connect all cables.
Note: It's necessary to insert a XLR termination plug (with 120 Ohm) in the last fixture in order to ensure
proper transmission on the DMX data link.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
