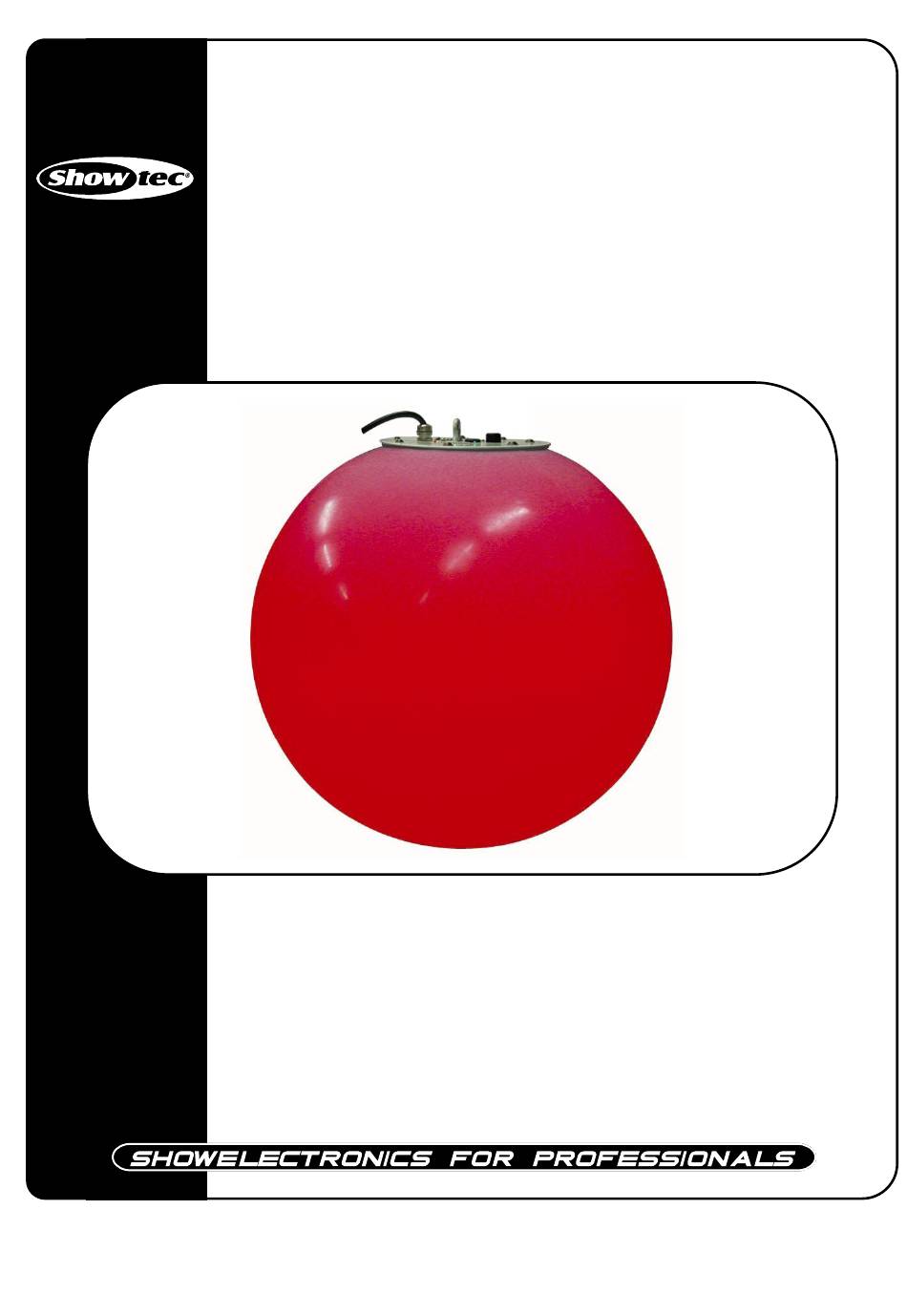

- Page 1 LED Spere Direct Control 100 ORDERCODE 41127...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec LED Sphere Direct Control 100 Product Guide ™ Warning.................…...……………..…………………………….………… Safety-instructions……………………………………………………………………………………………………… Operating Determinations.………………………………………………………………………………………….. Rigging.………………………………………………………………………………………………………………….. Return Procedure……………………………………………………………………..........Claims……………………………………………………………………..............Description................…...………………………………………….……….. Features and Overview ………………………………...….……………….………….……….……….…………… Backside…………………………………………………...…...….……………….…………………...….…………… Installation................…...…………………………………….……………… Set Up and Operation..............……..…………………………….…………….. Fixture Linking…………………....……..……………………………………………..………………………….. Data Cabling…………………....……..……………………………………………..………………………….. Control Panel...……..…………..……..………………..……..…………………………………………….. Menu Overview………………………………………………………………………………………………………… Control Modes………………………………………………………………………………………………………….. Built-in Programs 1-8………………………………………………………………………………………………... -
Page 4: Warning
WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 5 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
OPERATING DETERMINATIONS • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. • The minimum distance between light-output and the illuminated surface must be more than 0,5 meters. •... -
Page 7: Return Procedure
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description
Description of the device Features The LED Sphere Direct Control 100 is designed for the more demanding user: • Power 50W • 3 DMX Channels (Red, Green, Blue) • Controllable by DMX or built-in programs. • 1170 LEDs (440x Red, 490x Green, 240x Blue) •... -
Page 9: Set Up And Operation
Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Remove all packing materials from the LED Sphere. Check that all foam and plastic padding is removed. Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. -
Page 10: Control Panel
Control Panel When the indicator light is on, means the LED Sphere is working. Fig. 2 A. Display D. Down Button B. [MENU] Button E. Up Button C. [F/S] Button Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. -
Page 11: Menu Overview
Menu Overview Press the MODE button to scroll through 4 options of the menu: Control Modes There are 5 Modes: Built-in Programs CHE1-8 2) Sound-controlled (CHE9) 3) Manual control 4) Master/Slave 5) DMX512 1. Built-in Programs 1-8 When the LED Sphere is not connected by a DMX-cable, it functions as a stand-alone device. When you press UP/DOWN in menu CHE1, you can choose one of 8 built-in programs (CHE1-CHE8). -
Page 12: Sound Control Mode
2. Sound-controlled When the LED Sphere is not connected by a DMX-cable, it functions as a stand-alone device. When the display shows , the LED Sphere is sound-controlled. CHE9: Red → Green → Blue → Red+Green → Red+Blue → Green+Blue → Red → Green, etc. The LED Sphere will automatically change its color to the beat of the music. -
Page 13: Dmx Mode
5. Multiple LED Spheres (DMX control) 1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 2. Use a 3-p XLR cable to connect the LED Sphere. The pins: Earth Signal - Signal + 3. -
Page 14: Dmx Protocol
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec LED Sphere requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. -
Page 15: Replacing The Fuse
1. If the device does not operate properly, unplug the device. 2. Power supply. Check that the unit is plugged into an appropriate power supply. 3. The LEDs. Return the LED Sphere to your Showtec dealer. 4. The fuse. Replace the fuse. See page 13 for replacing the fuse. - Page 16 Problem Probable cause(s) Remedy No power to the fixture · Check that power is switched on One or more and cables are plugged in. fixtures are Primary fuse blown. · Replace fuse. completely dead. Fixtures reset The controller is not connected. ·...
-
Page 17: Product Specifications
Product Specification Model: Showtec LED Sphere Direct Control 100 (41127) Total LEDs: 1170 LEDs (440x Red, 490x Green, 240x Blue) Power Supply: 240V Power Consumption: 50W 3 DMX Channels (Red, Green, Blue) Control Modes: Standalone Built-in Programs 1-9 Music control...
