Summary of Contents for SHOWTEC Phantom 120 LED Wash V1

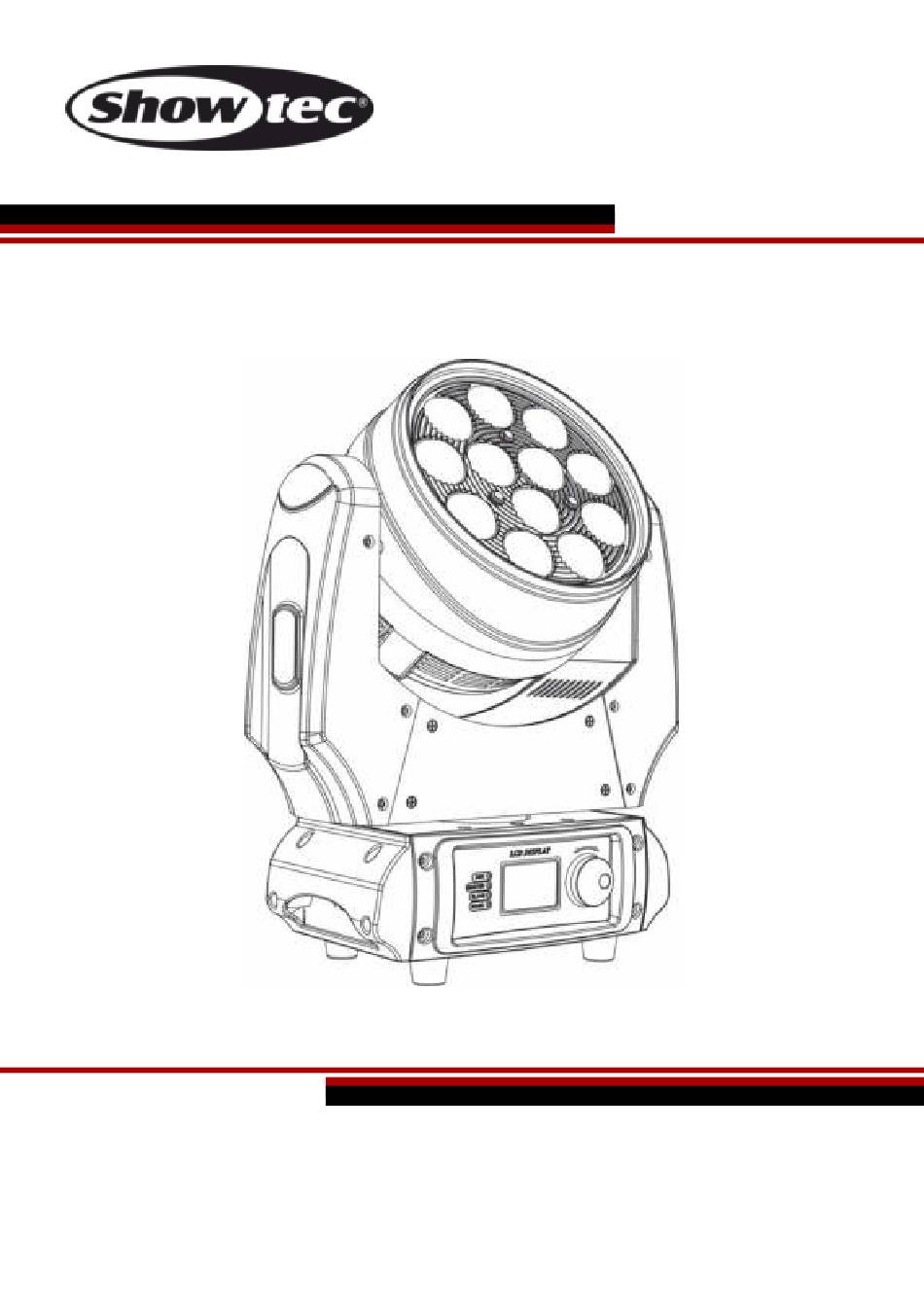

- Page 1 MANUAL ENGLISH Phantom 120 LED Wash Ordercode: 40030 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Phantom 120 Wash Table of contents Warning ....................................3 Safety Instructions ................................. 3 Operating Determinations ............................5 Rigging .................................... 5 Connection with the mains............................6 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Overview ..................................7 Frontside.................................. - Page 3 Phantom 120 Wash Troubleshooting ................................29 No Light ..................................29 No Response to DMX..............................30 Product Specifications ..............................31 Dimensions ..................................32 Notes ....................................33 Ordercode: 40030...
-
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec Phantom 120 Wash RGBW ● Mounting bracket with 2 quick-locks ●... - Page 5 • If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
Phantom 120 Wash Operating Determinations This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. The minimum distance between light-output and the illuminated surface must be more than 1 meter. ... -
Page 7: Connection With The Mains
Phantom 120 Wash Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER PHASE BLUE BLACK SILVER... -
Page 8: Description Of The Device

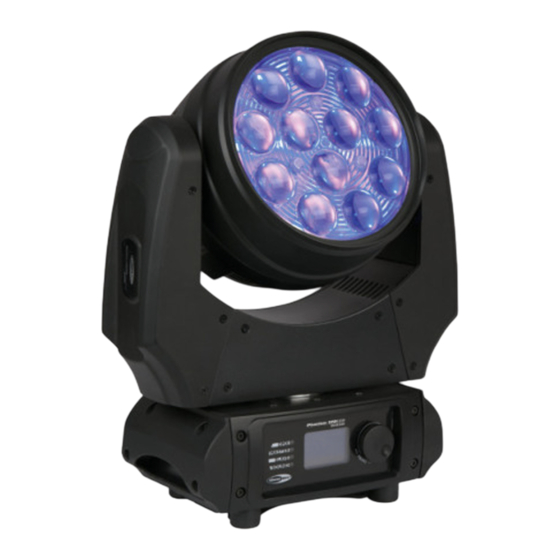

Description of the device Features The Showtec Phantom 120 Wash RGBW is a moving-head with high output and great effects. Combine or alternating the wash effect with the backlight colors to create more dramatic effects. Both wash and backlight LEDs are independently controllable in color-mix, dimmer, strobe and have their own preset colors to get total control. -
Page 9: Frontside
Phantom 120 Wash Frontside Fig. 02 01) 12 x 10W RGBW 4-in-1 LEDs 02) Control LEDs 03) LCD Display 04) MENU control NOTE: Knowledge of DMX is required to fully utilize this unit. Ordercode: 40030... -
Page 10: Backside
Phantom 120 Wash Backside Fig. 03 05) 3-pin DMX signal connector IN 06) 3-pin DMX signal connector OUT 07) Blue Pro Power connector IN 08) Fuse T3A/250V 09) Grey Pro Power connector OUT 10) Ground/earth connection 11) Power switch ON/OFF Installation Remove all packing materials from the Phantom 120 Wash RGBW. -
Page 11: Control Modes
Phantom 120 Wash Control Modes • Built-in programs (Master Mode) There are 5 modes: • Manual • Sound-controlled • Master/Slave Mode • DMX-512 (10CH, 16CH, 26CH) One Phantom 120 Wash RGBW (Built-in Programs and Manual) 01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). -
Page 12: Multiple Phantom Washes (Dmx Control)
Phantom 120 Wash Multiple Phantom Washes (DMX Control) 01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Plug the end of the electric mains power cord into a proper electric power supply socket. 04) Use a 3-pin XLR cable to connect the Phantom Wash RGBW and other devices. -
Page 13: Fixture Linking
Phantom 120 Wash Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 14: Control Panel
Phantom 120 Wash Control Panel Press and turn the control to navigate through the menu options Fig. 06 DMX Control Mode The fixtures are individually addressed on a data-link and connected to the controller. When a DMX signal is present, the DMX LED will blink. The fixtures respond to the DMX signal from the controller. -
Page 15: Menu Overview
Phantom 120 Wash Menu Overview Ordercode: 40030... -
Page 16: Main Menu Options
Phantom 120 Wash The Phantom 120 Wash will only show its entire version number at start-up ! Main Menu Options • 1. DMX Address There are 5 menu modes: • 2. Channel Mode • 3. Run Mode • 4. Functions •... -
Page 17: Channel Mode
Phantom 120 Wash 2. Channel Mode 01) While in main menu, turn the MENU control (03) until the display shows: 02) Press the MENU control (03) to enter the menu. 03) Turn the MENU control (03) to toggle between the 3 available channel modes: ... -
Page 18: Slave Mode
Phantom 120 Wash 3.3 Slave Mode 01) Turn the MENU control (03) to choose one of 2 built-in Slave modes. 02) Turn the MENU control (03) to toggle between the 2 slave functions: Slave1 (normal slave mode) Slave2 (mirror slave mode) 03) Press the MENU control (03) to confirm your preferred slave mode. -
Page 19: Functions Mode
Phantom 120 Wash 4. Functions Mode 01) While in main menu, turn the MENU control (03) until the display shows: 02) Press the MENU control (03) to enter the menu. 03) Turn the MENU control (03) to toggle between the 9 available functions: ... -
Page 20: Dimmer Curve
Phantom 120 Wash 4.3 Dimmer Curve 01) Press the MENU control (03) to enter the menu. 02) Turn the MENU control (03) to toggle between the 4 available modes: Square Law Linear S-curve InvSquare Law 03) Press the MENU control (03) to confirm the mode of your choice. 4.4 DMX Fail Curve With this menu you can determine the behaviour of the Phantom in case of DMX failure. -
Page 21: Back Light
Phantom 120 Wash 4.6 Back Light 01) Press the MENU control (03) to enter the menu. 02) Turn the MENU control (03) to toggle between the 3 options: ON (Display continuously ON) OFF (Display turns OFF after 10 seconds) ... -
Page 22: Dmx Channels
Phantom 120 Wash DMX Channels 10 Channels Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment, between 0-127. Continuous Clockwise rotation from fast slow, between 128- 191. Continuous Counterclockwise rotation from slow to fast, between 192-255. The head can be turned by 540°... - Page 23 Phantom 120 Wash 217-223 Color31 (R075, G075, B000, W255) 224-230 Color32 (R000, G000, B100, W255) 231-255 Color33 (R255, G255, B255, W255) Channel 6 – Aura Color No function 8-19 Color1 (R255, G000, B000 ) 20-39 Color2 (R255, G150, B000 ) 40-59 Color3 (R255, G255, B000 ) 60-79...
-
Page 24: Channels
Phantom 120 Wash 97-160 Sound sensitivity from low sensitivity to high sensitivity 161-170 Pan invert 171-180 Tilt invert 181-190 Pan normal 191-200 Tilt normal 201-220 Blackout during pan/tilt movement 221-240 Reset (after 3 seconds) 241-255 No function 16 Channels Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). -
Page 25: Black Out During Pan/ Tilt Movement
Phantom 120 Wash Channel 12 – Functions No function 6-10 Show1 11-20 Show2 21-30 Show3 31-40 Show4 41-50 Show5 51-60 Show6 61-70 Show7 71-80 Show8 81-90 Slave1 91-96 Slave2 97-160 Sound sensitivity from low sensitivity to high sensitivity 161-170 Pan invert 171-180 Tilt invert 181-190... -
Page 26: Channels
Phantom 120 Wash 26 Channels Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment, between 0-255. The head can be turned by 540° and stopped at any position you wish. Channel 2 –... - Page 27 Phantom 120 Wash Channel 14 – Color Macro (CH14 has priority over CH23, CH24, CH25, CH26) No function 8-13 Color1(R255, G000, B000, W000) 14-20 Color2(R255, G000, B000, W100) 21-27 Color3(R255, G000, B000, W200) 28-34 Color4(R255, G050, B000, W000) 35-41 Color5(R255, G150, B000, W000) 42-48 Color6(R255, G255, B000, W000) 49-55...
-
Page 28: Black Out During Pan/ Tilt Movement
Phantom 120 Wash Channel 16 – Color Flow (CH16 has priority over CH23, CH24, CH25, CH26) 0-15 No function 16-31 Color Jump1 32-47 Color Jump2 48-63 Color Jump3 64-79 Color Jump4 80-95 Color Jump5 96-111 Color Jump6 112-127 Color Jump7 128-143 Color Jump8 144-159... - Page 29 Phantom 120 Wash Channel 21 – Aura Green color intensity (CH11+CH12 must be open Gradual adjustment Green from 0 – 100% 0-255 Channel 22 – Aura Blue color intensity (CH11+CH12 must be open Gradual adjustment Blue from 0 – 100% 0-255 Channel 23 –...
-
Page 30: Maintenance
Phantom 120 Wash Maintenance The Showtec Phantom 120 Wash RGBW requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth. Wipe the front glass panel clean with glass cleaner and a soft cloth. -
Page 31: No Response To Dmx
Phantom 120 Wash No Response to DMX Response: Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction. 01) Check the DMX setting. Make sure that DMX addresses are correct. 02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power. Try your DMX control again. -
Page 32: Product Specifications
Phantom 120 Wash Product Specifications Model: Showtec Phantom 70 Beam RGBW Input Voltage: 100-240 VAC, 60/50Hz Power consumption: 135W max. at full output DMX linking: 30pcs Fuse: T3A/250V Dimensions: 309 x 152 x 385 mm (LxWxH) Weight: 6,9 kg Operating and Programming:... -
Page 33: Dimensions
Phantom 120 Wash Dimensions Ordercode: 40030... -
Page 34: Notes
Phantom 120 Wash Notes Ordercode: 40030... - Page 35 Phantom 120 Wash Ordercode: 40030...
- Page 36 ©2016 Showtec...
