- Page 1 MANUAL ENGLISH Performer 1000 LED MKII Ordercode: 33035 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Performer 1000 LED MKII Table of contents Warning ....................................3 Safety Instructions ................................. 3 Operating Determinations ............................5 Rigging .................................... 5 Connection with the mains............................6 Return Procedure ................................7 Claims ....................................7 Description of the device ..............................8 Features ..................................8 Frontside.................................. - Page 3 Performer 1000 LED MKII Product Specifications ..............................23 Dimensions ..................................24 Notes ....................................25 Ordercode: 33035...
-
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec Performer 1000 LED MKII ● Filterframe ●... - Page 5 ● If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
Performer 1000 LED MKII Operating Determinations ● This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. ● The minimum distance between light output and the illuminated surface must be bigger than 1 meter. -
Page 7: Connection With The Mains
Performer 1000 LED MKII Connection with the mains Connect the device to the mains with the power-plug. Always check if the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER PHASE... -
Page 8: Return Procedure
Performer 1000 LED MKII Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 9: Description Of The Device

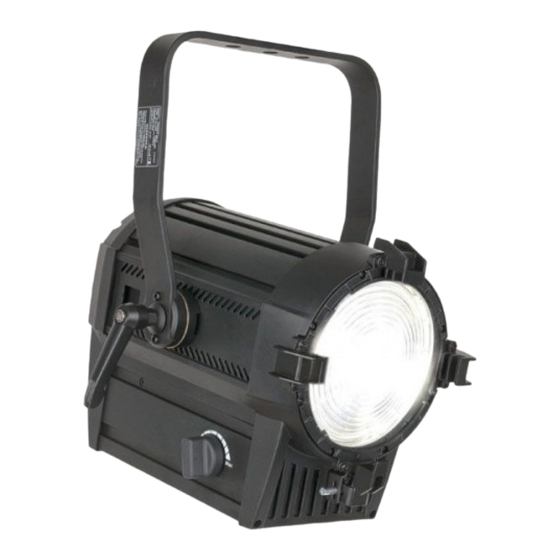

Performer 1000 LED MKII Description of the device Features The Showtec Performer 1000 LED MKII is a theater spotlight with high output and great effects. Input voltage: 100-240V AC, 50/60Hz Power consumption: 105W Light source: 1 x 90W COB LED ... -
Page 10: Backside
13) LCD display + control buttons Installation Remove all packing materials from the Performer 1000 LED MKII. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 11: Color Frame Retaining Clip
Make sure that all color frame accessories are locked in position with the retaining clip before hanging the Performer 1000 LED MKII. 01) Release the retaining clip by pressing the lock towards the lens and pressing the longer side of the screw. -
Page 12: Control Modes
Performer 1000 LED MKII Control Modes There are 3 modes: • Stand-alone • Master/Slave • DMX-512 (1CH, 2CH, 3CH) One Performer (Stand-alone) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. -
Page 13: Multiple Performers (Dmx Control)
Performer 1000 LED MKII Multiple Performers (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin/5-pin XLR cable to connect the Performers and other devices. -
Page 14: Fixture Linking
Performer 1000 LED MKII Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 15: Control Panel
Performer 1000 LED MKII The Performer 1000 LED MKII can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel A) MENU button ENTER button C) DOWN button D) UP button DIMMER display LED display Fig. -
Page 16: Menu Overview
Performer 1000 LED MKII Menu Overview Ordercode: 33035... -
Page 17: Main Menu Options
Performer 1000 LED MKII Main Menu Options DMX-512 Mode Run Mode Dimmer General settings The Performer will only show its version number at start-up ! 1. DMX-512 Mode In this mode you can set the DMX starting address. 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. -
Page 18: General Settings
Performer 1000 LED MKII 4. General settings 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. 03) If the display shows , you need to insert a key combination which will unlock the menu. -
Page 19: Safety Key
Performer 1000 LED MKII 4.3. Safety key 01) When the display shows , press the ENTER button to open the menu. 02) Press the UP/DOWN buttons to toggle between to deactivate/activate the safety lock. 03) When the option is active, you will need to insert the safety key combination every time the display turns off. -
Page 20: Performance Settings
Performer 1000 LED MKII 4.9. Performance settings 01) When the display shows , press the ENTER button to open the menu. 02) Press the UP/DOWN buttons to toggle between the 3 modes: Default mode. The Performer provides a compromise between output quality and noise level. -
Page 21: Cleaning
Performer 1000 LED MKII Cleaning Please follow the next recommendations when cleaning and inspecting lenses and reflectors: Do not use glass or window type cleaners on lenses (glass or polymer) or reflectors. Do not use abrasive materials such as steel wool. -
Page 22: Maintenance
04) The electric power supply cables must not show any damages or material fatigue. The Performer 1000 LED MKII requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. -
Page 23: No Response To Dmx
Performer 1000 LED MKII No Response to DMX Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction. 01) Check the DMX setting. Make sure that DMX addresses are correct. 02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power. - Page 24 Performer 1000 LED MKII Product Specifications Model: Showtec Performer 1000 LED MKII Input voltage: 100-240V AC, 50/60Hz Power consumption: 105W (full output) DMX linking: 30pcs Fuse: T3,15AL/250V Dimensions: 325 x 290 x 270 mm (LxWxH) Weight: 6 kg Operating and Programming:...
- Page 25 Performer 1000 LED MKII Dimensions Ordercode: 33035...
- Page 26 Performer 1000 LED MKII Notes Ordercode: 33035...
- Page 27 Performer 1000 LED MKII Ordercode: 33035...
- Page 28 ©2019 Showtec...
