NTI Enviromux Series Installation Manual page 5

When configuring the Remote Digital Inputs for connection to a water sensors or dry-contact sensors, configure them just as you
would any other Digital Input as described in the manual for the SYSTEM.
When configuring the use of Remote Output Relays, configure them also as described for Output Relays in the manual for the
SYSTEM.

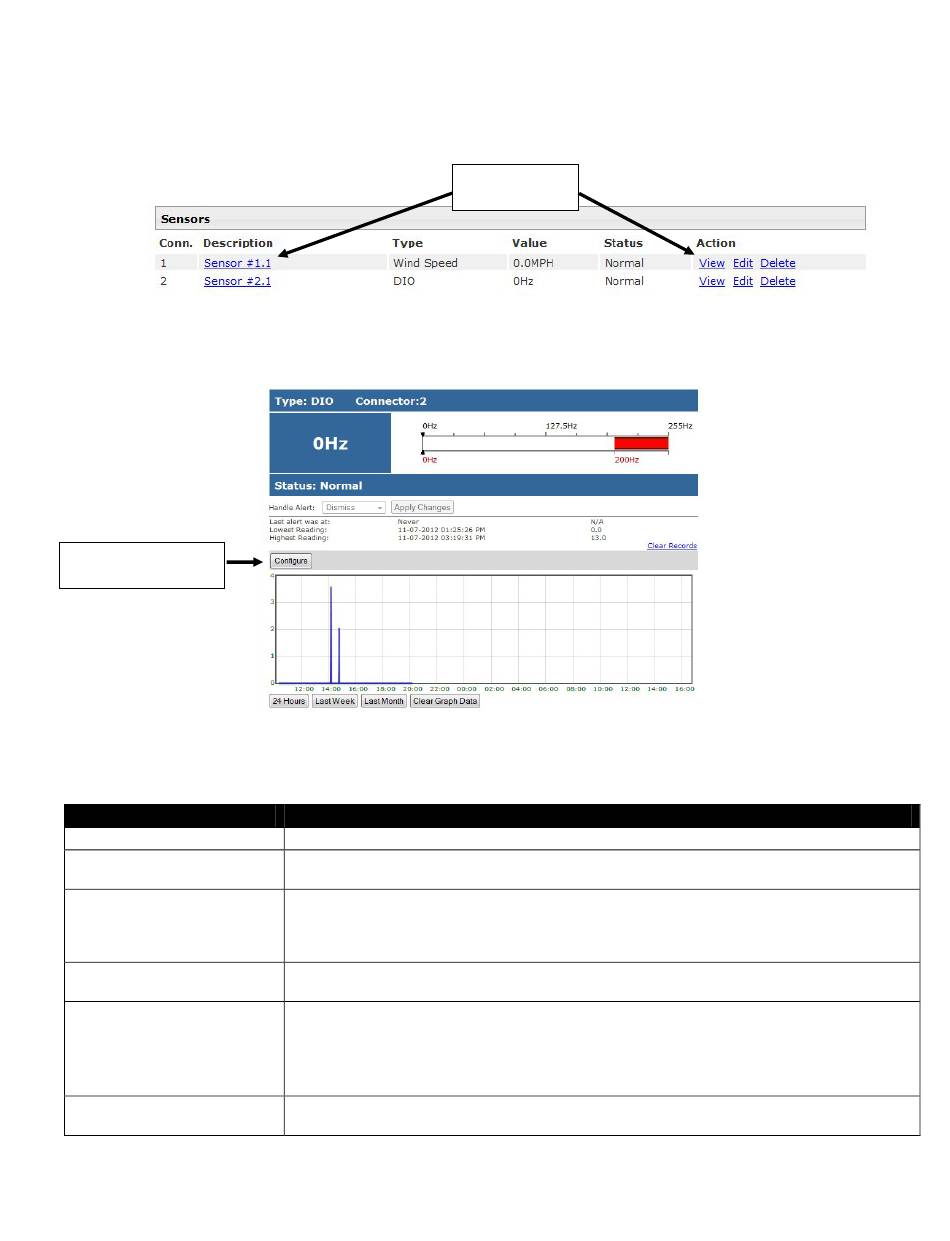

To view the status of a tachometer connected to Digital In #1, Click on the Sensor description or click on "View"
The status page for the sensor will open, displaying the default value of the sensor with a 0-255Hz range of sensing operation.
Click here to open
configuration page
To configure the sensor for specific use, click on "Configure" to open a page with variable values (see image on next page).
Most of the sensor settings are the same as any other sensor configuration (detailed in the SYSTEM manual) but there are some
differences:
Sensor Settings
Associate Sensor
Associated Sensor Type
Associated Sensor Unit
SNMP Associated Type ID
Min. Associated Level
Max. Associated Level
To view status,
click either link
Description
Select if the Type "DIO" should be replaced by the sensor type to be entered in the next box.
Enter the "Type" of sensor that should be displayed on the summary page and in all alert
communications received regarding this sensor
Enter between 1 and 3 alphabetical characters. (Ex. MPH for Miles Per Hour) These
characters will be used by the ENVIROMUX to represent the unit of measure reported by the
attached sensor. Leaving it empty will result in an empty string in the reported data. For
example, a value will be reported on the status page, but no unit of measure will be displayed.
Enter ID value from MIB file if SNMP traps will be used for alert notifications for this sensor (for
more on this, see "SNMP Custom Type ID" on next page)
The minimum range of the units to be associated with the cycle count measured from the
attached sensor.
(Ex. the ENVIROMUX-WSS associates one rotation within 1 second to be a wind speed of
2.5MPH. With an maximum operating range of 255Hz (or cycles), the maximum wind speed
measurement will be 637.5MPH (255Hz X 2.5MPH).)
The maximum range of the units to be associated with the current reading measured from the
attached sensor.
