Web Interface- Summary Page

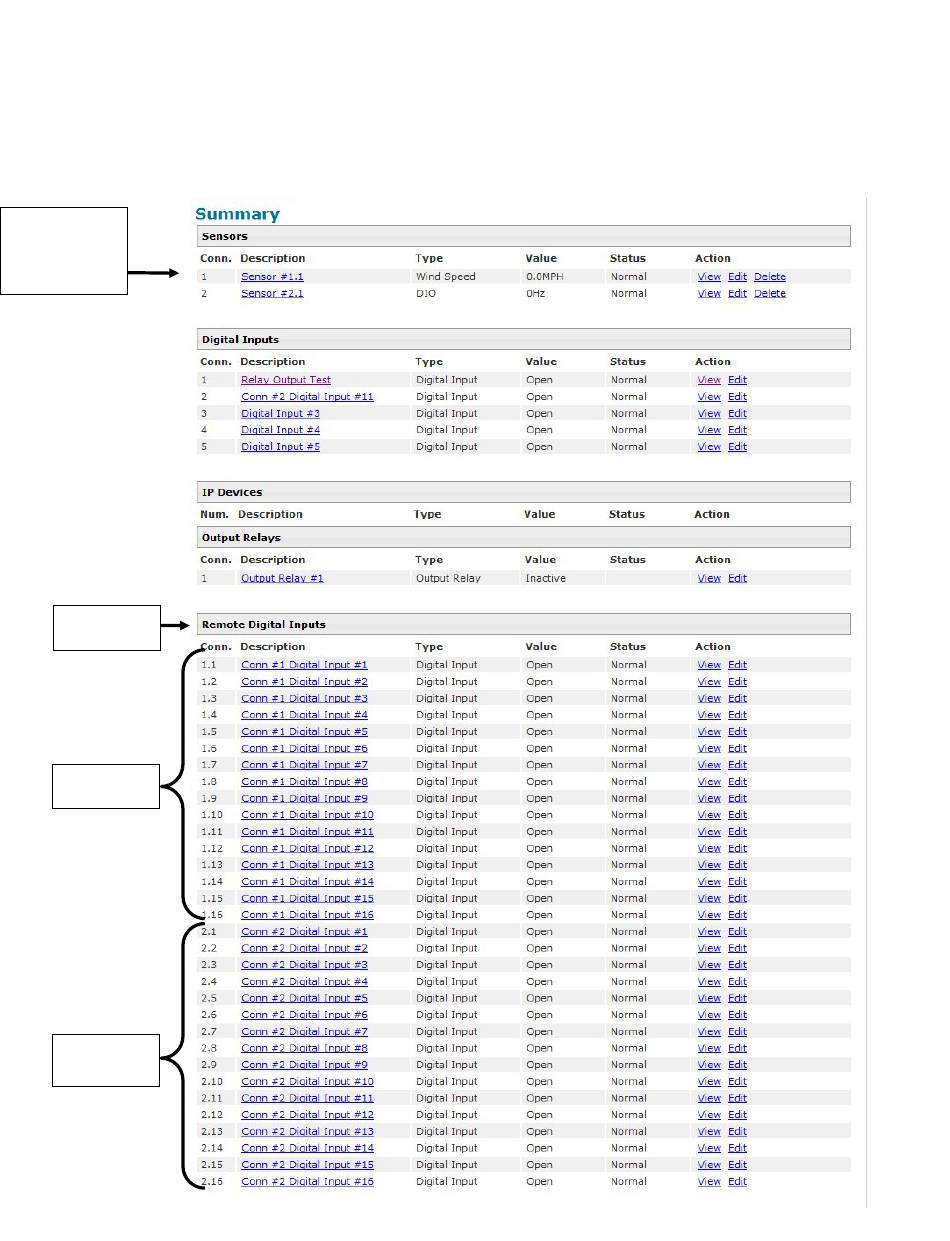

The Summary Page of the SYSTEM will display sensors connected to the ENVIROMUX-DI16DO(R)16 in a separate list labeled
"Remote Digital Inputs". (The image below demonstrates the summary page with two ENVIROMUX-DI16DO16 Digital
Expanders connected.)
The SYSTEM will also recognize the number 1 connector set on the ENVIROMUX-DI16DO(R)16 as a possible tachometer
connector, displaying its status under "Sensors".
sensor or dry-contact sensor is going to be connected to connection 1 (Connection "1.1" or "2.1" below), ignore the listing under
"Sensors" and configure the listing under "Remote Digital Inputs". Do not configure both.
To configure
Input #1 for
connection
to tachometer
Remote
Connections
First
Expander
Second
Expander
If a tachometer is being connected, configure the sensor as such.
4
If a water
