CAT5 Cable

The CAT5 connection cable between the SYSTEM and the ENVIROMUX-DI16DO(R)16 is terminated with RJ45 connectors and

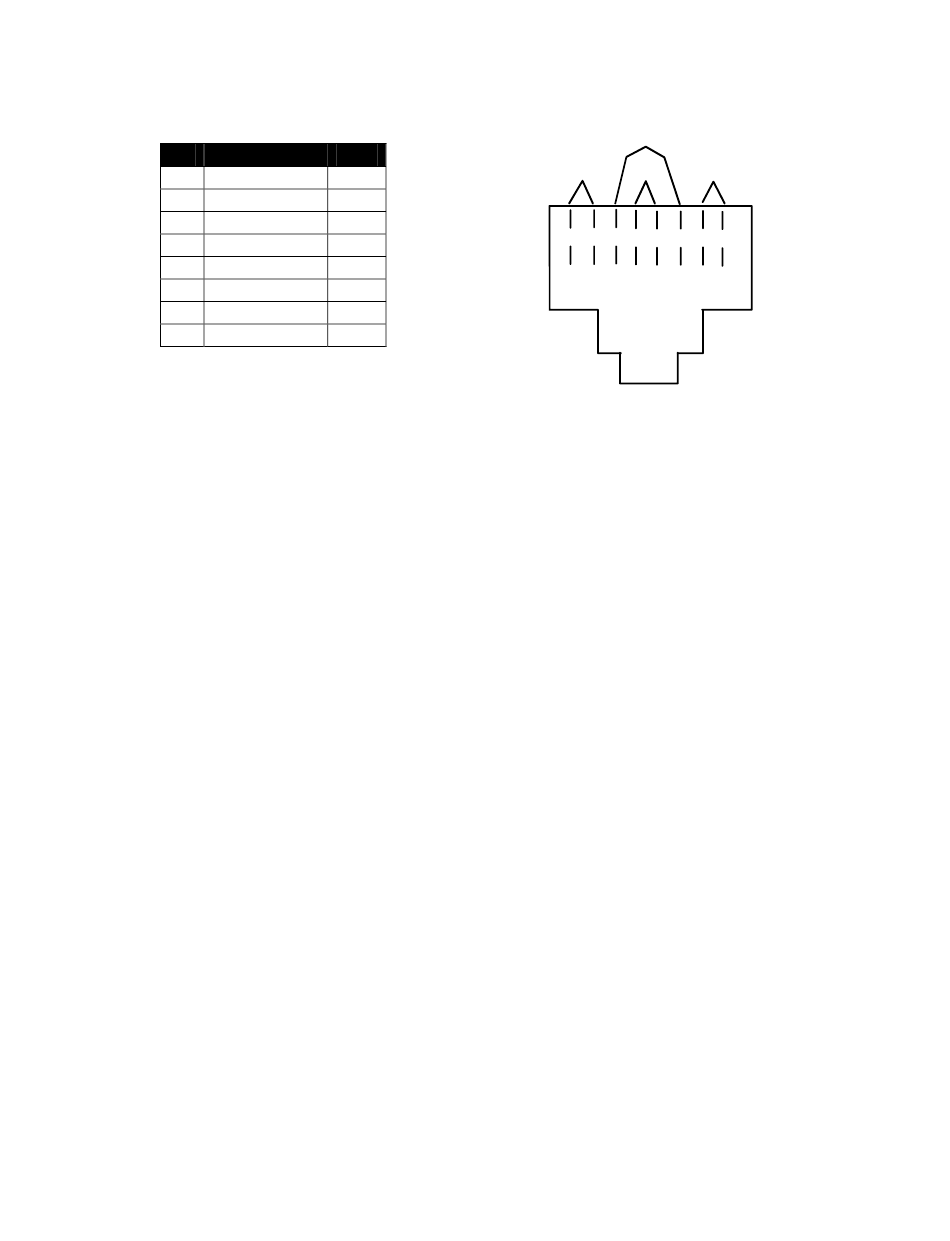

must be wired according to the EIA/TIA 568 B industry standard. Wiring is as per the table and drawing below.
Pin Wire Color
1 White/Orange
2 Orange
3 White/Green
4 Blue
5 White/Blue
6 Green
7 White/Brown
8 Brown
