3. Safety
(continued)

3.12 Component Locations

Upper
Taping
Head
Upper Drive
Assembly
Release Knob
Push Button Station
"Start/Stop"
Pneumatic
Controls
Electrical/Pneumatic
"On/Off " Switch
w/Circuit Breaker
Centering Guide
Air Pressure
Regulator
Air Pressure Regulator,
Centering Guide Force
(upper assembly air pressure
counter balance)
Electrical
Control Box

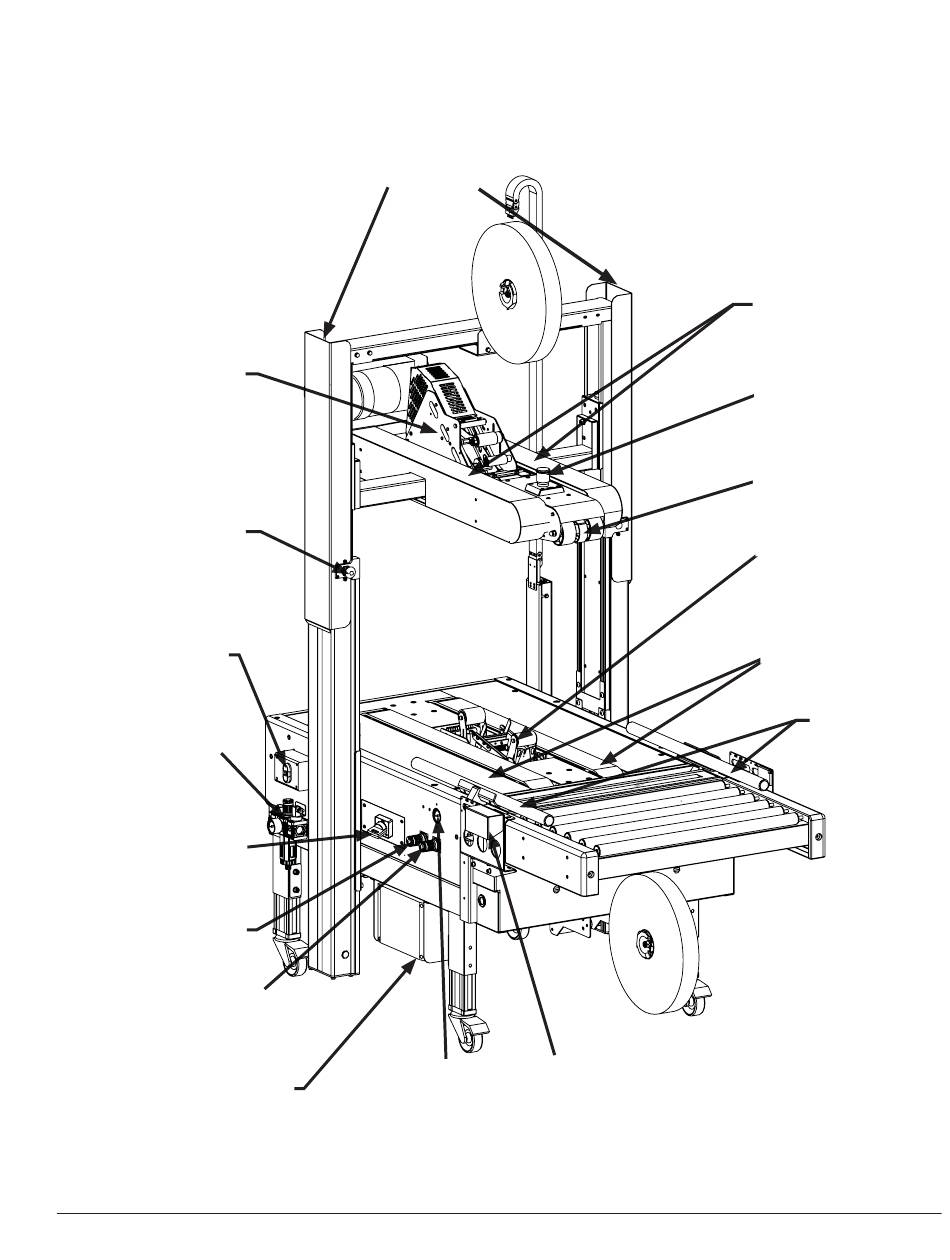

Figure 3-9 7000r-7000r3 Pro Case Sealer Components (Left Front View)
3M-Matic 7000r-7000r3 Pro
™
Page 10
Refer to Figure 3-9 below to acquaint yourself with the various components and controls
of the case sealer. Also refer to Manual 2 for taping head components.
Column Guards
Upper Drive
Pressure
Gauge
Box Centering Proximity Sensor
(inside box)
Upper Drive Belts
Emergency Stop Switch
Upper Drive
Assembly Switch
(with Proximity Sensor)
Lower Taping Head
Lower Drive Belts
Box
Centering
Guides
Infeed End
NA - ENG
April 2016
