Appendix A: Technical Data
A Technical Data
Technical Specifications
Model name
Dimensions (L x W x H)
Weight
Operating temperature
Storage temperature
Humidity range
Pressure range
Power supply
Current consumption
Configuration port
Galvanic isolation
Mechanical rating
Mounting
Certifications
All measurements are in millimeters.

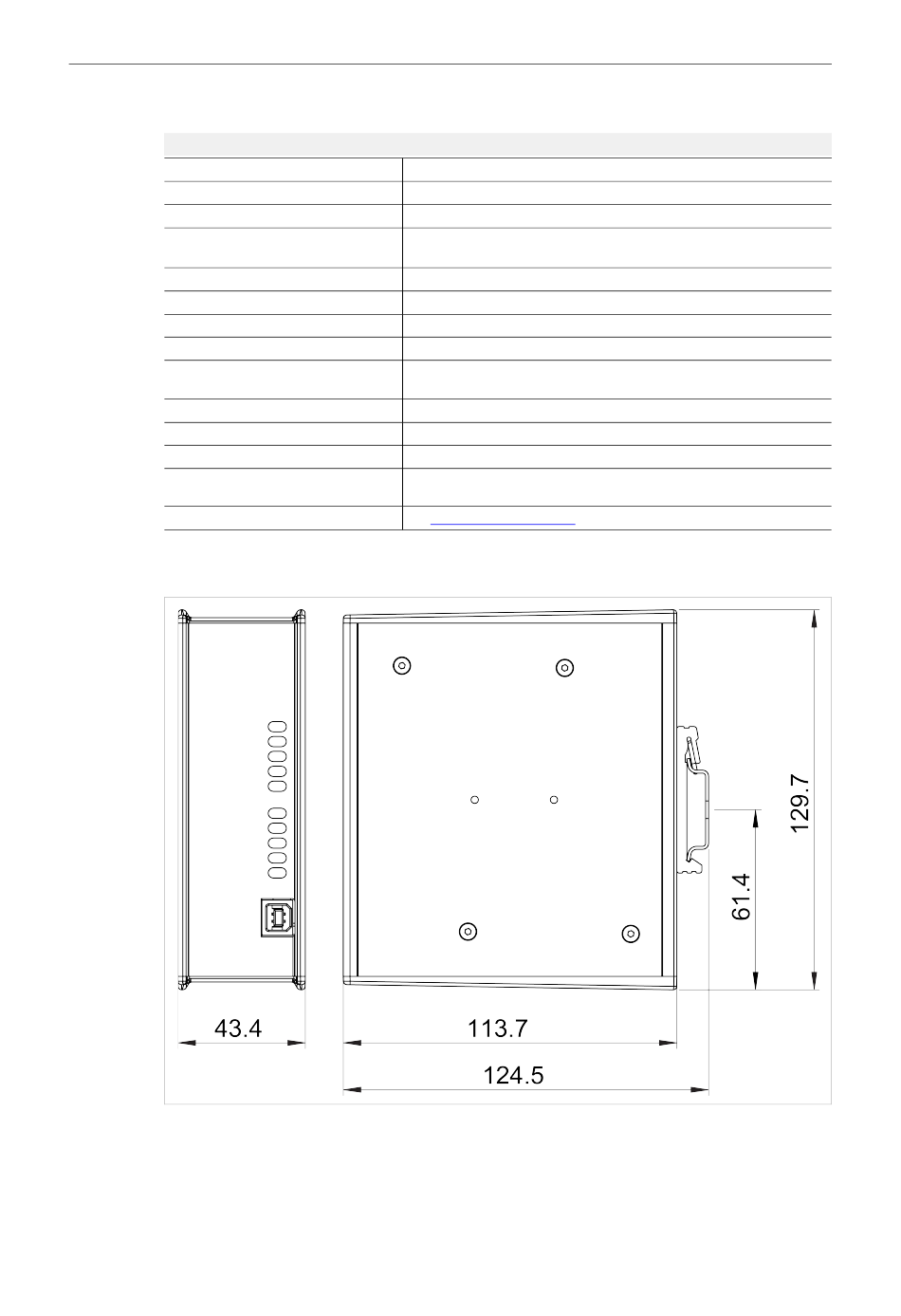

Fig. 11 Anybus X-gateway dimensions
Anybus ® X-gateway ™ User Manual
Anybus X-gateway
114 x 44 x 127 mm
400 g
-25 to +65 °C (IEC 60068-2-1 and IEC 60068-2-2)
(max. +50 °C for fibre optic interfaces)
-40 to +85 °C (IEC 60068-2-1 and IEC 60068-2-2)
5–95 % RH, non-condensing (IEC 60068-2-30)
85–105 kPa
24 V ±20 % DC regulated power source
Typical: 200 mA @ 24 VDC
Maximum: 400 mA @ 24 VDC
USB (USB to CAN cable not included)
Yes, on both network sides
IP20, NEMA rating 1
DIN rail (EN 50022)
Network shield conductance via DIN rail
See www.anybus.com/support
