Installation
3
Installation
3.1
DIN Rail Mount
The unit is designed to be mounted on a standard DIN rail. No tools are needed.

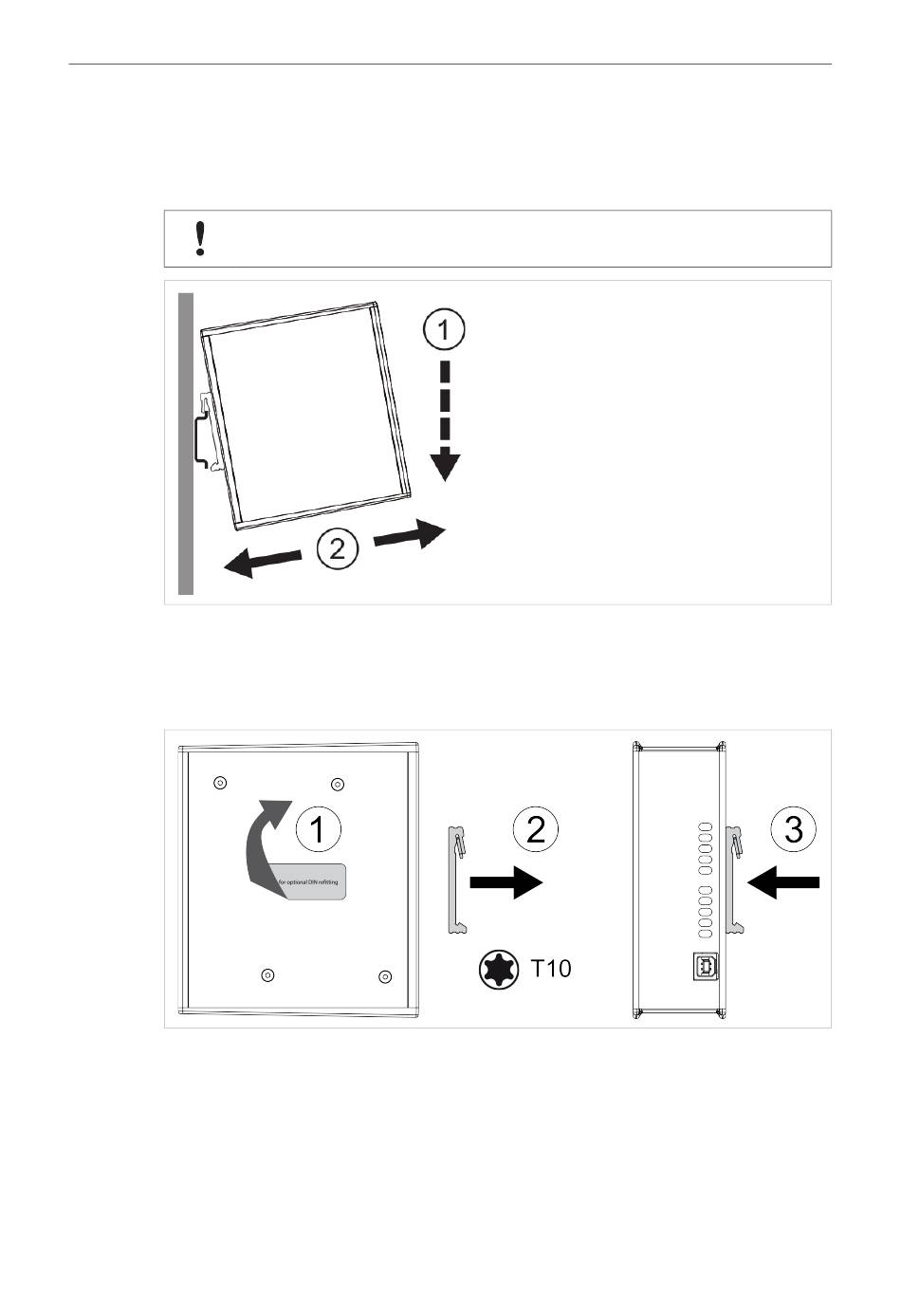

Fig. 5
DIN rail mount
Sideways mounting
The unit can alternatively by mounted sideways on the DIN rail. A T10 Torx screwdriver is needed
to reposition the DIN clip.
Fig. 6
Sideways mount
1.
Remove the sticker covering the screw holes on the right side panel.
2.
Unscrew the DIN clip from the back of the unit. Use a T10 Torx screw driver.
3.
Refit the DIN clip to the side panel.
Anybus
®
X-gateway
™
User Manual
The unit must be electrically grounded through the DIN rail for EMC compliance. Make
sure that the unit is correctly mounted on the rail and that the rail is properly grounded.
11 (16)
HMSI-27-262 4.0 en-US
