Anybus Configuration Manager
4.2

Setup

1. Download Anybus Configuration Manager and Anybus Transport Provider from
www.anybus.com/support.
2. Unzip the contents of each archive in a folder on your computer and double-click on the
setup executable, then follow the instructions in the installation wizard.
3. Connect a USB cable between the computer and the USB port on the X-gateway.
4. Start Anybus Configuration Manager and select Online > Select Connection.

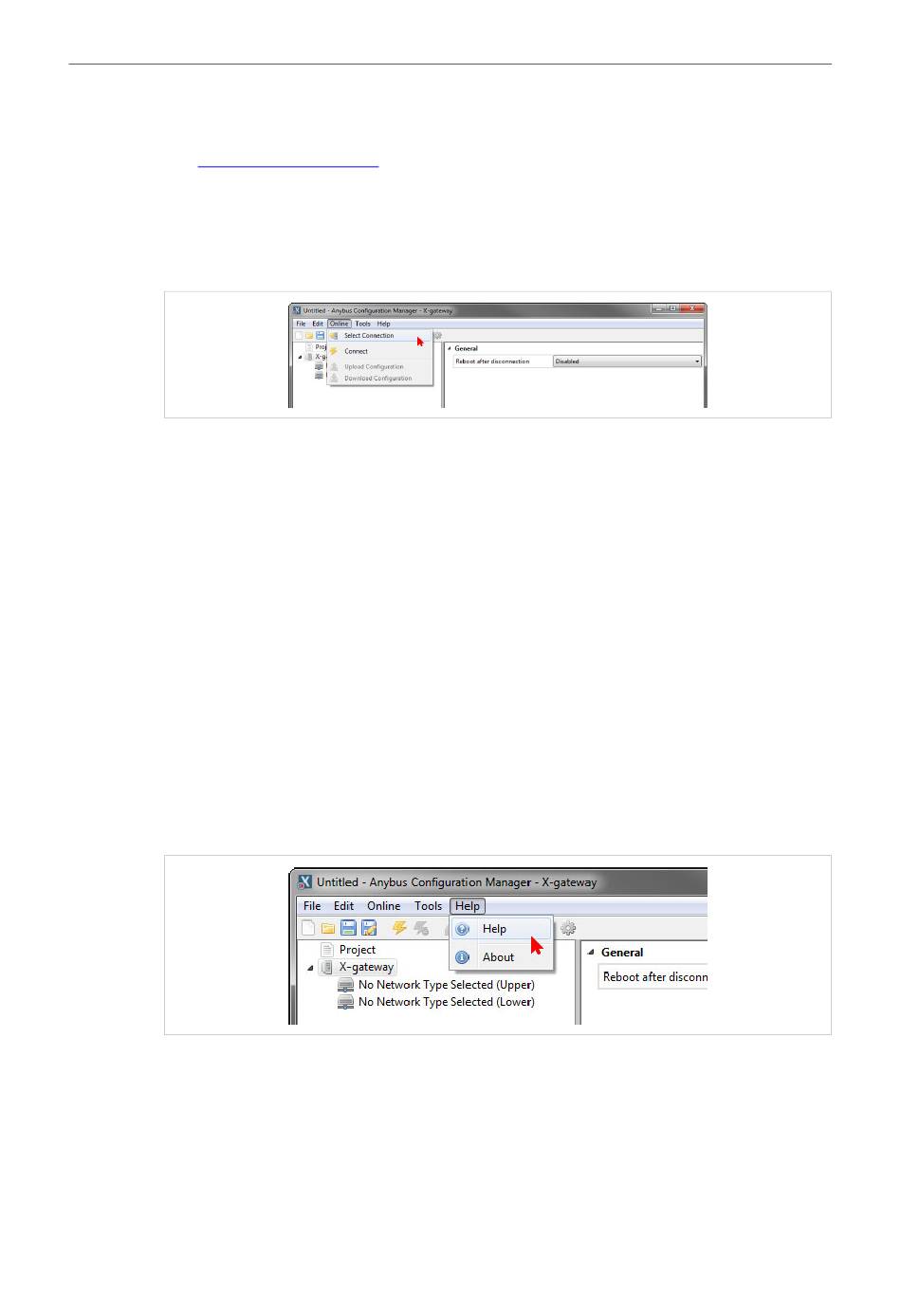

Fig. 9 Select a connection
5. Select the connection to use for the X-gateway and click on OK. The USB connection will be
named Anybus Serial Connection.
There is normally no need to configure the connection unless you are connected to more
than one X-gateway. See the built-in help for more information.
6. Select Online > Connect to open the connection to the X-gateway.
4.3

Configuration

Once Anybus Configuration Manager has established a connection to the X-gateway,
configurations from the unit can be retrieved, viewed and modified.
1. Select Online > Upload Configuration to retrieve the configuration from the X-gateway.
2. The configuration can now be viewed and modified as required.
3. After making changes, select Online > Download Configuration to apply the modified
configuration to the X-gateway.
For more information about the various functions and settings, see the built-in help in Anybus
Configuration Manager and the documentation for each network interface.
Fig. 10 Anybus Configuration Manager help menu
