Chapter 3: Jumpers and Switches

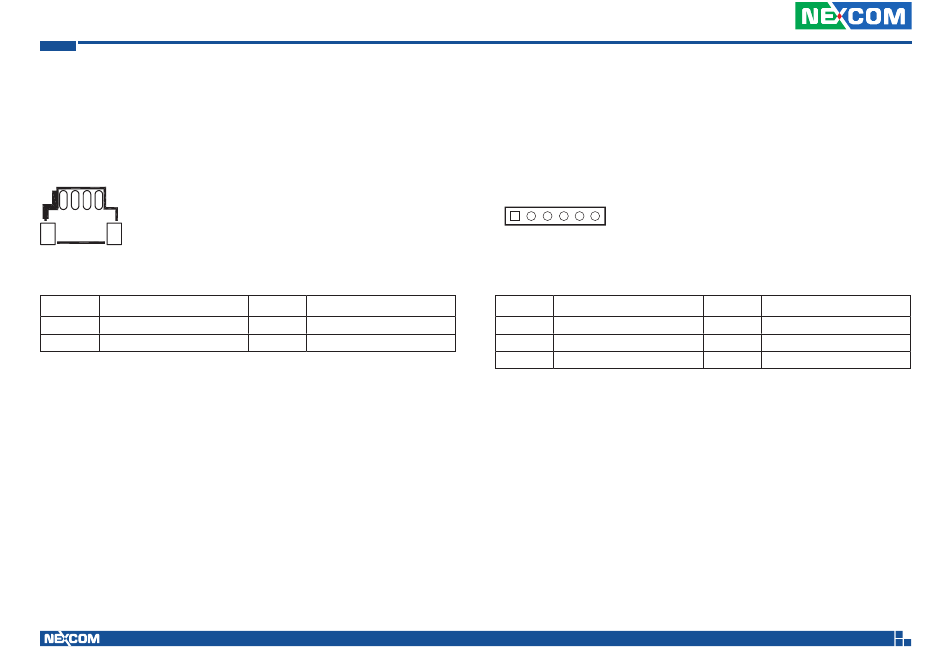

USB Connectors (Reserved)
Connector size: 1 x 4 = 4-pin header (1.0mm)
Connector location: J8 and J10
1
4
Pin
Definition
1
VCC
3
D+
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
D-
4
GND
CAN-MCU Update Port
Connector size: 1 x 6 = 6-pin header (2.54mm)
Connector location: JP6
1
6
Pin
Definition
1
3.3V
3
SWDCLK
5
RESET#
28
Pin
Definition
2
SWDIO
4
SWO
6
GND
ATC 8010 User Manual
