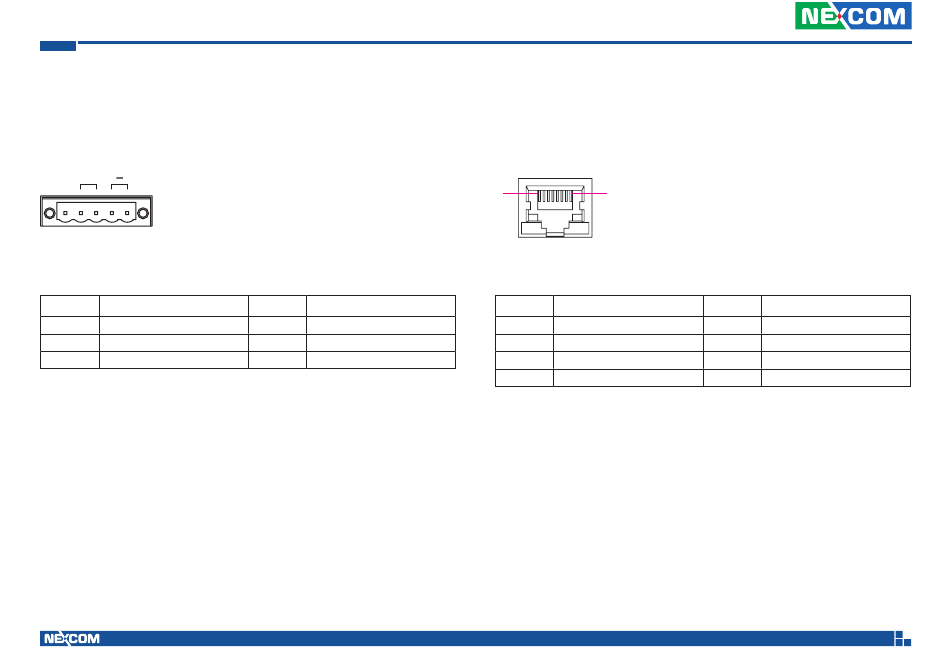

Chapter 2: External Connectors Pinout Description

9V-36V DC Power Input

Connector number: 19
+
I
5
1
Pin
Definition
1
GND
3
VIN
5
IGNITION
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
GND
4
VIN

LAN Port

Connector number: 20
1
8
Pin
Definition
1
LAN_MDI_0P_R
3
LAN_MDI_1P_R
5
LAN_MDI_2P_R
7
LAN_MDI_3P_R
16
Pin
Definition
2
LAN_MDI_0N_R
4
LAN_MDI_1N_R
6
LAN_MDI_2N_R
8
LAN_MDI_3N_R
