Chapter 2: External Connectors Pinout Description

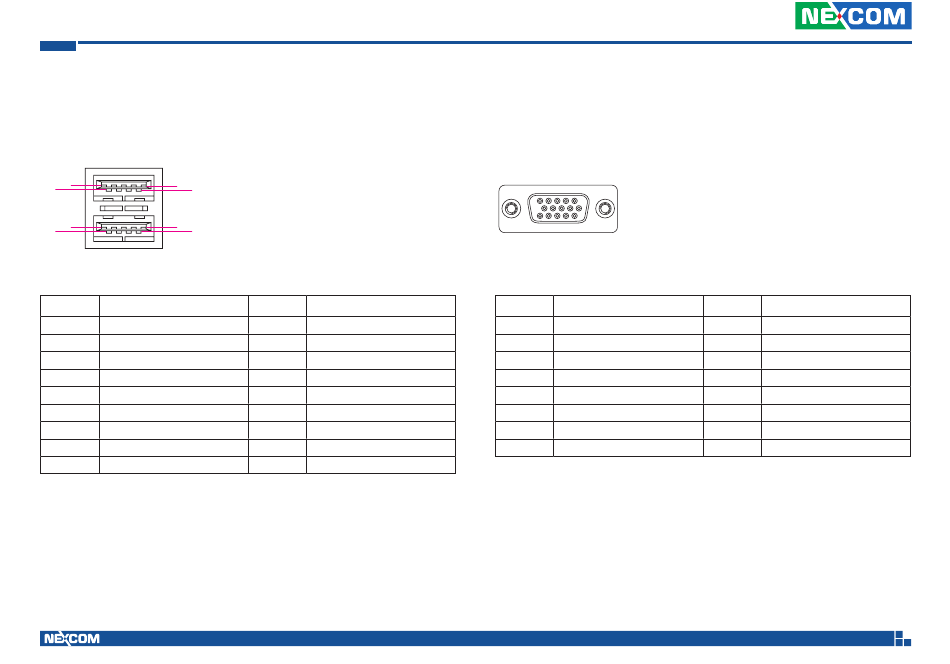

Dual USB 3.1 Port

Connector number: 13
18 14
10 13
9 5
1 4
Pin Definition
1 5V
3 USB_3P
5 USB3_RX3N
7 GND
9 USB3_TX3P
11 USB_4N
13 GND
15 USB3_RX4P
17 USB3_TX4N
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 USB_3N
4 GND
6 USB3_RX3P
8 USB3_TX3N
10 5V
12 USB_4P
14 USB3_RX4N
16 GND
18 USB3_TX4P

CAN/DIO Multiport Connector

Connector number: 14
5 1
5 1
15 11
15 11
Pin Definition
1 CAN H
3 GPO3
5 GPO0
7 DIRECTION
9 GPI2
11 CAN GND
13 GPI3
15 GPI0
13
Pin Definition
2 ODOMETER
4 GPI1
6 CAN L
8 GND
10 GPO1
12 GND
14 GPO2
