5.2.

OM2000A+ control

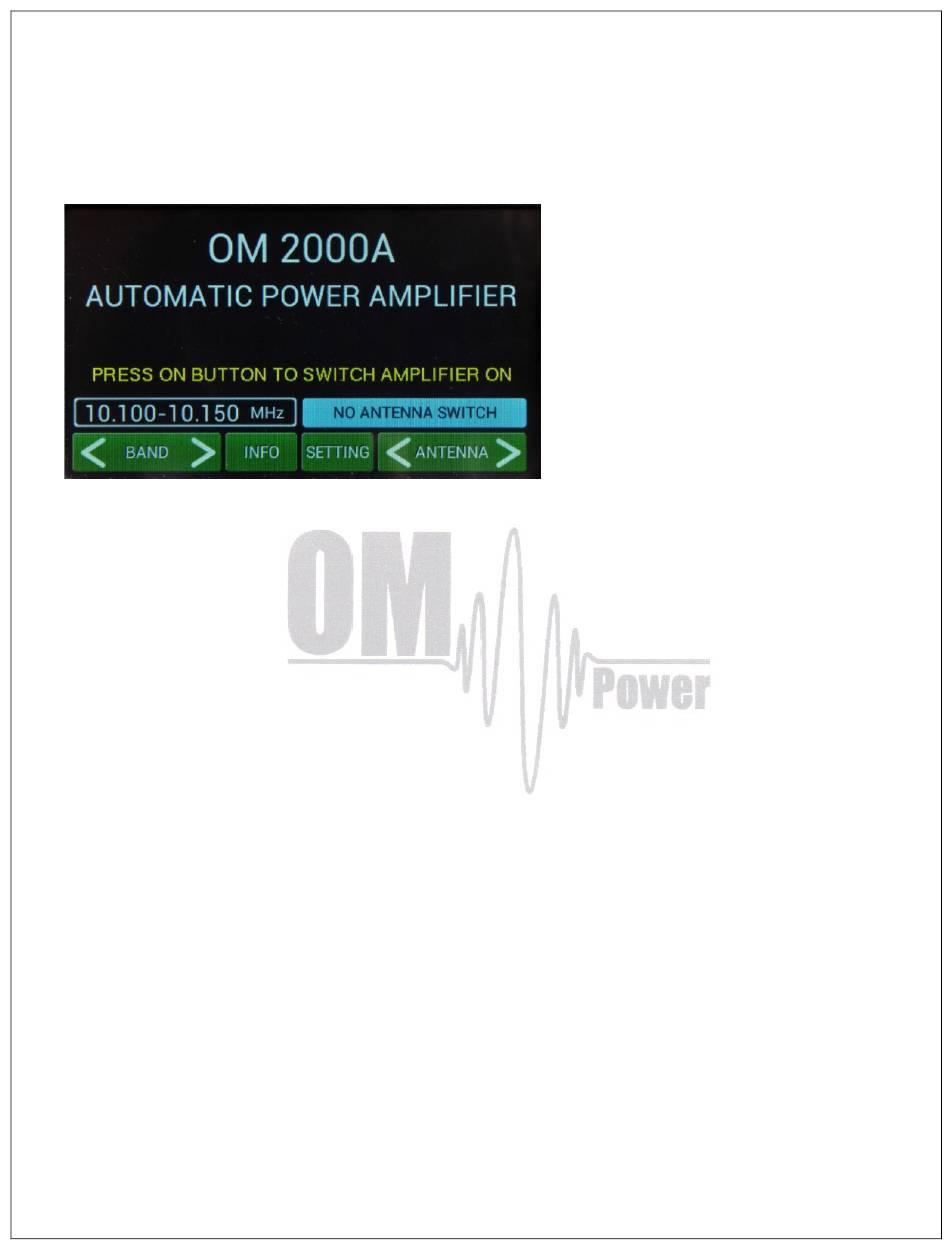

Turn ON the Main switch and the home screen will lights up. In the bottom line touch buttons are
visible
Remember that the home screen is active for some information and settings , while PA is still OFF!
BAND
Touch the left side of BAND button to go down, touch the right site to go up with band displayed above
the button.
ANTENNA
Transmitting antenna choice. Functional ONLY when the antenna switch is programmed and antennas
are defined (see next parts). It allows switching between antennas authorized for the current band. An
external antenna switch is controlled by BCD code at the ANT/BPF output.
INFO
Information display shows basic information about the PA: serial number, software version, time ON,
tube serial number and nominal Main voltage. Some of them manufacturer can requested in case of
any failure, etc.
