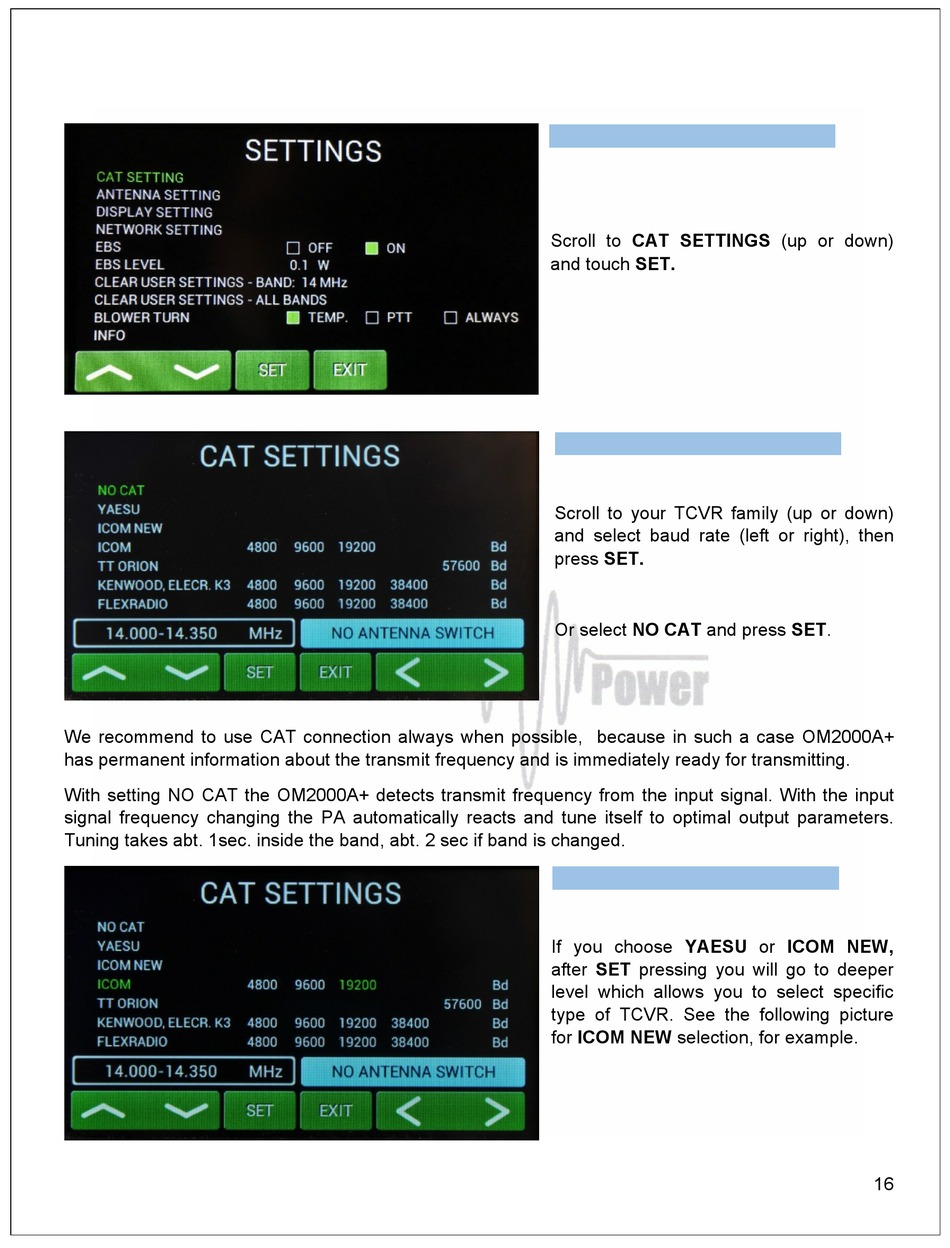

OM POWER OM2000A+ Instruction Manual page 16

We recommend to use CAT connection always when possible, because in such a case OM2000A+
has permanent information about the transmit frequency and is immediately ready for transmitting.
With setting NO CAT the OM2000A+ detects transmit frequency from the input signal. With the input
signal frequency changing the PA automatically reacts and tune itself to optimal output parameters.
Tuning takes abt. 1sec. inside the band, abt. 2 sec if band is changed.
Type of supported TCVR and
Scroll to CAT SETTINGS (up or down)
and touch SET.
frequency are visible on the
AUTO LED is ON.
Scroll to your TCVR family (up or down)
Type of supported TCVR and
and select baud rate (left or right), then
press SET.
frequency are visible on the
Or select NO CAT and press SET.
AUTO LED is ON.
If you choose YAESU or ICOM NEW,
Type of supported TCVR and
after SET pressing you will go to deeper
level which allows you to select specific
frequency are visible on the
type of TCVR. See the following picture
for ICOM NEW selection, for example.
AUTO LED is ON.
working
display.
working
display.
working
display.
16
