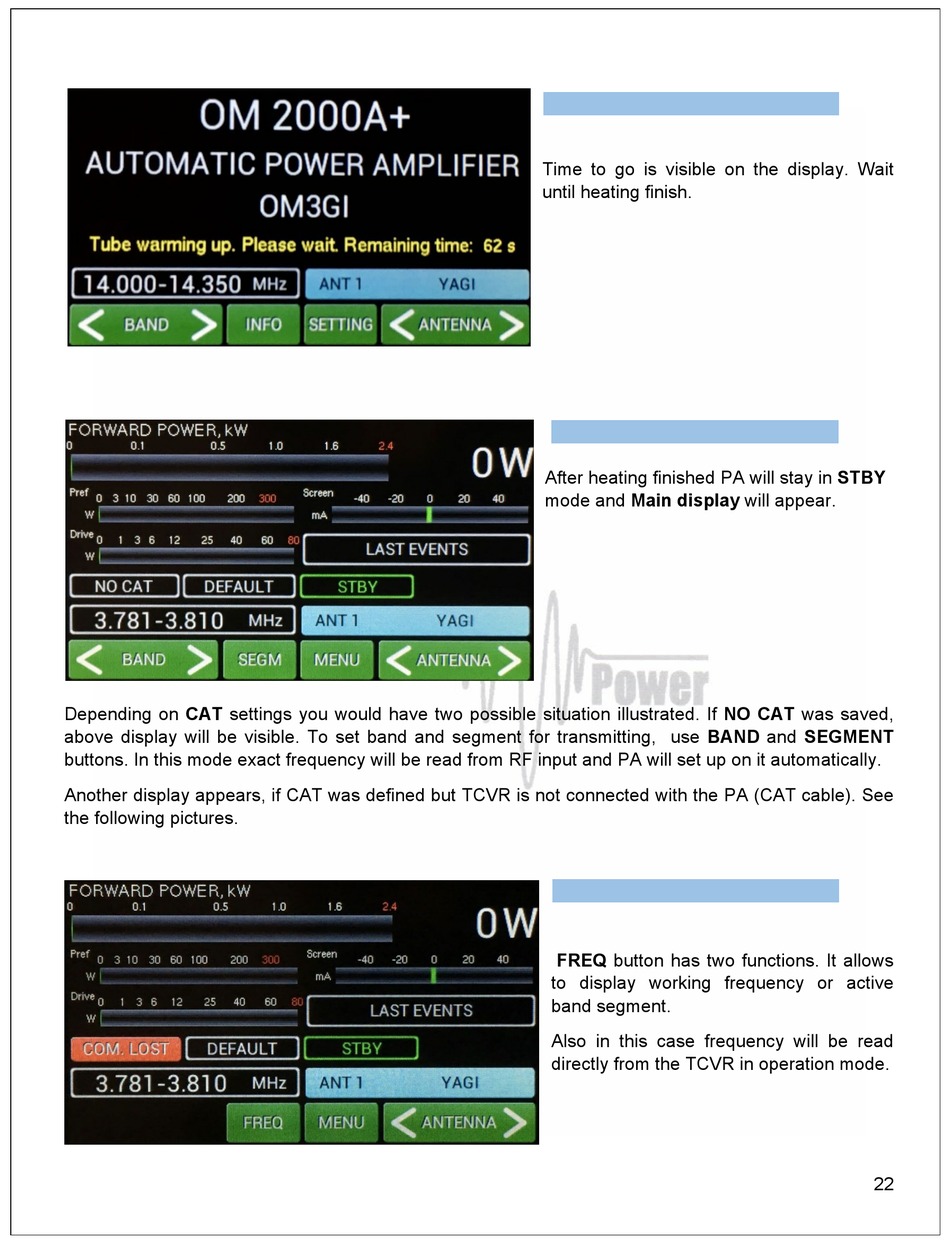

OM POWER OM2000A+ Instruction Manual page 22

Depending on CAT settings you would have two possible situation illustrated. If NO CAT was saved,
above display will be visible. To set band and segment for transmitting, use BAND and SEGMENT
buttons. In this mode exact frequency will be read from RF input and PA will set up on it automatically.
Another display appears, if CAT was defined but TCVR is not connected with the PA (CAT cable). See
the following pictures.
Time to go is visible on the display. Wait
Type of supported TCVR and
until heating finish.
frequency are visible on the
AUTO LED is ON.
After heating finished PA will stay in STBY
mode and Main display will appear.
Type of supported TCVR and
frequency are visible on the
AUTO LED is ON.
FREQ button has two functions. It allows
Type of supported TCVR and
to display working frequency or active
band segment.
frequency are visible on the
Also in this case frequency will be read
directly from the TCVR in operation mode.
AUTO LED is ON.
working
display.
working
display.
working
display.
22
