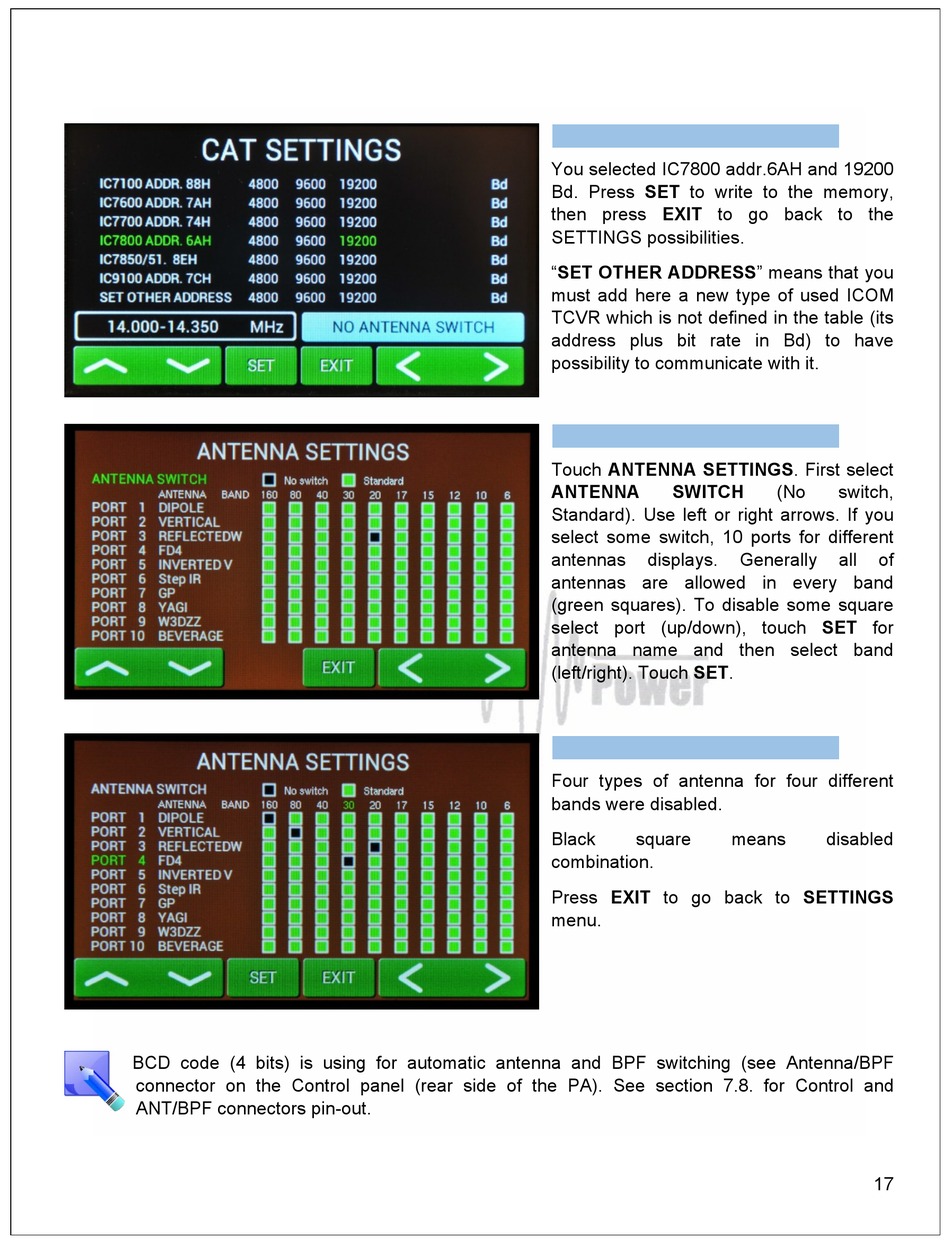

OM POWER OM2000A+ Instruction Manual page 17

BCD code (4 bits) is using for automatic antenna and BPF switching (see Antenna/BPF
connector on the Control panel (rear side of the PA). See section 7.8. for Control and
ANT/BPF connectors pin-out.
You selected IC7800 addr.6AH and 19200
Bd. Press SET to write to the memory,
Type of supported TCVR and
then press EXIT to go back to the
SETTINGS possibilities.
frequency are visible on the
"SET OTHER ADDRESS" means that you
must add here a new type of used ICOM
TCVR which is not defined in the table (its
address plus bit rate in Bd) to have
possibility to communicate with it.
AUTO LED is ON.
Touch ANTENNA SETTINGS. First select
ANTENNA SWITCH
Type of supported TCVR and
Standard). Use left or right arrows. If you
select some switch, 10 ports for different
antennas displays.
frequency are visible on the
antennas are allowed in every band
(green squares). To disable some square
select port (up/down), touch SET for
antenna name and then select band
AUTO LED is ON.
(left/right). Touch SET.
Four types of antenna for four different
bands were disabled.
Type of supported TCVR and
Black square
combination.
frequency are visible on the
Press EXIT to go back to SETTINGS
menu.
AUTO LED is ON.
working
display.
(No switch,
working
Generally all of
display.
means disabled
working
display.
