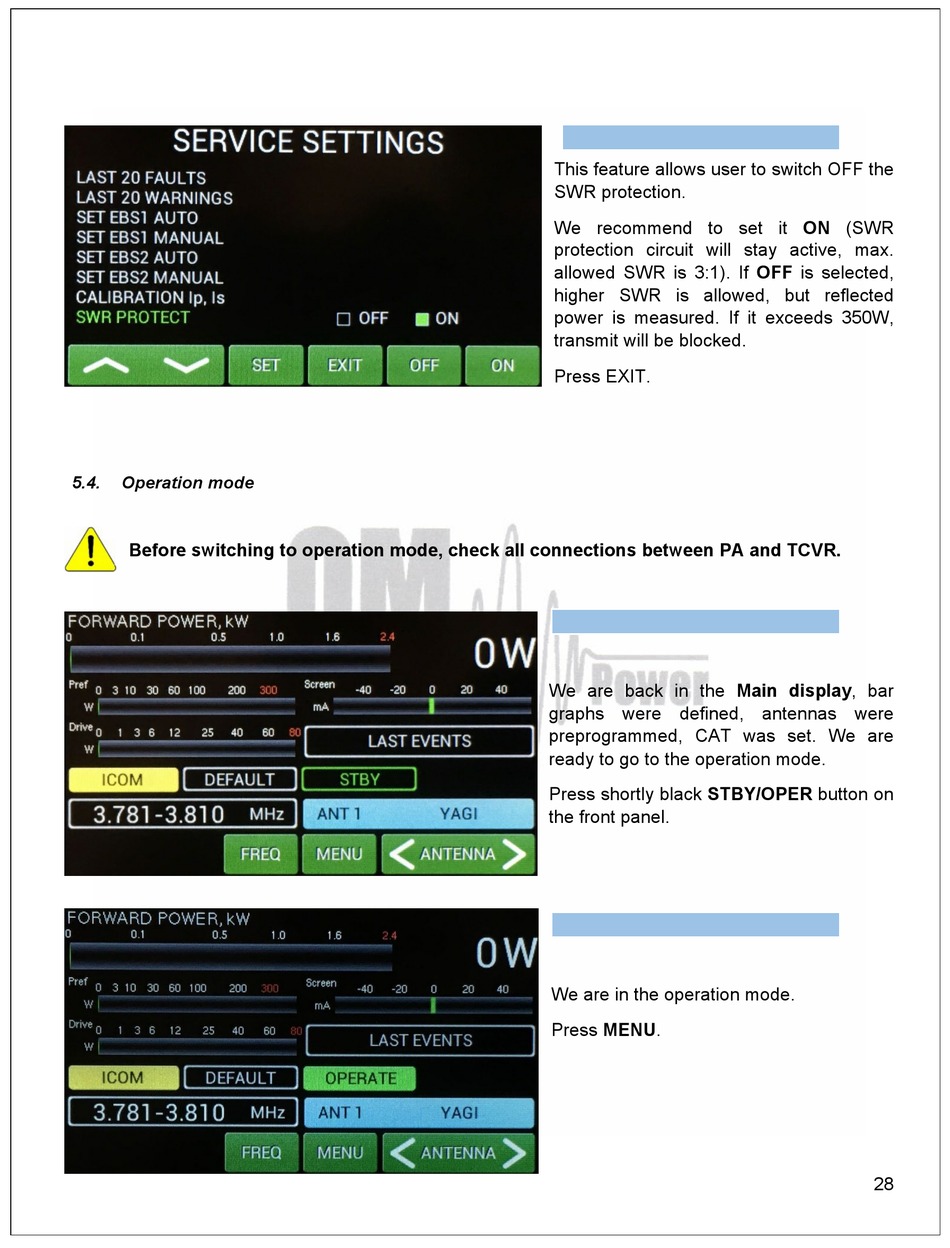

5.4.

Operation mode

Before switching to operation mode, check all connections between PA and TCVR.
This feature allows user to switch OFF the
SWR protection.
Type of supported TCVR and
We recommend to set it ON (SWR
protection circuit will stay active, max.
frequency are visible on the
allowed SWR is 3:1). If OFF is selected,
higher SWR is allowed, but reflected
power is measured. If it exceeds 350W,
transmit will be blocked.
AUTO LED is ON.
Press EXIT.
We are back in the Main display, bar
Type of supported TCVR and
graphs were defined, antennas were
preprogrammed, CAT was set. We are
frequency are visible on the
ready to go to the operation mode.
Press shortly black STBY/OPER button on
the front panel.
AUTO LED is ON.
We are in the operation mode.
Type of supported TCVR and
Press MENU.
frequency are visible on the
AUTO LED is ON.
working
display.
working
display.
working
display.
