OM POWER OM2000A+ Instruction Manual page 9

Shortwave plus 50 mhz power amplifier

Hide thumbs Also See for OM2000A+:

Table of Contents

The output of the amplifier is a Pi-L circuit. The ceramic capacitor for TUNE and LOAD are divided.

This enables the amplifier to be tuned exactly and makes it possible to easily return to the previously

set positions after band changes.

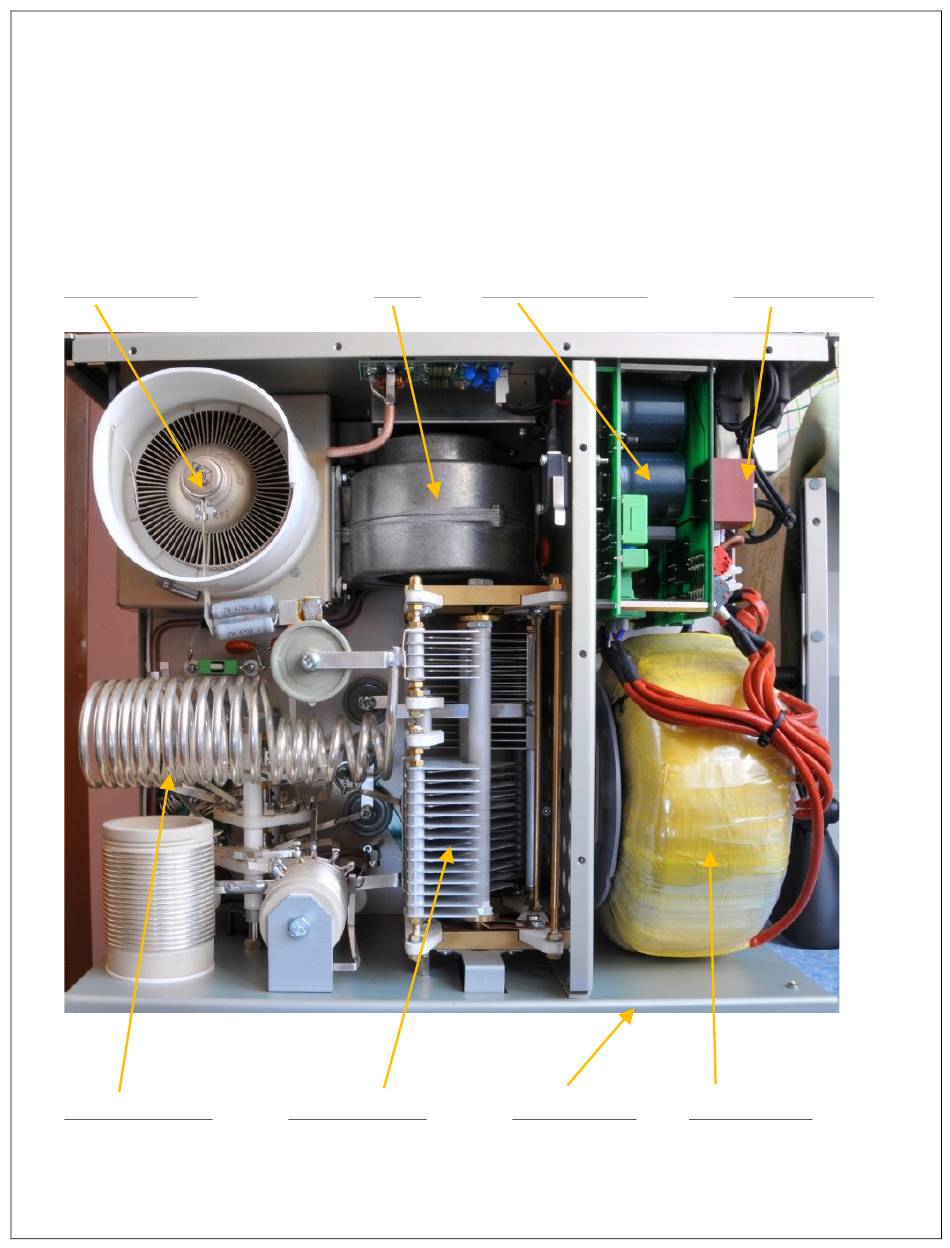

Top view on the opened OM2000A+

Tetrode FU728F

Blower

Power Supply Board

Switch-ON Board

Output Pi-L Circuit

Tuning Capacitor

Front Subpanel

HV transformer
