3.1.3 Accessories

Footprint brackets
The footprint bracket is an accessory used for mounting
flat-pack brake resistors.
Use the footprint bracket to mount the brake resistor at
the rear of the frequency converter. Once mounted, the
combined brake resistor and frequency converter occupy
the same space in the cabinet as the frequency converter
alone.
1 Frequency converter
2 Footprint mounting bracket
3 Flat-pack brake resistor

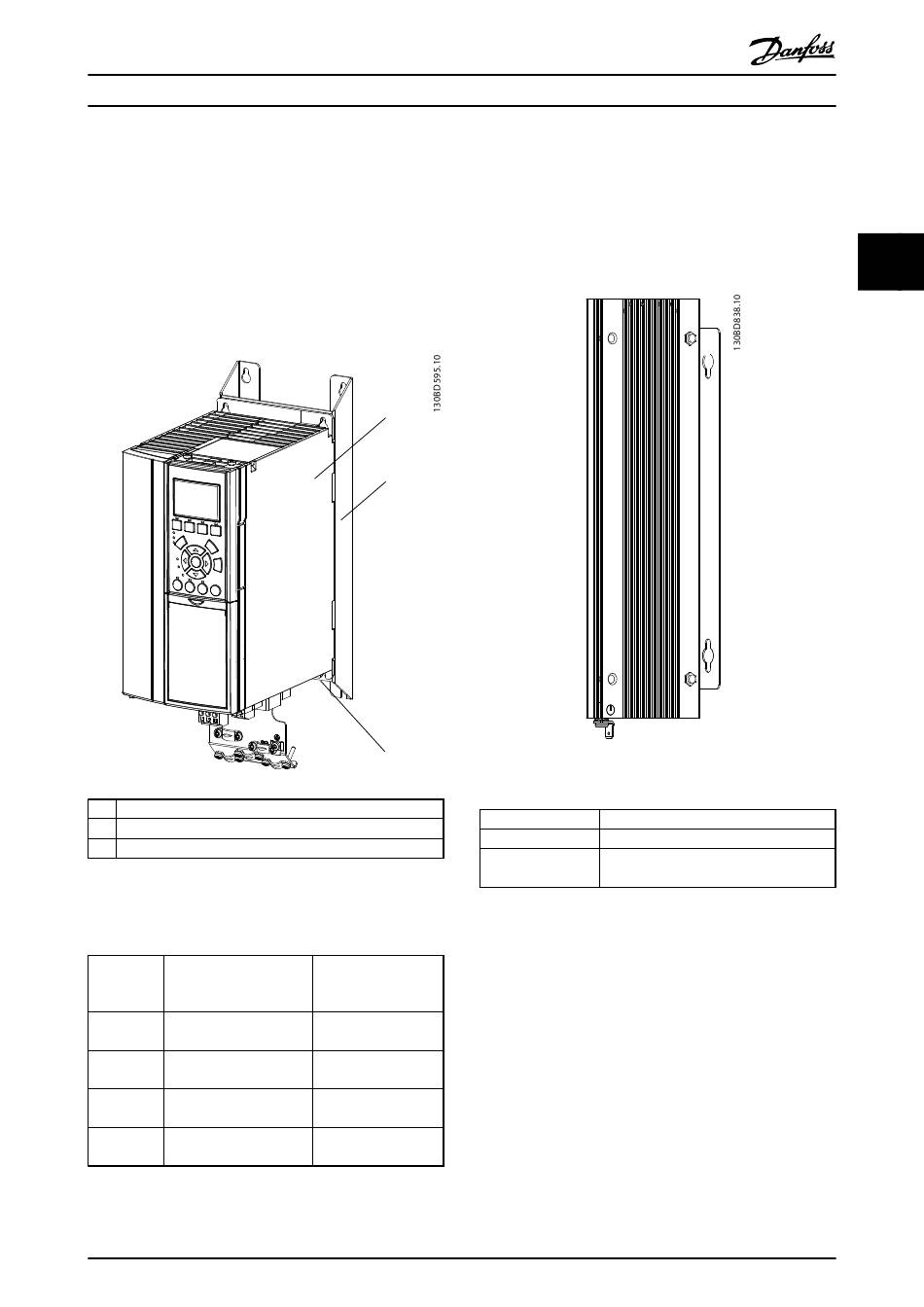

Illustration 3.13 Flat-pack Brake Resistor mounted at Rear of
Frequency Converter
Part number Compatible brake resistor Compatible frequency
1x100 W flat-pack
175U0085
1x200 W flat-pack
2x100 W flat-pack
175U0087
2x200 W flat-pack
2x100 W flat-pack
175U0086
2x200 W flat-pack
1x100 W flat-pack
175U0088
1x200 W flat-pack
Table 3.1 Selection Table
MG90O202
Design Guide
For mechanical dimensions for footprint brackets, see
chapter 9.8.2 Mounting Brackets: Footprint.
L profile brackets
The L profile bracket is an accessory used for mounting
flat-pack brake resistors. The L profile brackets support
both horizontally and vertically mounting on a fixed
surface optimising the required footprint.
1
2
3
Illustration 3.14 L Profile Bracket
Part number
175U0009
175U0011
Table 3.2
1) Order 2x175U0011 for 300 W flat-pack brake resistors.
For mechanical dimensions for L profile brackets, see
chapter 9.8.1 Mounting Brackets: L Profile
converter enclosure
size
A2
A2
A3
A3
