Danfoss VLT Brake Resistor MCE 101 Design Manual page 87

Specifications
1
1 Torque: 1-1.4 Nm (8.86-12.34 lb-in)

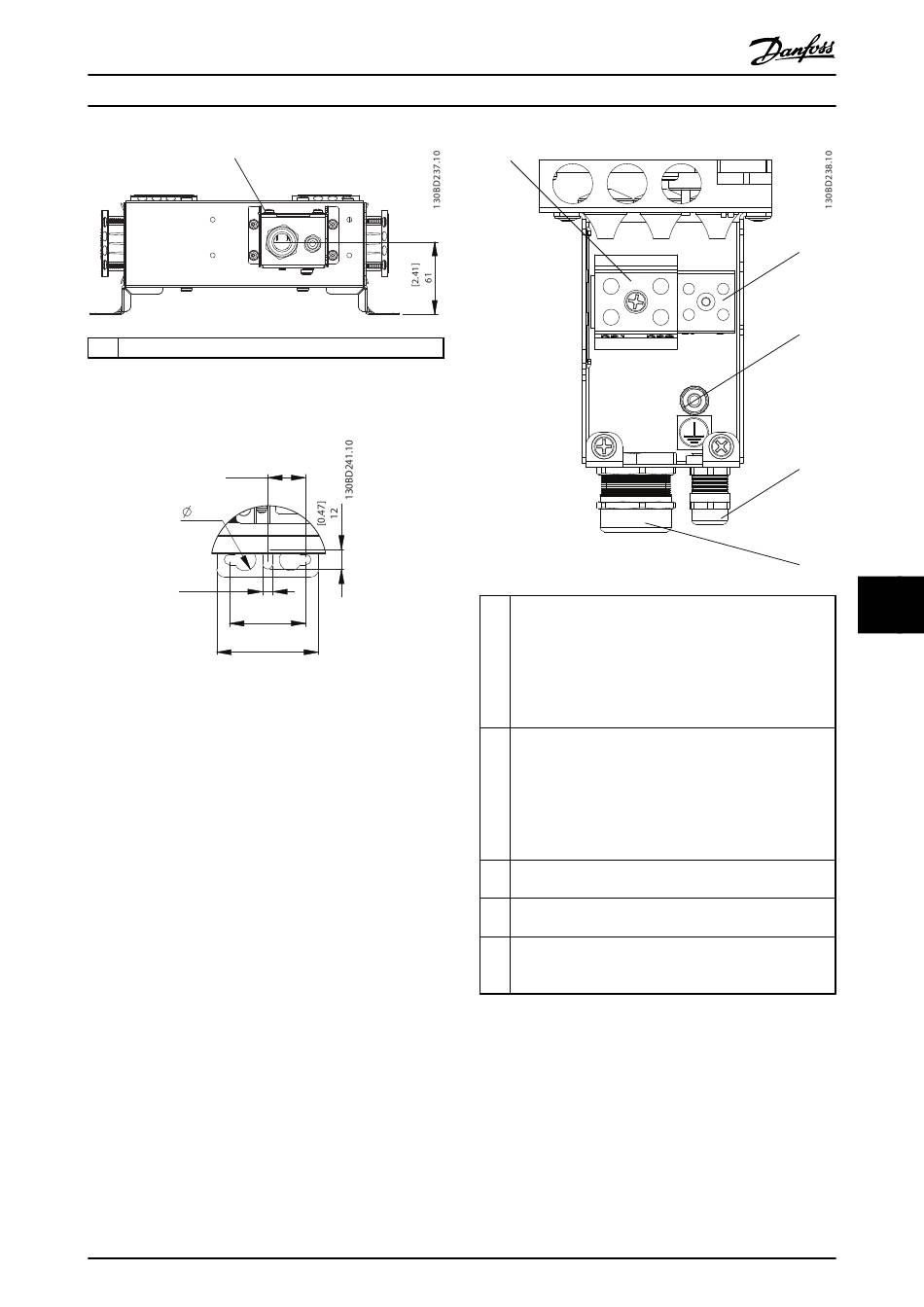

Illustration 9.2 IP21, End View, Connection Box
[0.94]
24
[0.55]
14
[0.26]
6.5
[1.89]
48
[2.52]
64
Illustration 9.3 Mounting Hole
MG90O202
Design Guide
1
1 Resistor connection:
Marked RB1/RB2
Type: Phoenix G10/2
IEC: 0.5-10 mm
UL: AWG 20–6/600 V
Wire Stripping: 12 mm (0.47 in)
Torque: 1.5-1.8 Nm (13.28-15.94 lb-in)
2 Temperature switch connection
Marked: T1/T2
Type: Phoenix G5/2 with screw connection
IEC: 0.2–4 mm
UL: AWG 24-12 /300 V
Wire Stripping: 8 mm (0.31 in)
Torque: 0.7 Nm (6.2 lb-in)
3 PE: M5
Torque 2–2.7 Nm (17.71-23.91 lb-in)
4 For temperature switch cable:
Clamping Range: 3.5-7.0 mm (0.14-0.28 lb-in)
5 For resistor cable:
Cable gland with internal connection for braid
Clamping Range: 9.0-16.5 mm (0.35-0.65 lb-in)
Illustration 9.4 Connection Box
Danfoss A/S © Rev. 05/2014 All rights reserved.
2
/800 V
2
/500 V
2
3
4
5
9 9
