Danfoss VLT Brake Resistor MCE 101 Design Manual page 111

Specifications
9.7.11 Figure 11 - 917CM25
45 [1.8]
14
4
3
30 [1.2]

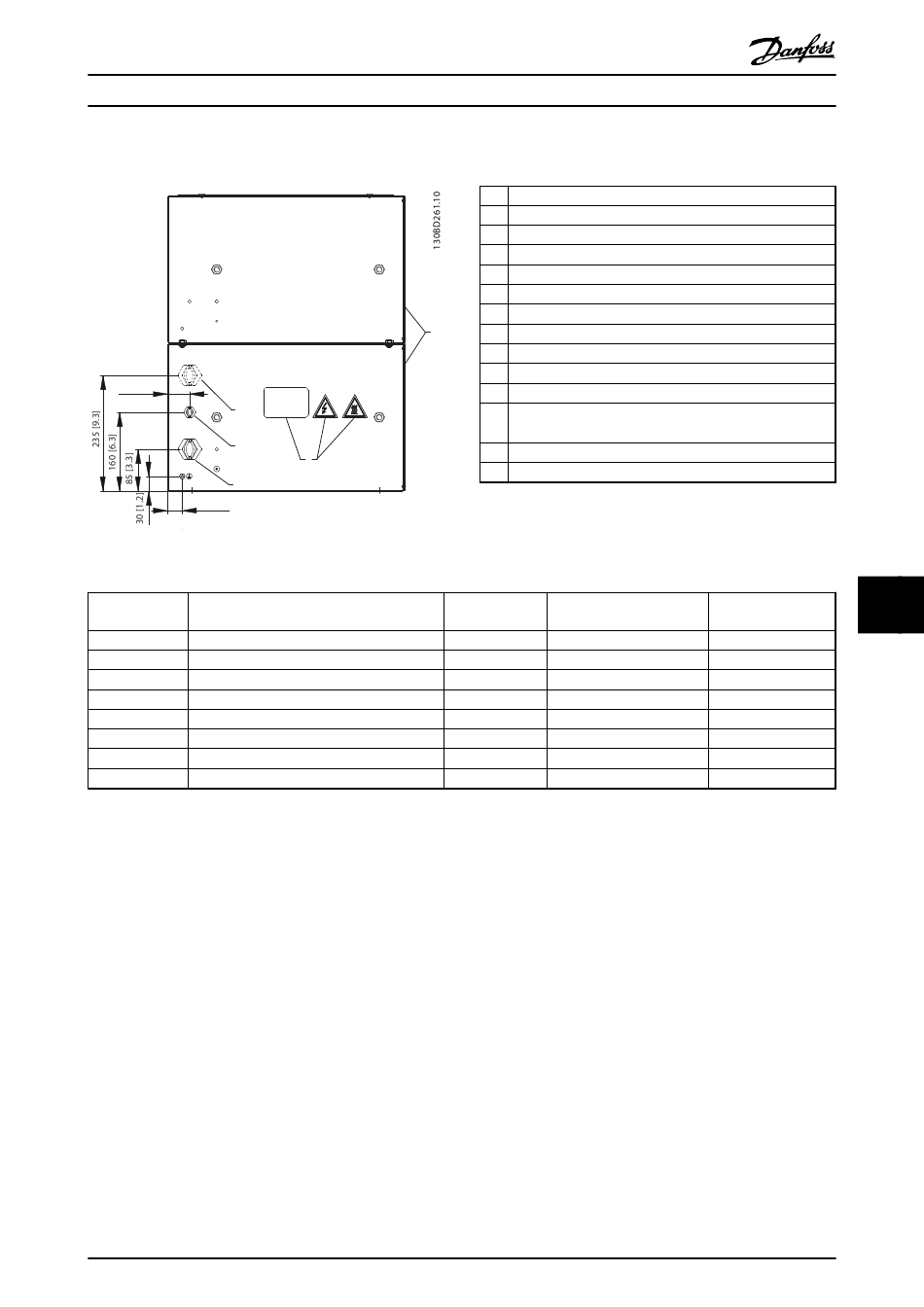

Illustration 9.54 IP20, Side View, Right
Danfoss P/N
175u3078 MCE101C5R00P16K0E20BAW
175u3082 MCE101C4R00P20K0E20BAW
175u3088 MCE101C2R70P16K0E20BAW
175u3091 MCE101C2R10P20K0E20BAW
175u3202 MCE101C22K0P17K0E20BAW
175u3207 MCE101C14R0P17K0E20BAW
175u3210 MCE101C12R0P17K0E20BAW
175u3227 MCE101C2R80P17K0E20BAW
Table 9.22 Mechanical Dimensions
MG90O202
Design Guide
8
175Uxxxx
6
Type code
Danfoss A/S © Rev. 05/2014 All rights reserved.
1 Resistor
2 Terminal board, see Illustration 9.57
3 Cable gland for load cables
4 Cable gland M16 temperature switch cable
5 Grounding bolt M6
6 Name plate/warnings signs
7 Front cover IP20
8 Rear cover IP20
9 Top cover IP20
Temperature switch 260 °C (NC)
10
11 Load connection, 2x bolt M8
12 Auxiliary connection for temperature switch, porcelain
2
clamp 2.5 mm
13 4x fixing hole Ø 9 mm
14 Second cable gland. Not in use
Table 9.21 Legend to Illustration 9.54 to Illustration 9.58
Cable gland type for load
Resistance [Ω]
terminals
5.0 2xM25
4.0 2xM32
2.7 2xM32
2.1 2xM40
22.0 M25
14.0 M32
12.0 M32
2.8 M40
9 9
Weight [kg]
35
37
35
37
35
35
35
35
109
