Rabbit RabbitCore RCM5400W User Manual page 68

Now select the
IP Address
2.

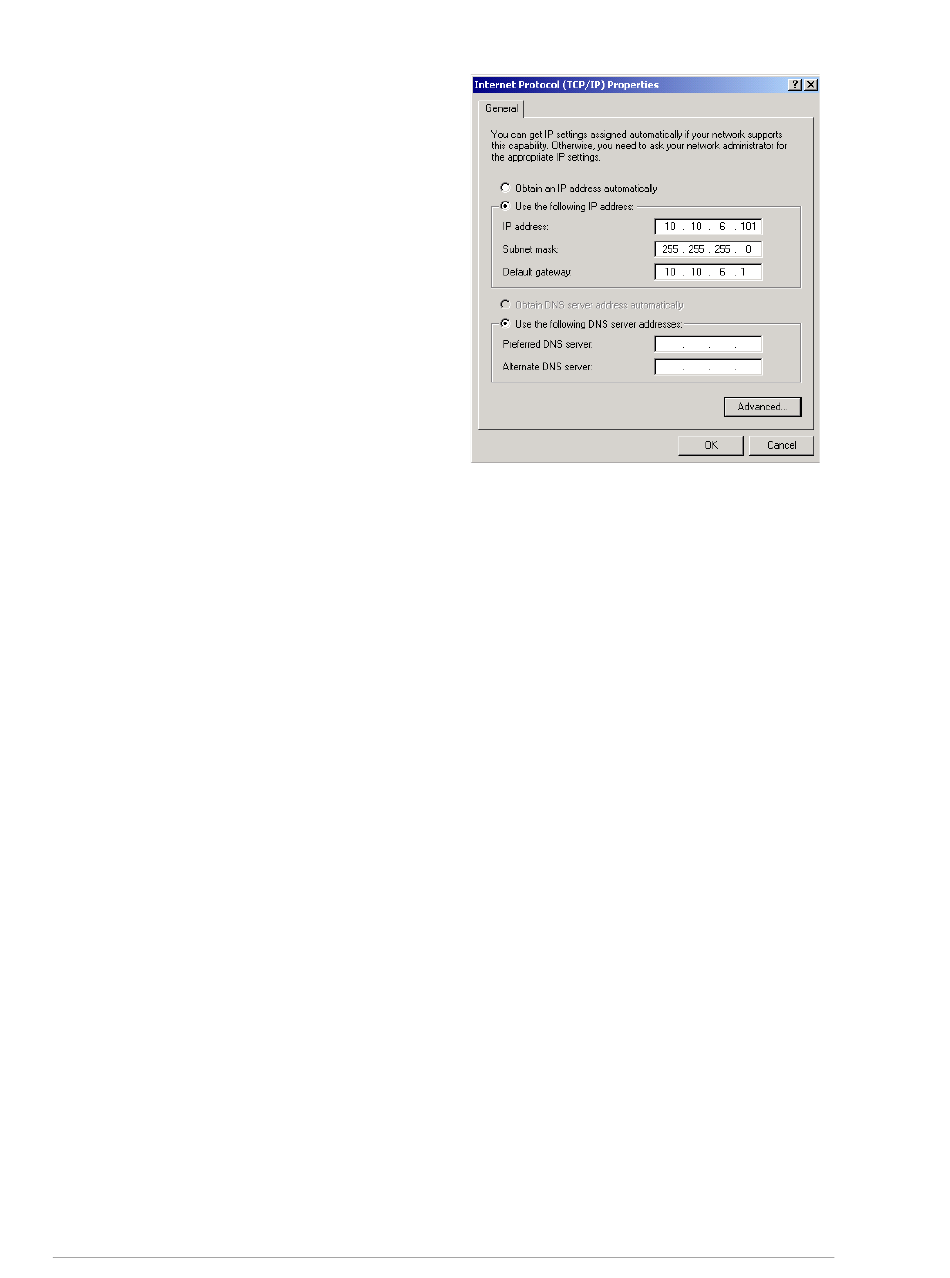

Specify an IP Address
and click on "Properties" to fill in the fol-
lowing fields:
IP Address : 10.10.6.101
Netmask : 255.255.255.0
Default gateway : 10.10.6.1
TIP: If you are using a PC that is already on
a network, you will disconnect the PC
from that network to run these sample
programs. Write down the existing set-
tings before changing them so that you
can restore them easily when you are fin-
ished with the sample programs.
The IP address and netmask need to be set
regardless of whether you will be using the
ad-hoc mode or the infrastructure mode.
3. Click or
<OK> <Close>
Infrastructure Mode (via wireless connection)
Set the IP address and netmask for your wireless-enabled PC or notebook as described in
Step 2 for Infrastructure Mode (via Ethernet connection)
Connections , then on
Connection to select the wireless network you will be connecting to. Once a sample
program is running, you will be able to select the network from a list of available networks.
You will have to set your wireless network name with the access point SSID macro for the
infrastructure mode as explained in Section 6.3, "Dynamic C Wi-Fi Configurations."
Ad-Hoc Mode
Set the IP address and netmask for your wireless-enabled PC or notebook as described in
Step 2 for
Infrastructure Mode (via Ethernet connection)
, then on
Connections
to select the wireless network you will be connecting to. Once a sample
Connection
program is running, you will be able to select the network from a list of available networks.
You will have set your wireless network name with the Wi-Fi channel macros for the ad-
hoc mode as explained in Section 6.3, "Dynamic C Wi-Fi Configurations."
62
tab, and check
, or select TCP/IP
to exit the various dialog boxes.
Local Area Connection
Local Area Connection
by clicking on
. Now click on Wireless Network
by clicking on
. Now click on
Wireless Network
RabbitCore RCM5400W
Network
Network
