A.1.1 Antenna
The RCM5400W Development Kit includes a 2.4 GHz (+2 dB) dipole antenna whose
dimensions are shown in Figure A-3.
0.28
(7.2)
0.39
(10.0)

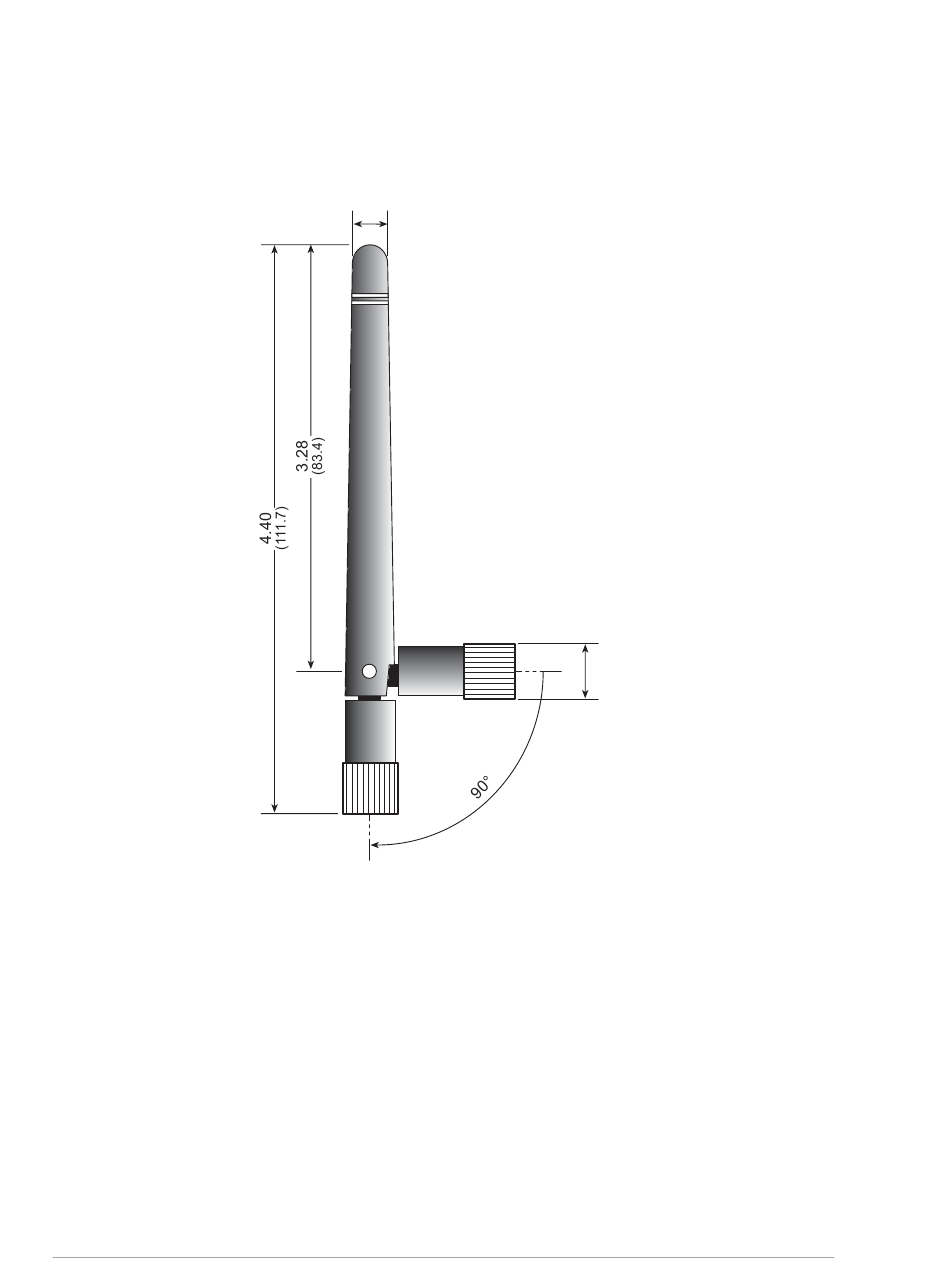

Figure A-3. RCM5400W Development Kit Dipole Antenna
NOTE: All measurements are in inches followed by millimeters enclosed in parentheses.
All dimensions have a manufacturing tolerance of ±0.01" (0.25 mm).
82
RabbitCore RCM5400W
