SPHINX Project Eighteen Service Manual

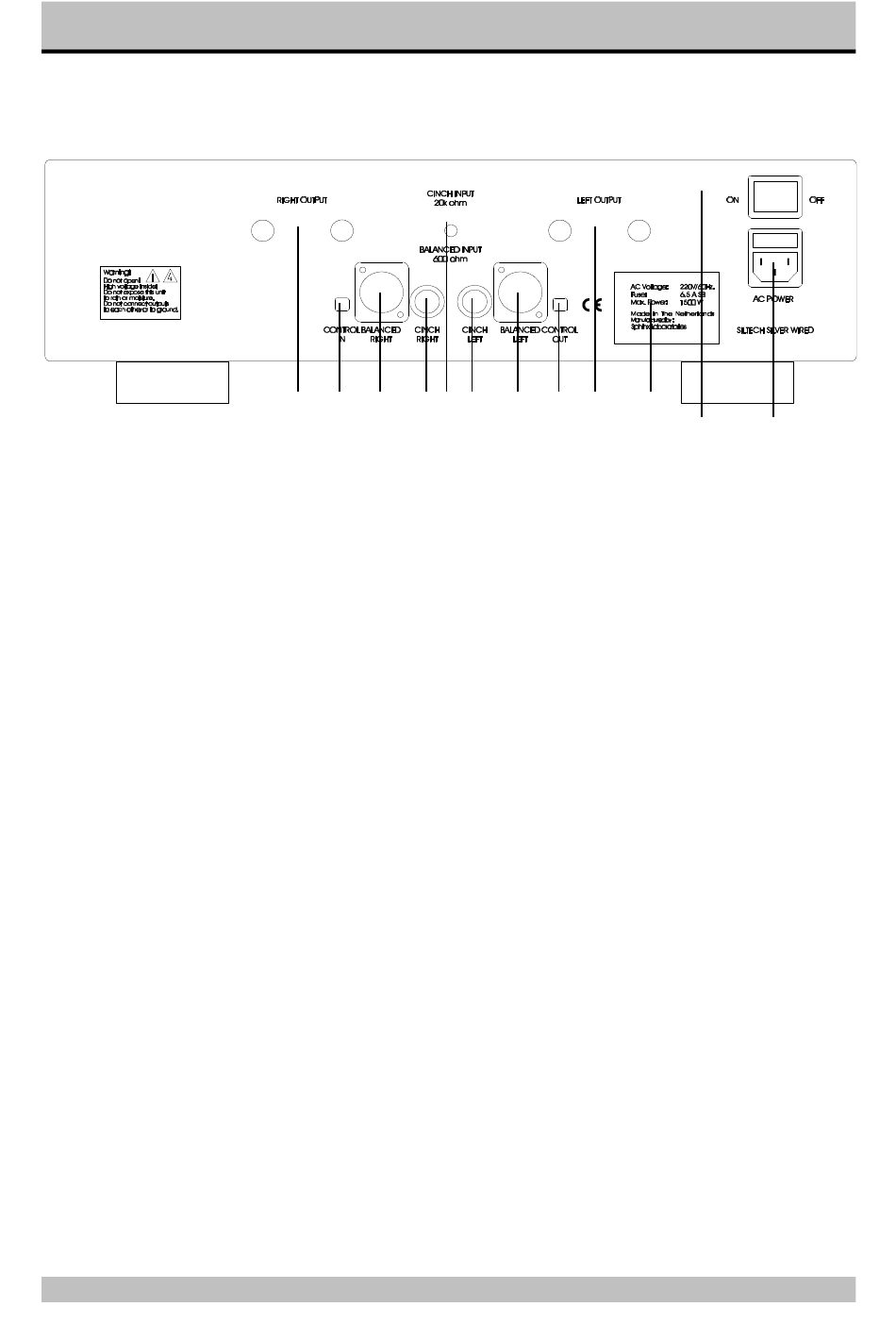

Rear panel
3.
RIGHT OUTPUT: To connect the cable from the
right loudspeaker:
red
+
white
-
4.
CONTROL IN: To connect the optical cable
from another Sphinx component like a pre-amp.
5.
BALANCED RIGHT: To connect the XLR cable
(balanced cable) from the right output of the
signal source.
6.
CINCH RIGHT: To connect the cinch cable from
the right output of the signal source.
7.
CINCH/BALANCED INPUT: With this switch
you may select between the inputs:
up
unbalanced (6 and 8)
down
balanced (5 and 9)
3
4
5
6 7 8
9
10
11
8.
CINCH LEFT: To connect the cinch cable from
the left output of the signal source.
9.
BALANCED LEFT: To connect the XLR cable
(balanced cable) from the left output of the
signal source.
10. CONTROL OUT: To connect the optical cable
going to another Sphinx component.
11. LEFT OUTPUT: To connect the cable from the
left loudspeaker:
red
+
white
-
12. ON/OFF: This is the mains power switch.
13. AC POWER: Connect the power amp to a
mains outlet (230 - 240 VAC).
The mains fuse is placed behind the cover.
14. Manufacturer's label: This shows important
data for the component, such as serial number
and mains power voltage.
14
12
13
5
