SPHINX Project Two Mk2

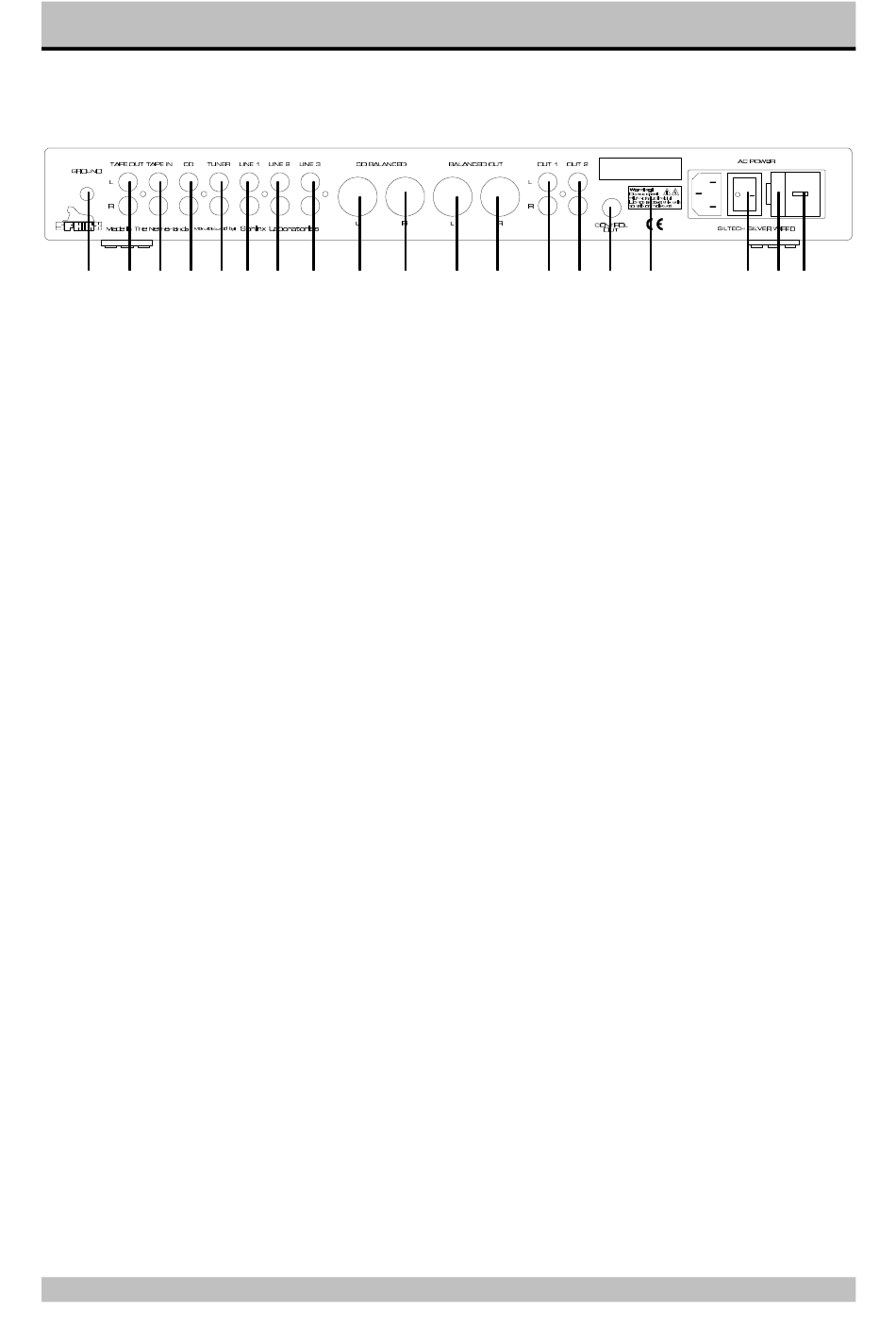

Rear panel

9 10 11 12 13 14 15
9. GROUND: You may directly connect the signal
grounds of other equipment to the signal
ground of the Project Two Mk2.
10. TAPE OUT: Connect this output to the input of
the recorder.
11. TAPE IN: Connect this input to the output of
the recorder.
12. CD: To connect the cinch signal cable from the
CD player.
13. TUNER: To connect the cinch signal cable from
the tuner.
14. LINE 1: To connect the cinch signal cable from
the signal source for LINE 1.
15. LINE 2: To connect the cinch signal cable from
the signal source for LINE 2.
16. LINE 3: To connect the cinch signal cable from
the signal source for LINE 3.
17. CD BALANCED L: To connect the XLR signal
cable (balanced cable) from the left output of
the CD player.
18. CD BALANCED R: To connect the XLR signal
cable (balanced cable) from the right output of
the CD player.
16 17 18 19
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
Service Manual
20 21 22 23 24
BALANCED OUT L: To connect the XLR
signal cable (balanced cable) from the left input
of the power amp.
BALANCED OUT R: To connect the XLR
signal cable (balanced cable) from the right
input of the power amp.
OUT 1 L+R: Connect this output with a cinch
signal cable to the input of your power amp.
OUT 2 L+R: To connect the XLR signal cable
(balanced cable) from the right input of the
extra power amp or surround processor.
Control Out: To connect the optical cable
going to another Sphinx component.
Warning!: This shows important information
about the safety regulations for the
Project Two Mk2.
AC Power: Connect the mains cable to a
mains power outlet (230 - 240 VAC).
O / I: This is the mains power switch.
Fuse holder: Contains a fuse (500 mA slow).
Selector for power supply voltage (120/240
V), (115/230 V).
25 26 27 28
