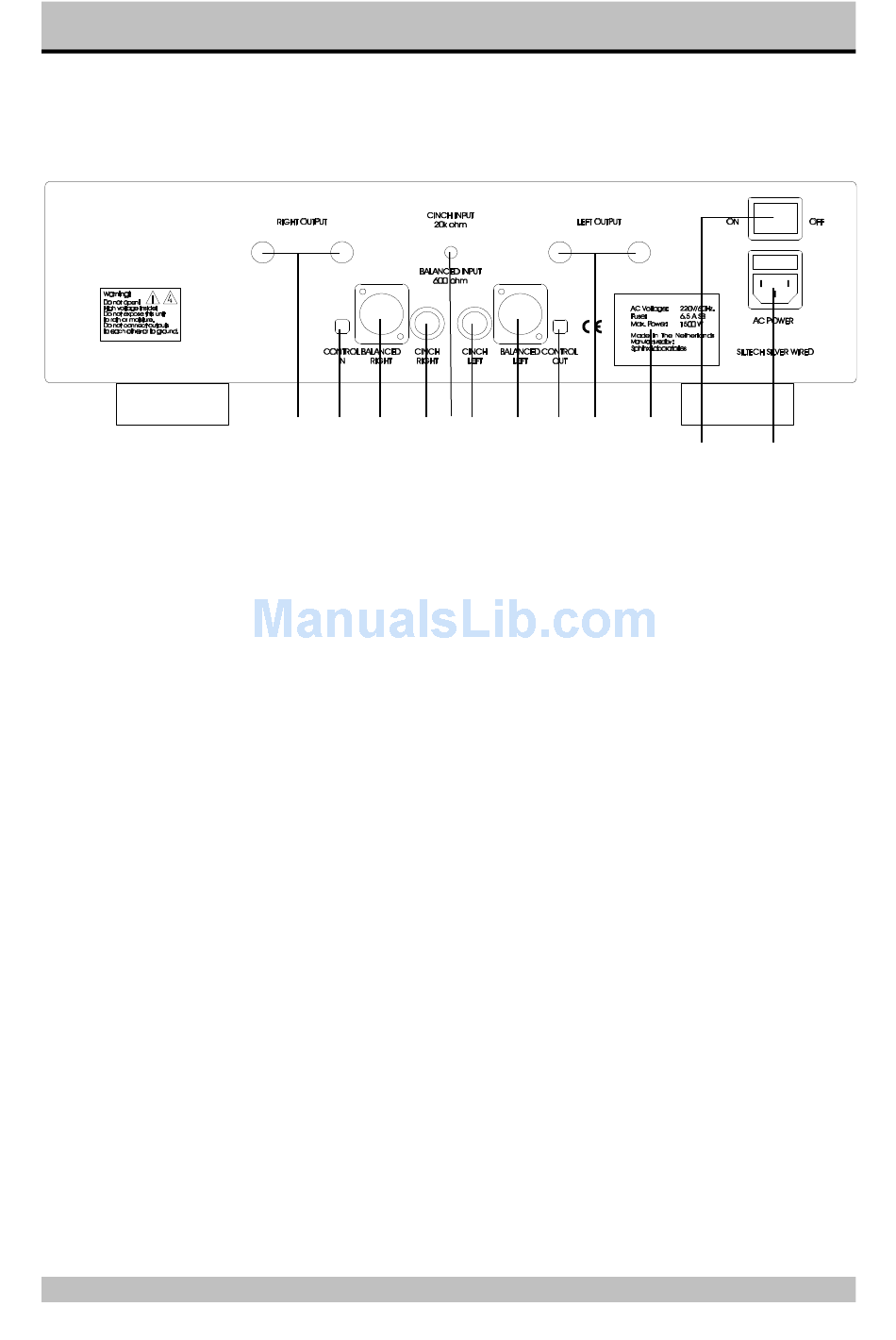

Rear panel

3. RIGHT OUTPUT: To connect the cable from the
right loudspeaker:
red +
white -
4. CONTROL IN: To connect the optical cable
coming from another Sphinx component like a
pre-amp.
5. BALANCED RIGHT: To connect the XLR cable
(balanced cable) from the right output of the
signal source.
6. CINCH RIGHT: To connect the cinch cable from
the right output of the signal source.
7. CINCH/BALANCED INPUT: With this switch
you may select between the inputs:
up unbalanced (6 and 8)
down balanced (5 and 9)
8. CINCH LEFT: To connect the cinch cable from
the left output of the signal source.
SPHINX
7 8
3 4 5 6
Project Eighteen
9 10 11
9. BALANCED LEFT: To connect the XLR cable
(balanced cable) from the left output of the
signal source.
10. CONTROL OUT: To connect the optical cable
going to another Sphinx component.
11. LEFT OUTPUT: To connect the cable from the
left loudspeaker:
red +
white -
12. ON/OFF: This is the mains power master
switch.
13. AC POWER: Connect the power amp with the
cord to a mains outlet (230 - 240 VAC).
The mains fuse is placed behind the cover.
14. Manufacturer's label: Here you'll find important
data of this component such as serial number
and mains voltage to be used.
14
12 13
