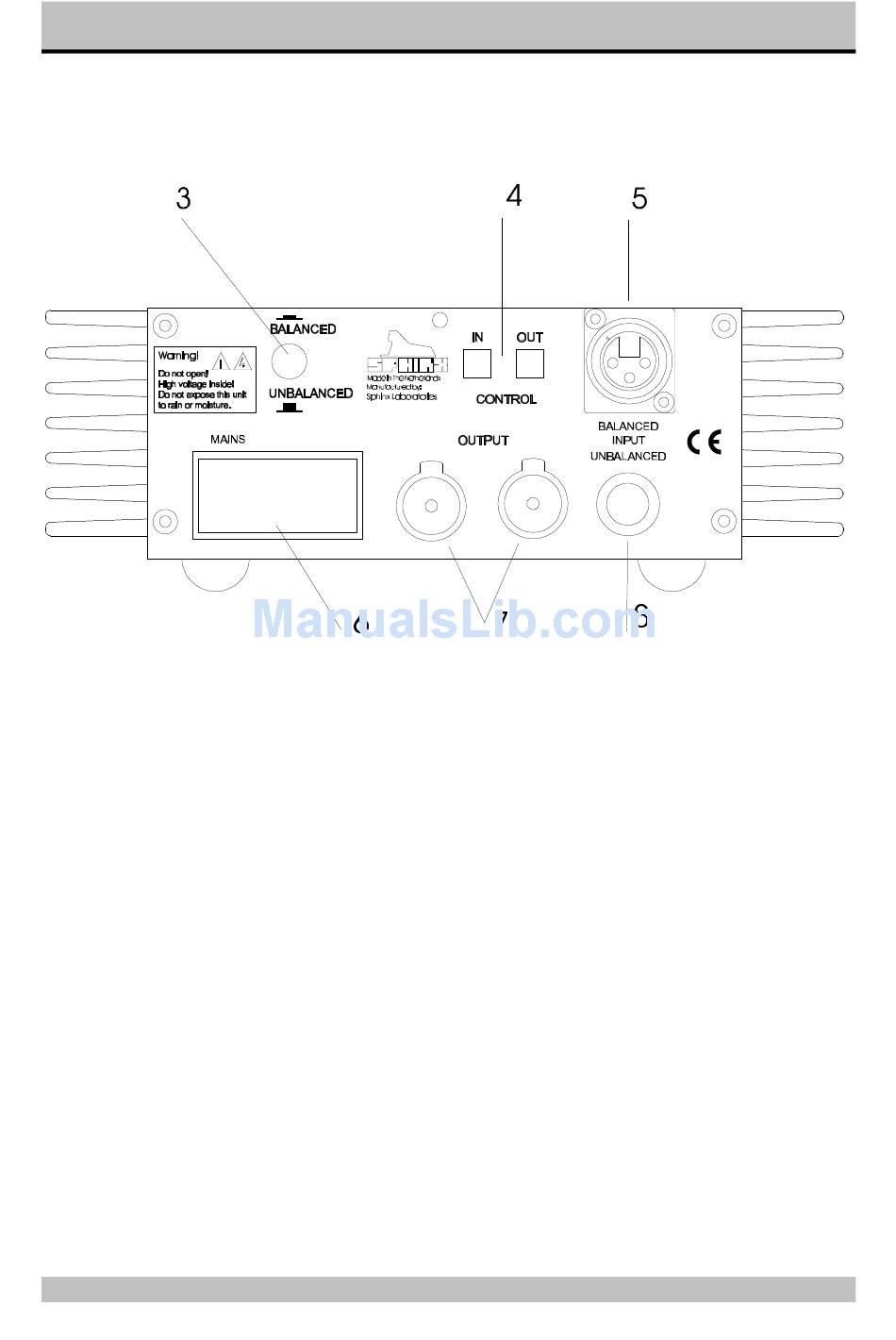

Rear panel
1.
BALANCED/UNBALANCED: With this switch
you may select the input (4.) to balanced
(switch IN) or unbalanced.
2.
CONTROL IN: To connect the optical cable
from another Sphinx component like a pre-amp.
CONTROL OUT: To connect the optical cable
that goes to another Sphinx component.
3.
XLR input: To connect the XLR cable from the
pre-amp output.
SPHINX
4.
POWER: This is the mains master switch.
MAINS: To connect the power amp to a mains
outlet (230 - 240 VAC).
5.
OUTPUT: To connect the cable from the
loudspeaker:
red
white
6.
Cinch: To connect the cinch cable from the pre-
amp output.
Project Twelve
+
-
5
