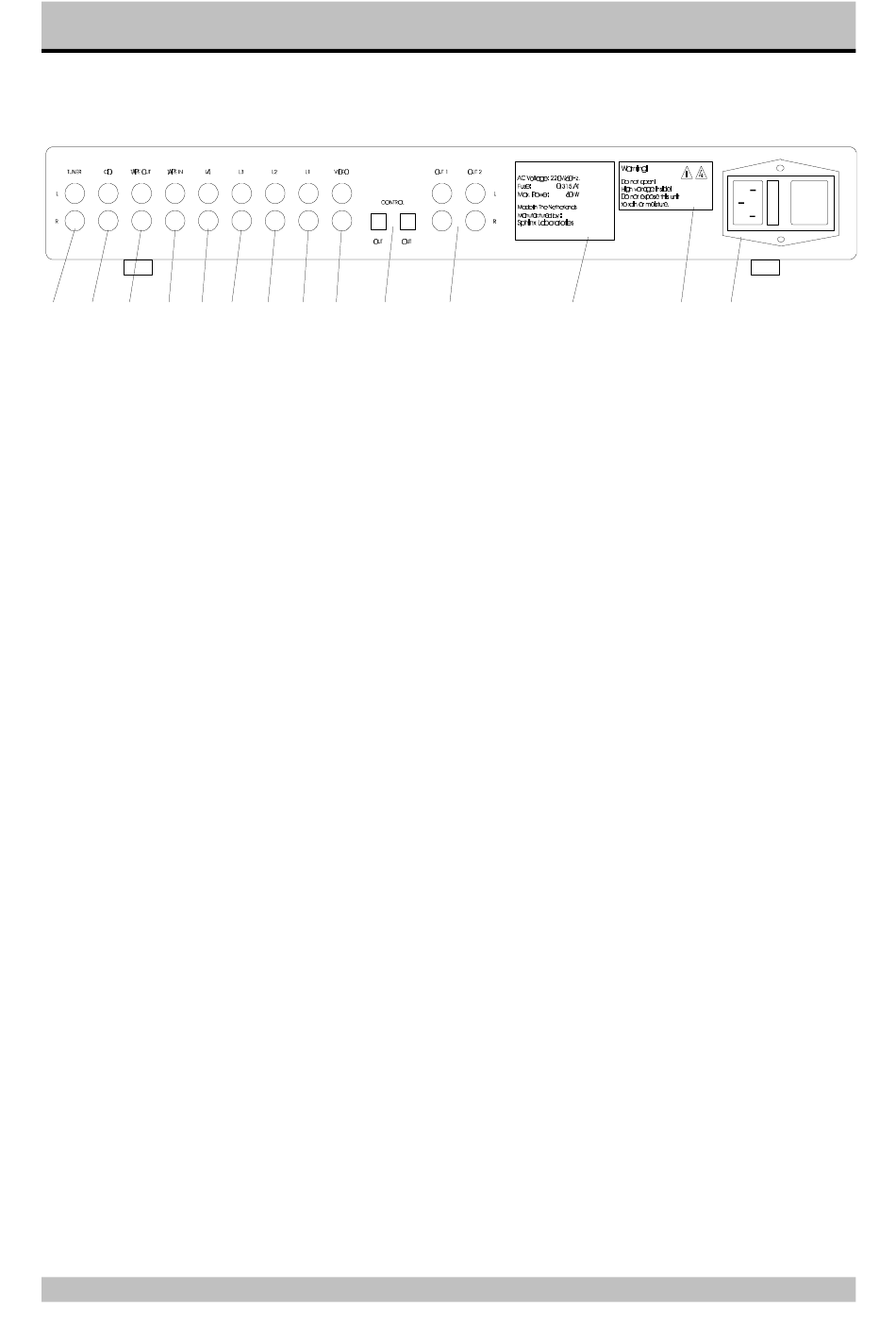

Rear panel

1 2 3 4
5
1. TUNER: To connect the signal cable from the
tuner.
2. CD: To connect the signal cable from the CD
player.
3. TAPE OUT: Connect this output to the input of
the recorder.
4. TAPE IN: Connect this input to the output of the
recorder.
5. LINE 4: To connect the signal cable from the
signal source for LINE 4.
6. LINE 3: To connect the signal cable from the
signal source for LINE 3.
7. LINE 2: To connect the signal cable from the
signal source for LINE 2.
8. LINE 1: To connect the signal cable from the
signal source for LINE 1.
9. VIDEO: To connect the signal cable from the
audio output of the video source.
9
6 7 8
10
Service Manual
11 12
10. Control Out: To connect the optical cable(s) to
other Sphinx component(s).
11. OUT 1 /2 L+R: Connect this output with a signal
cable to the input of your power amp.
12. Manufacturer's label: This shows important
data for the component, such as serial number
and mains power voltage.
13. Warning!: This shows important information
about the safety regulations for the Myth 1.
14. AC Power: Connect the mains cable to a mains
power outlet (100 - 240 VAC).
The mains fuse is placed behind the cover.
Here you also find the mains power switch O / I.
13 14
