Summary of Contents for SPHINX Myth 1
-

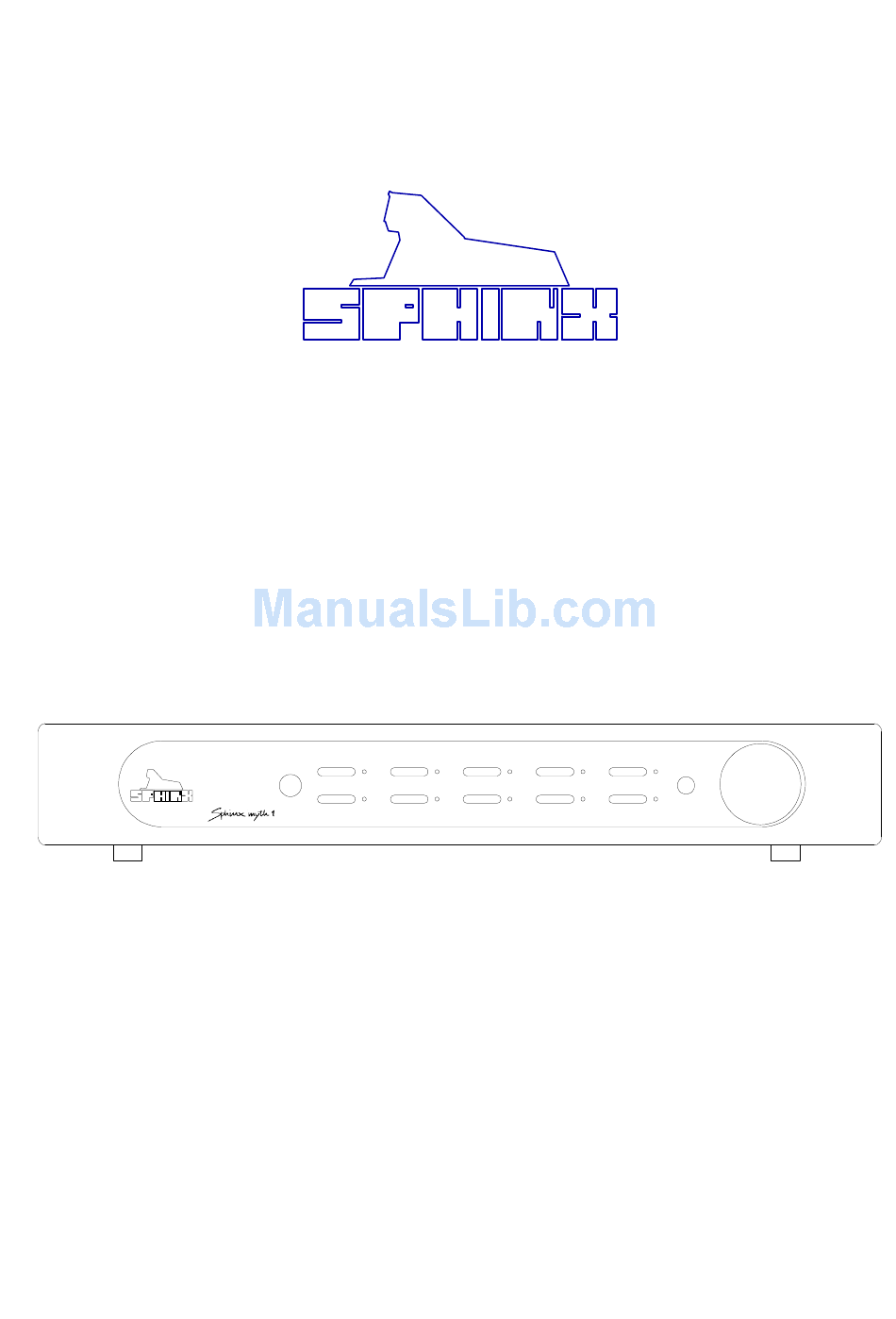

Page 1: User Manual
USER MANUAL MYTH 1 PRE-AMP PHONES LINE 1 LINE 3 VIDEO MUTE TUNER LINE 2 LINE 4 TAPE / MON STANDBY... -
Page 2: Table Of Contents
SPHINX Myth 1 1. UNPACKING ............................3 2. SPHINX WARRANTY CARD ......................3 3. THE PRE-AMP AT A GLANCE......................4 Front panel..............................4 Rear panel ..............................5 4. INSTALLATION AND CONNECTIONS ....................6 Installation..............................6 Connecting the mains cable ........................6 Audio connections ............................6 Connecting the power amp .......................... -
Page 3: Unpacking
Designs that successfully have been used in the should still keep the packing materials. If you need award winning Project Eight. to transport your Myth 1 at a later time it will be best Such as the ultra-linear extremely low-noise protected by the original packing materials. -
Page 4: The Pre-Amp At A Glance

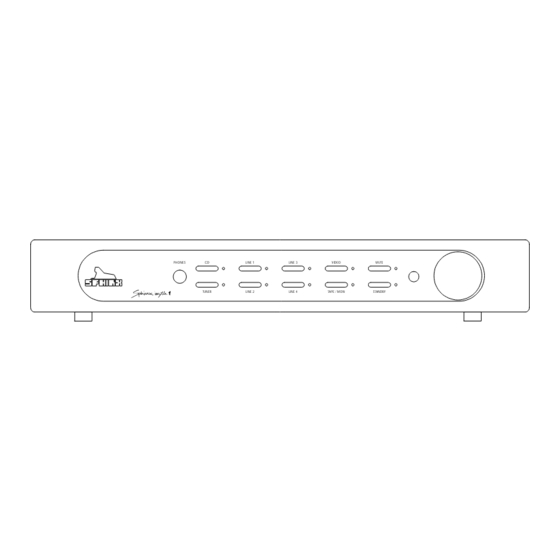

SPHINX Myth 1 3. THE PRE-AMP AT A GLANCE Front panel PHONES LINE 1 LINE 3 VIDEO MUTE TUNER LINE 2 LINE 4 TAPE / MON STANDBY CD: To select the CD input. The red LED will LINE 2: To select the Line 2 input. The red LED light. -
Page 5: Rear Panel
LINE 4: To connect the signal cable from the 13. Warning!: This shows important information signal source for LINE 4. about the safety regulations for the Myth 1. LINE 3: To connect the signal cable from the signal source for LINE 3. -
Page 6: Installation And Connections
4. INSTALLATION AND CONNECTIONS Installation Connecting the power amp The Myth 1 will not become very hot, so placement There are two outputs: OUT 1 and OUT 2. is not critical, although you should not place it on Both can be used simultaneously. -
Page 7: Connecting The Optical Cables
Sphinx components to stand-by. When the CONTROL IN of a component is connected to the CONTROL OUT of the Myth 1 with an optical cable, you do not have to use that component's ON/OFF switch. As soon as the Myth 1 is selected to stand-by the other component is also selected to stand-by. -
Page 8: Operation
Once you have finished connecting all components, selected it. You will hear a 'click'. This is caused by you can power on the Myth 1 with the mains switch the precision relays for the inputs: the 'old' one is O / I (29) . -
Page 9: Sphinx Remote Control
Myth 1 6. SPHINX REMOTE CONTROL This single Sphinx Remote Control lets you control all functions: not only of the Myth 1, but of all other Sphinx equipment. Only the following buttons and indications on the Remote apply to the Myth 1 (the others will not... -
Page 10: Operation
SPHINX Myth 1 Operation Encountering problems... The Sphinx Remote is used with several different models and can therefore transmit different control Remote Control does not work codes, depending on which model has been selected with the select buttons (1). Wrong component selected... -
Page 11: Care And Maintenance
This unit conforms to the EMC interference regulations issued by the EU and to the CE standards. This unit complies with safety regulation VDE 0860 and therefore with international safety regulation IEC 65. Technical specifications may be changed by SPHINX without prior notice if technical developments make this necessary.
