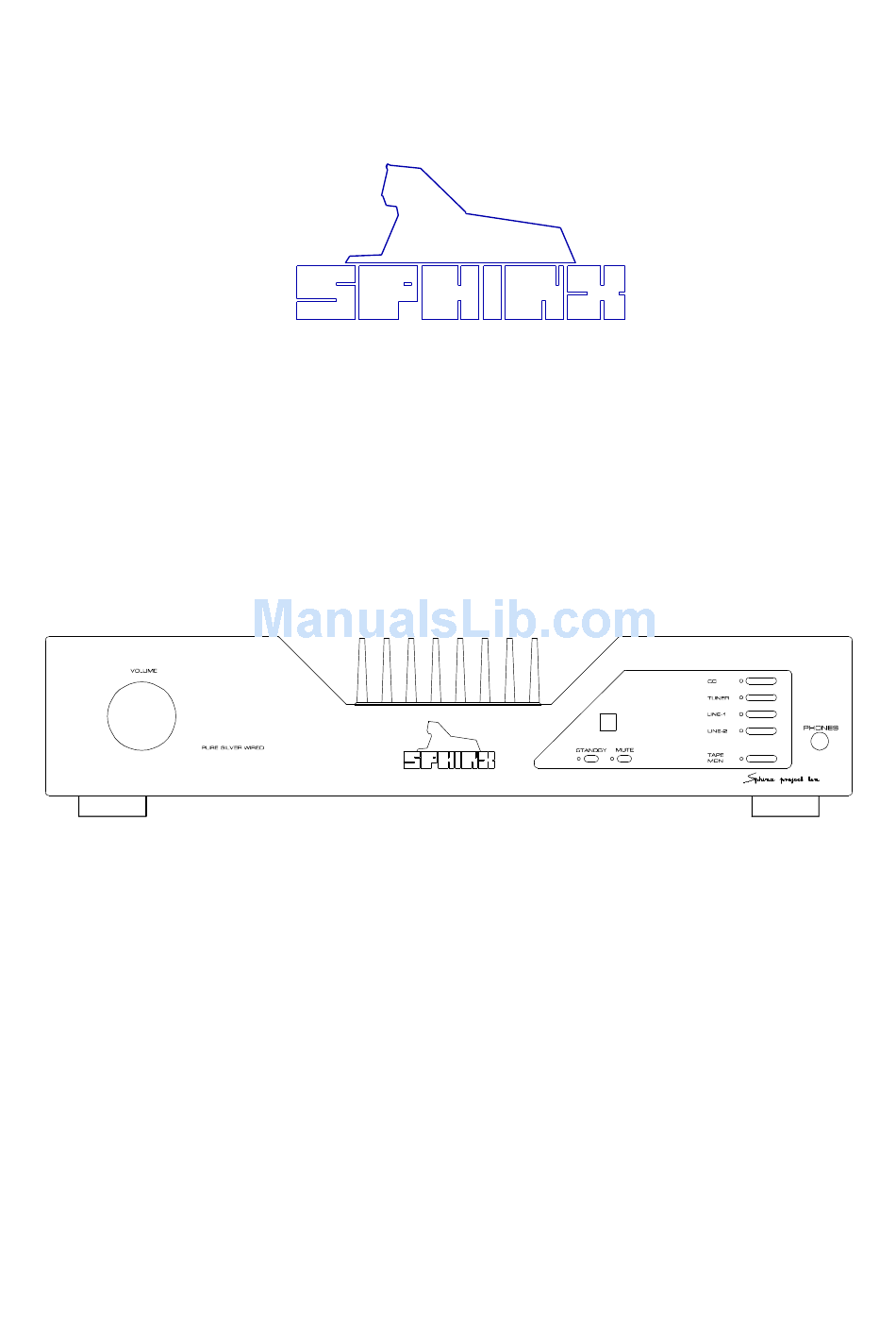

Page 1: User Manual
USER MANUAL PROJECT TEN INTEGRATED STEREO AMPLIFIER... -
Page 2: Table Of Contents
SPHINX Project Ten 1. UNPACKING..........................3 2. SPHINX WARRANTY CARD......................3 3. THE AMP AT A GLANCE ......................4 Front panel ............................4 Rear panel............................. 5 4. INSTALLATION AND CONNECTIONS..................6 Installation............................. 6 Connecting the mains cable........................6 Audio connections ..........................6 Connecting loudspeakers........................ -
Page 3: Unpacking
If you need input section it is of discrete design throughout (no to transport your Project Ten at a later time it will IC's are used). The pre-amp section is built around be best protected by the original packing materials. -
Page 4: The Amp At A Glance
SPHINX Project Ten 3. THE AMP AT A GLANCE Front panel 1. VOLUME: With this motor controlled knob you 5. CD: To select the CD input. may adjust the volume of the loudspeakers. 6. TUNER: To select the TUNER input. -
Page 5: Rear Panel
(balanced cable) from the left output of the signal source for input 2. 14. CONTROL OUT: To connect the optical cable going to another Sphinx components. 20. CINCH/BALANCED: This switch is to select the input connector for LINE 2: 15. -
Page 6: Installation And Connections
4. INSTALLATION AND CONNECTIONS Installation Make sure you connect L and R properly. Most Make sure you place the Project Ten on a stable cinch cables use red for the right channel and white and sturdy support, it weighs more than 12 kg! or black for left. -
Page 7: Connecting The Inputs
Connect the output of the recorder to the TAPE IN input (25.) When the CONTROL IN of a component is connected to the CONTROL OUT of the Project Ten Connecting a turntable with an optical cable you do not have to use that There is no specific RIAA phono-input. -
Page 8: Operation
Power on the sound level from the loudspeakers. This volume control is motor controlled. So even if You switch the Project Ten on with the ST ANDBY you adjust the volume on the remote control the button. knob will automatically turn. The position of the The LED will turn to green. -
Page 9: Sphinx Remote Control
Project Ten SPHINX REMOTE CONTROL This single Sphinx Remote Control lets you control all functions: not only of the Project Ten, but of all other Sphinx equipment. Only the following buttons and indications of the Remote apply to the Project Ten (the others will not... -
Page 10: Operation
SPHINX Project Ten Encountering problems... Operation The Sphinx Remote is used for several different Remote Control does not work models and can therefore transmit different control codes, depending on which model has been Wrong component selected Select the correct one selected with the select buttons (1.). -
Page 11: Care And Maintenance
This unit conforms to the EMC interference regulations from the EU and to the CE standards. This unit complies with safety regulation VDE 0860 and thus with international safety regulation IEC 65. Technical specifications can be changed by SPHINX without prior notice if technical developments make this necessary.
