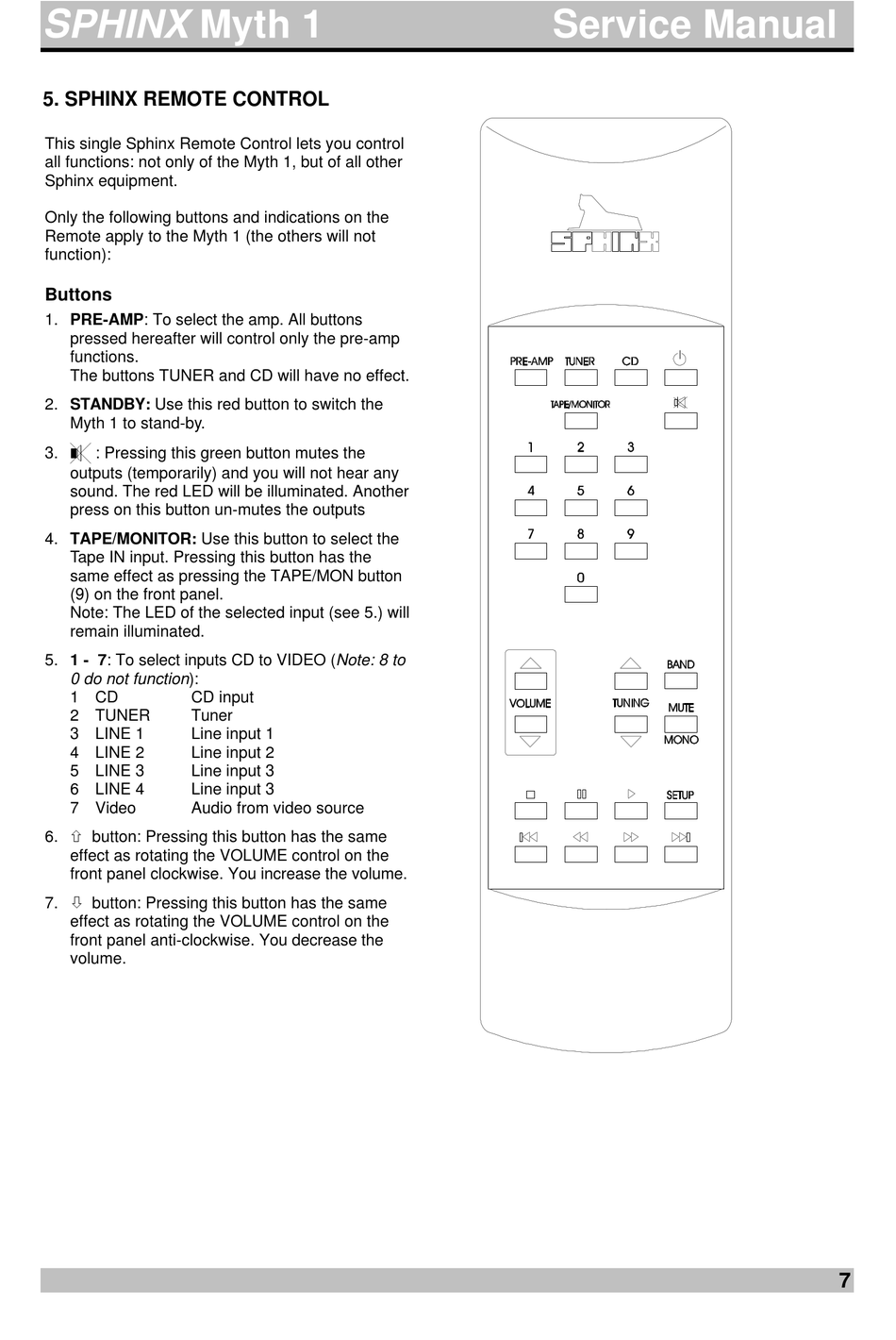

5. SPHINX REMOTE CONTROL

This single Sphinx Remote Control lets you control
all functions: not only of the Myth 1, but of all other
Sphinx equipment.
Only the following buttons and indications on the
Remote apply to the Myth 1 (the others will not
function):

Buttons

1. PRE-AMP: To select the amp. All buttons
pressed hereafter will control only the pre-amp
functions.
The buttons TUNER and CD will have no effect.
2. STANDBY: Use this red button to switch the
Myth 1 to stand-by.
3. : Pressing this green button mutes the
outputs (temporarily) and you will not hear any
sound. The red LED will be illuminated. Another
press on this button un-mutes the outputs
4. TAPE/MONITOR: Use this button to select the
Tape IN input. Pressing this button has the
same effect as pressing the TAPE/MON button
(9) on the front panel.
Note: The LED of the selected input (see 5.) will
remain illuminated.
5. 1 - 7: To select inputs CD to VIDEO (Note: 8 to
0 do not function):
1 CD CD input
2 TUNER Tuner
3 LINE 1 Line input 1
4 LINE 2 Line input 2
5 LINE 3 Line input 3
6 LINE 4 Line input 3
7 Video Audio from video source
6. ñ button: Pressing this button has the same
effect as rotating the VOLUME control on the
front panel clockwise. You increase the volume.
7. ò button: Pressing this button has the same
effect as rotating the VOLUME control on the
front panel anti-clockwise. You decrease the
volume.
